Instruction Manual for Kidzone 060-ROT-03 Ride On Retro Scooter 3 Wheels

Quick guide from the manual

This document provides essential assembly, safety, and operating instructions for the Kidzone 060-ROT-03 electric ride-on scooter. The product must be assembled by an adult. Key requirements include a 8-12 hour initial battery charge, a maximum weight capacity of 66 lb (30 kg), and the use of the vehicle only by children aged 3 years and older under constant adult supervision.

Safety and Warnings

• Adult Supervision: Continuous adult supervision is required. Never leave the child unattended.
• Environment: Use only on flat, hard surfaces. Do not operate near streets, roads, swimming pools, steep inclines, or in the dark.
• Electrical Safety: Do not immerse the charger or battery in water. Only use the provided charger and battery. Do not modify the electrical wiring.
• Usage Limits: Maximum weight is 66 lb (30 kg). Only one rider at a time. Not for children under 3 years old.
• Protective Gear: Always ensure the child wears a helmet and shoes.

Assembly

Estimated assembly time is 40 minutes. Tools required (not included): screwdriver, pliers, hammer, and spanner.

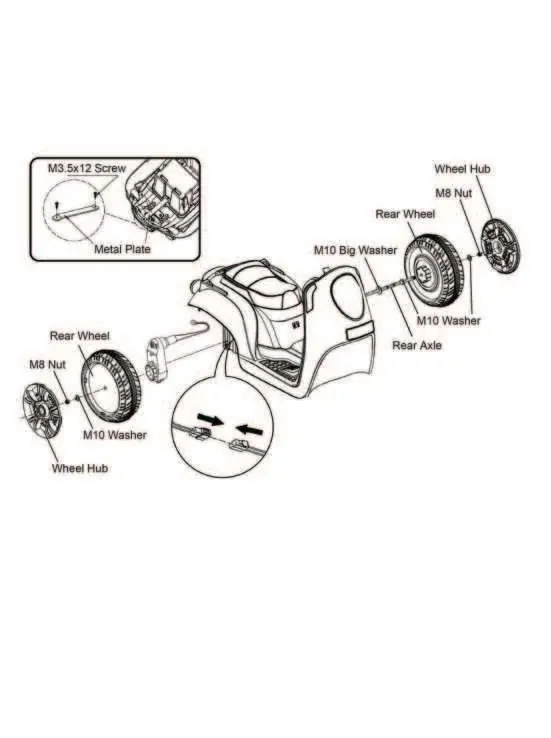

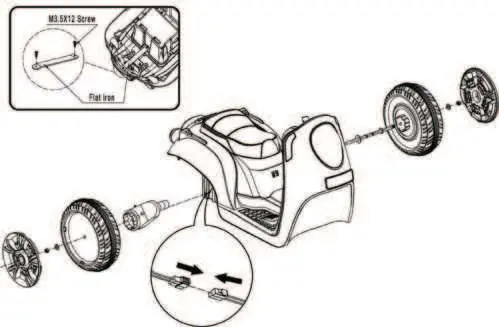

• Rear Wheels: Assemble the gear box, rear wheels, washers, and nuts onto the rear axle. Ensure there is a small gap between the axle thread and the wheel to allow smooth rotation.
• Front Wheel: Install the front wheel and mudguard onto the front fork using the provided axle parts.
• Handle: Secure the handle to the front axle using the M5 x 65 bolt and M5 nut. Note that the hand brakes are non-functional.
• Seat and Power: Connect the battery wire connector under the seat before securing the seat with the bolt.
• Toolbox: Attach the rear toolbox using the M3.5 x 12 screws.

Operating the vehicle

To operate the scooter:

• Insert the key into the power switch and turn it to the right to power on.
• Use the direction switch to select forward or backward movement.
• Press the foot pedal to move. Release the pedal to stop.
• Ensure the vehicle is at a complete stop before changing direction to prevent damage to the motor.
• Remove the key when not in use to prevent unauthorized operation.

Charging and Maintenance

The charging port is located under the seat. Always turn off the power switch before charging. Charge for 8-12 hours; do not exceed 20 hours. Charge at least once a month to maintain battery health. Regularly check for loose parts, cracked plastic, or damaged wires. Clean with a cloth and furniture polish; do not use abrasive cleaners or water hoses.

Troubleshooting

If the vehicle does not move, check the battery charge, ensure the battery is connected, or check for loose wheel nuts. If the vehicle stops due to overload, wait 10-15 seconds for the self-resetting fuse to reactivate. For persistent issues, contact customer service at 1(800) 946-6151.
