Game Of Bricks Light Kit for Volkswagen T1 Camper Van 10220
Installation guide for the Game Of Bricks LED lighting kit designed for the LEGO Volkswagen T1 Camper Van 10220, featuring step-by-step wiring instructions.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Game Of Bricks Light Kit for Volkswagen T1 Camper Van 10220 is a custom lighting solution designed to enhance your LEGO model. This kit includes high-quality, ultra-thin aviation-grade wires and LED components that integrate seamlessly into the brick structure, providing a professional hidden-line effect.
Safety and Installation Precautions
Due to the extremely thin nature of the wires used in this kit, extreme care must be taken during installation. The wires are susceptible to shearing if handled roughly or pinched between bricks. Always ensure that wires are routed carefully and avoid pressing brick pieces down directly onto the wires, as this can damage the insulation and cause the lights to fail.
Installation Process
The installation is divided into five main steps, corresponding to the numbered bags provided in the kit:

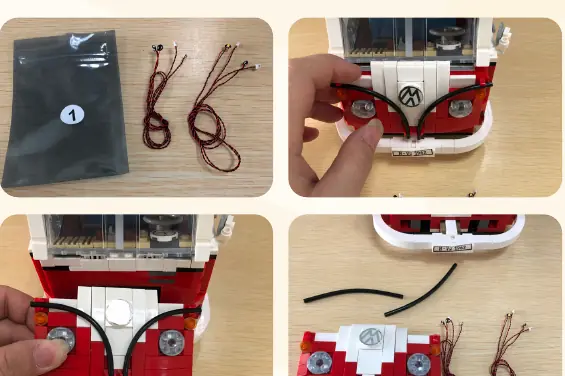

- Step 1 (Bag 1): Focuses on installing the front headlight components and routing the initial wiring through the front bumper assembly.
- Step 2 (Bag 2): Involves the installation of the front logo lighting and connecting the front wiring harness to the main control board.
- Step 3 (Bag 3): Covers the rear lighting assembly, including the installation of tail lights and routing wires through the rear section of the van.
- Step 4 (Bag 4): Deals with the interior lighting and the placement of the main power distribution board.
- Step 5 (Bag 5): Finalizes the interior lighting, connects all remaining components to the power source, and secures the battery box.
Power and Maintenance
Once all components are connected, the light kit can be powered using the provided battery box. If you choose to use an alternative power source, ensure that the maximum voltage does not exceed 6V to prevent damage to the LEDs. Game Of Bricks offers 2 years of free light kit maintenance. If you encounter any challenges during the installation process, please contact their support team via email for assistance.
Manufacturer information
Game of Bricks
Practical help
Common problems
Lights not turning on
Check all connections to the power board and ensure the battery box is switched on and has fresh batteries.
Wire damage or shearing
Ensure wires are not pinched between bricks. If a wire is cut, it may need professional repair or replacement.
Before use
- Verify all bags (1-5) are present.
- Ensure you have a clean workspace.
- Check that the battery box has working batteries.
- Handle wires with extreme care to avoid shearing.
Specs in practice
- Maximum Voltage
- 6V. Do not exceed this voltage if using an alternative power source to avoid damaging the LEDs.
Images and diagrams
- The manual uses photographic step-by-step guides showing the exact placement of LEDs and routing of wires.
- Each bag corresponds to a specific section of the vehicle (front, rear, interior).
Model compatibility
- Designed specifically for LEGO Volkswagen T1 Camper Van 10220.
