12V Electric Oil Extractor Pump
A comprehensive guide for the 12V Electric Oil Extractor Pump. This manual covers safe operation, compatible fluids, usage instructions for vehicle maintenance, and critical safety warnings regarding run-time limits and prohibited liquids.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This 12V electric pump is designed for extracting engine oil, diesel, and biodiesel. The most critical operational limit is the 30-minute maximum run time to prevent overheating and pump failure. Always ensure the pump is used only with compatible fluids to avoid fire hazards.

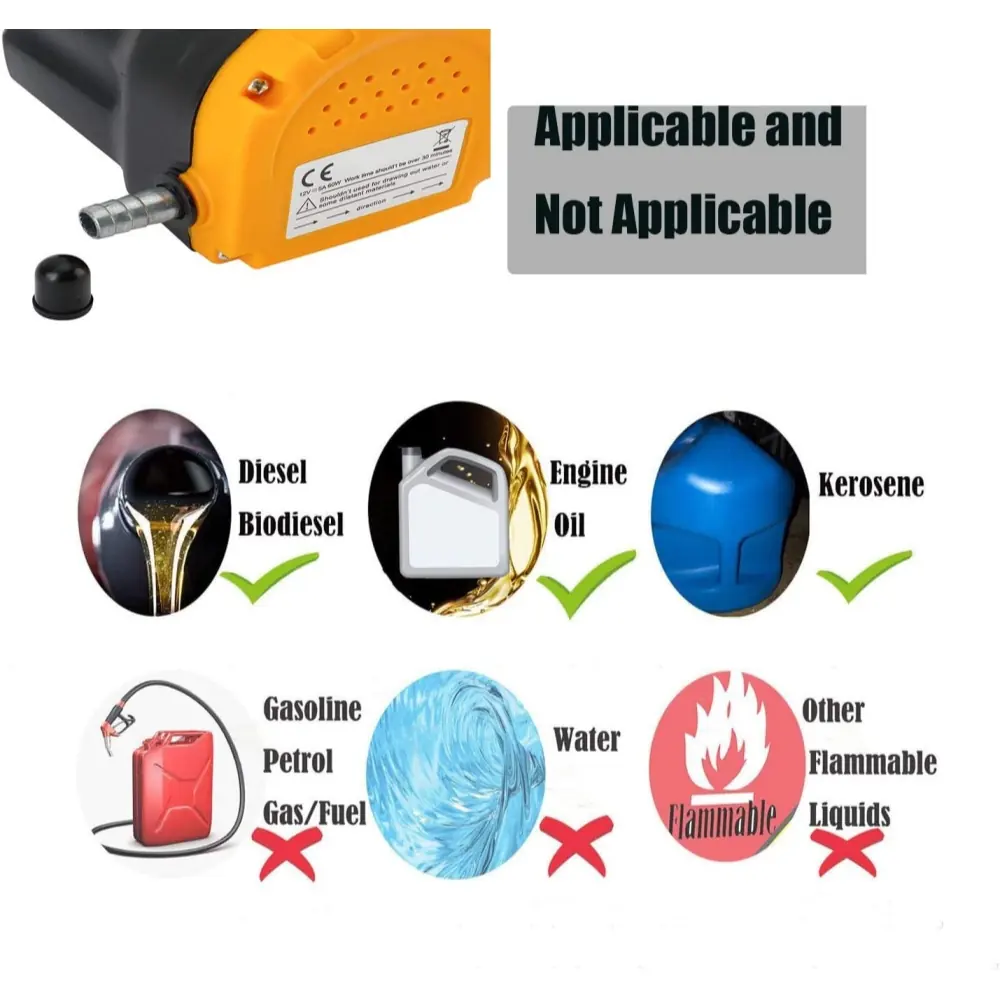

Compatible and non-compatible fluids
Using the pump with incorrect fluids can cause damage or create dangerous conditions.
- Compatible: Diesel, Biodiesel, Engine Oil, Kerosene.
- Not Compatible: Gasoline, Petrol, Water, or other highly flammable liquids. Using the pump with these substances poses a severe fire hazard.
Operating instructions
The pump is powered by a 12V DC source, typically a vehicle battery. Ensure the pump is connected correctly to the battery terminals (red to positive, black to negative).

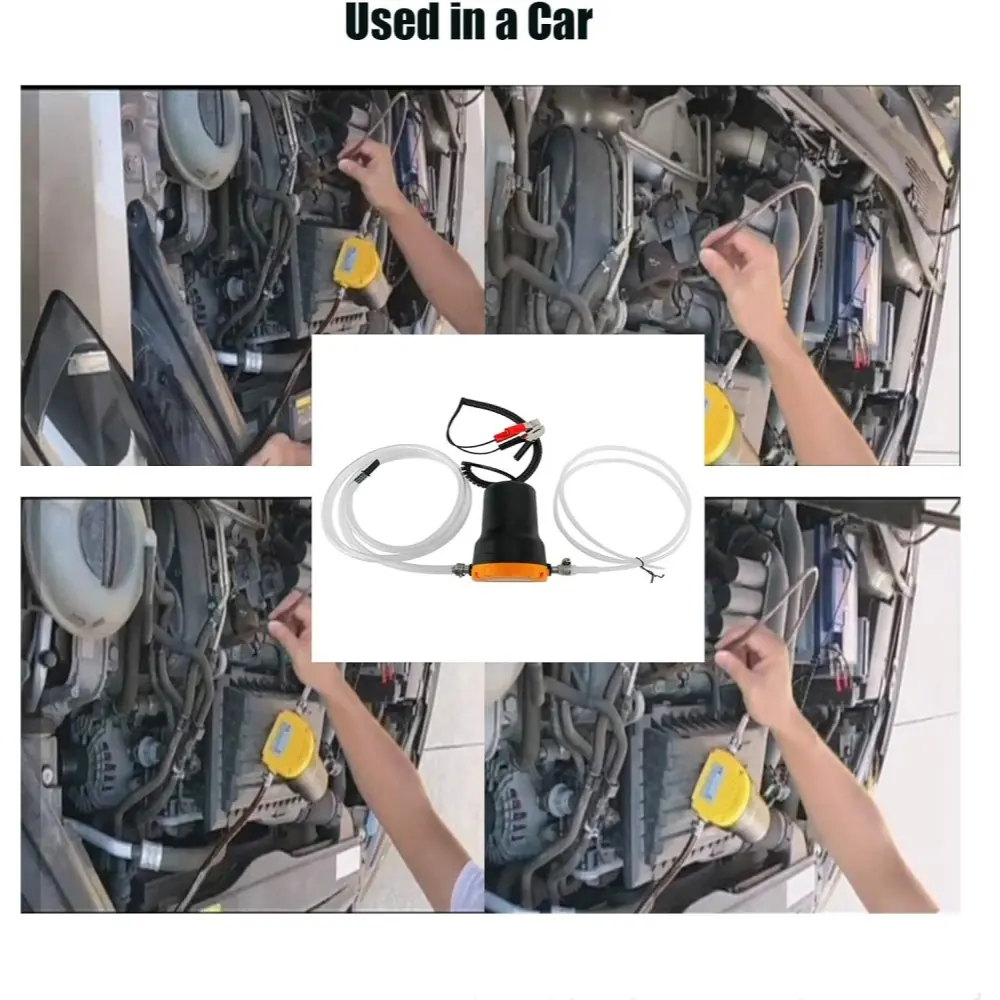

- Insert the intake tube into the oil dipstick hole of the engine.
- Ensure the outlet tube is directed into a suitable waste oil container.
- Connect the pump clips to the 12V battery.
- Operate the pump for no longer than 30 minutes.
- Disconnect the pump once the extraction is complete.
Safety warnings
Do not exceed the 30-minute continuous operation limit. The pump is not designed for water or gasoline. Ensure all connections are secure before starting the pump to prevent leaks.
Practical help
Common problems
Pump stops working or loses power
Check if the 30-minute run time limit has been exceeded. Allow the motor to cool down completely before attempting to use it again.
Fire hazard
Never use the pump for gasoline, petrol, or water. Only use with approved fluids like diesel or engine oil.
Before use
- Verify the fluid to be extracted is compatible (Diesel, Biodiesel, Engine Oil, Kerosene)
- Ensure the 12V power source is stable and accessible
- Check that both intake and outlet tubes are securely attached to the pump
- Prepare a suitable waste container for the extracted fluid
- Ensure the engine is off before starting the extraction process
Images and diagrams

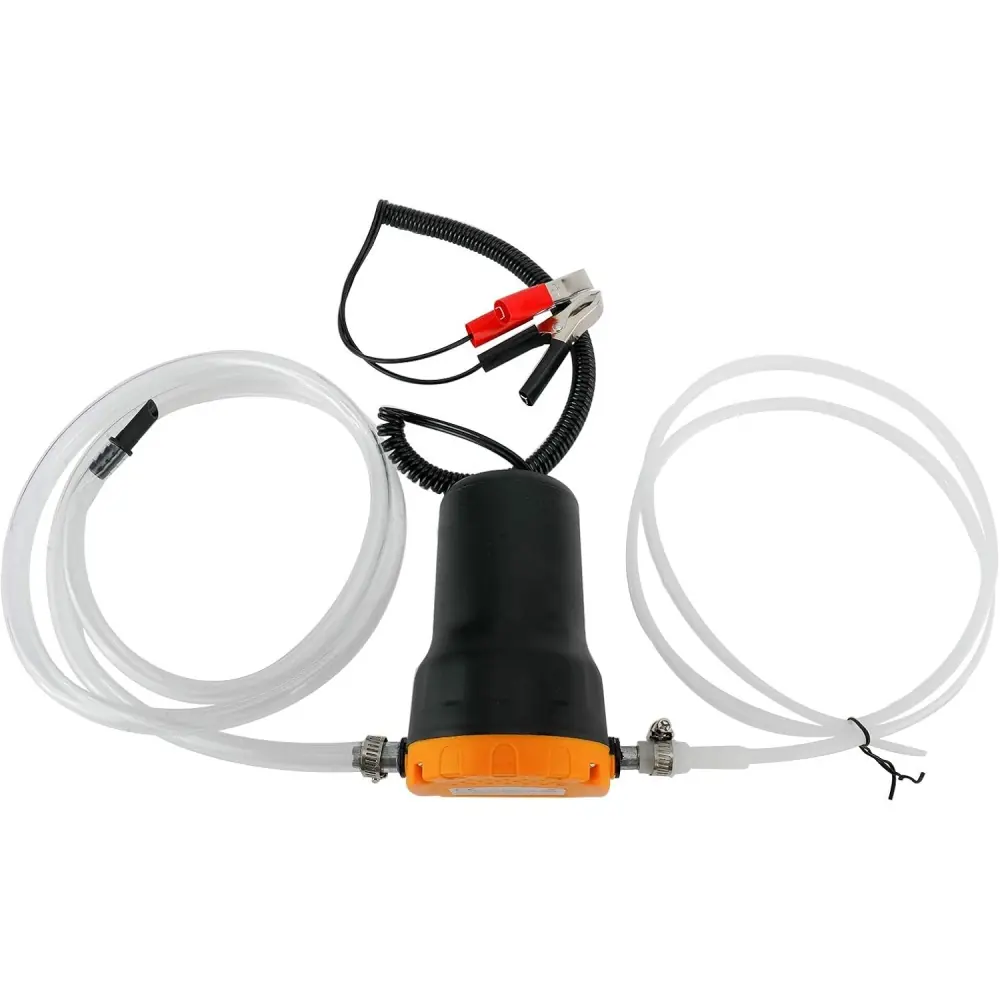

- The pump features two hose connections: one for intake (from the engine) and one for outlet (to the waste container).
- The battery clips are color-coded: Red for positive (+), Black for negative (-).
Model compatibility
- Compatible with: Diesel, Biodiesel, Engine Oil, Kerosene.
- Not compatible with: Gasoline, Petrol, Water, or other flammable liquids.
