Installation Guide for Globo 15946B Hanging Lamp
Quick installation guide for the Globo 15946B hanging lamp. Includes wiring diagrams, mounting instructions, and technical specifications for the integrated LED light source.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides the installation procedure and operational details for the Globo 15946B hanging lamp. Ensure the power is disconnected before starting any installation work. The lamp features an integrated LED light source that is not replaceable by the user.
Installation
Follow these steps to install the fixture:
- Power Off: Turn off the main power supply at the circuit breaker.
- Mounting: Secure the mounting bracket to the ceiling using the provided screws and anchors.
- Wiring: Connect the mains power supply to the terminal block on the fixture, ensuring correct polarity.
- Assembly: Attach the canopy to the mounting bracket and secure it in place.
Operation and Memory Function
The lamp supports a memory function and multiple brightness levels:
- Brightness Control: Use the wall switch to cycle through brightness levels (100%, 50%, 10%).
- Switching: Turn the switch OFF and ON within 5 seconds to change the brightness level.
- Memory Function: To save a setting, keep the light ON for more than 10 seconds. The next time the light is turned on, it will return to the last saved brightness level.
Technical Specifications
- Model: 15946B / 15946S
- Light Source: LED
- Power: 40W
- Voltage: 220-240V~ 50/60Hz
Important Safety Information
The LED light source is integrated into the product and cannot be replaced. The control gear (driver) can only be replaced by a professional. Do not attempt to disassemble the light source or modify the wiring.
Manufacturer information
Globo Lighting
Practical help
Common problems
Light source failure
The LED light source is integrated and cannot be replaced. If it fails, the entire unit may need professional assessment.
Control gear failure
The control gear can only be replaced by a professional.
Before use
- Ensure power is turned off at the circuit breaker before starting installation.
- Verify the ceiling structure can support the weight of the lamp.
- Check that the mains voltage matches 220-240V~ 50/60Hz.
- Ensure all electrical connections are secure and insulated.
Show more Show less
Specs in practice
- 220-240V~ 50/60Hz
- Standard mains voltage and frequency requirements for operation.
Images and diagrams

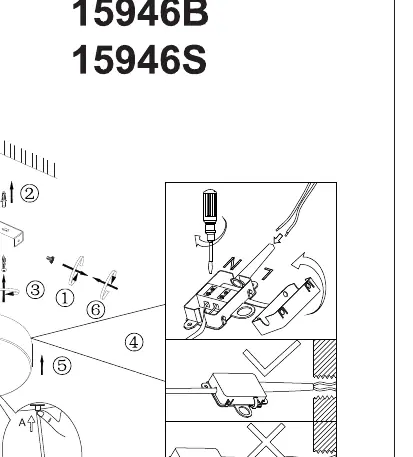

- Step 1-6: Shows the mounting sequence: drilling, bracket installation, wiring, and canopy attachment.
- Memory Function: Explains how to use the switch to cycle through brightness levels (100%, 50%, 10%) and save settings by keeping the light on for >10 seconds.
Model compatibility
- The light source is not interchangeable.
- The control gear is replaceable only by a professional.
Manual page author
David Miller
Documentation analyst
