Installation Instructions for ACROMA 2301BGCR Elutheria 1-Light Pendant
A comprehensive installation guide for the ACROMA 2301BGCR Elutheria 1-Light Pendant. This manual includes essential safety warnings, a list of required tools, hardware components, and step-by-step assembly and wiring instructions.
Quick answers from the manual
Quick answer
- This document is the installation manual for the ACROMA 2301BGCR pendant light. It details the safety precautions, required tools, hardware list, and the step-by-step assembly and wiring process. p. 1, 2, 3, 4
Key actions
- Turn off power at the circuit breaker. p. 1
- Connect wires according to the wiring diagram. p. 3
Problems and fixes
Electrical questions or new wiring required
Consult a qualified electrician.
p. 1, 2Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | Medium Base | Standard E26 base type. | p. 1 |
| Max Wattage | 60W | Maximum power rating per bulb. | p. 1 |
Where to find it in the PDF
- Safety and Pre-Installation p. 1
- Hardware and Assembly Guide p. 2
- Installation Steps p. 3, 4
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for installing the ACROMA 2301BGCR pendant light. Before beginning, ensure the power is turned off at the circuit breaker. You will need basic tools including a Phillips screwdriver, wire stripper, pliers, safety goggles, and electrical tape. Always consult a qualified electrician if you have questions regarding electrical wiring.
Safety Information
- Power Off: Always disconnect power by turning off the circuit breaker or removing the fuse before starting installation.
- Electrical Safety: If you have any electrical questions, consult a qualified electrician.
- Tools: Use tools with insulated handles.
- Environment: Place the fixture on a soft, non-abrasive surface (like carpet or cardboard) during assembly to avoid damage.
Hardware Included
Ensure all parts are present before starting:
- Canopy
- Crossbar assembly
- Outlet box screws (short) x 2
- Green ground screw
- Wire connectors x 3
- Finials x 2
- Support screws (long) x 2
- Hex nuts x 4
- Flat washers x 2
- Chain end loops x 3
- Chain x 1
- Connector ring x 1
- Down rod x 1
- Glass x 1
- Socket ring x 1
Installation Steps

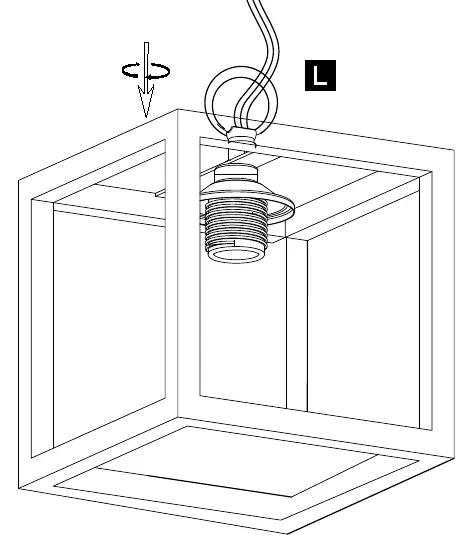

- Step 1: Attach the connector ring to the fixture.

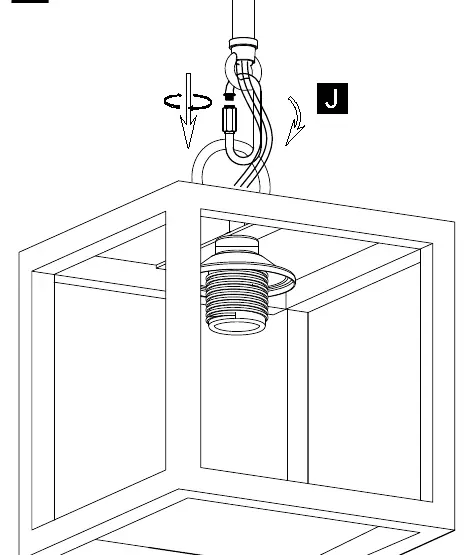

- Step 2: Secure the chain end loops to the fixture and the chain.

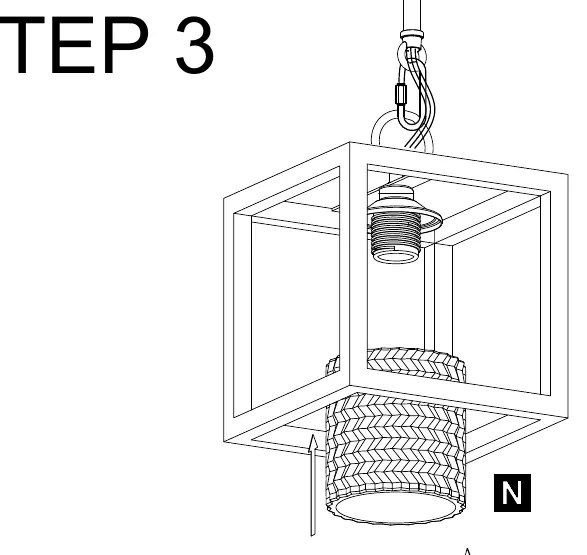

- Step 3: Install the glass shade and secure it with the socket ring.

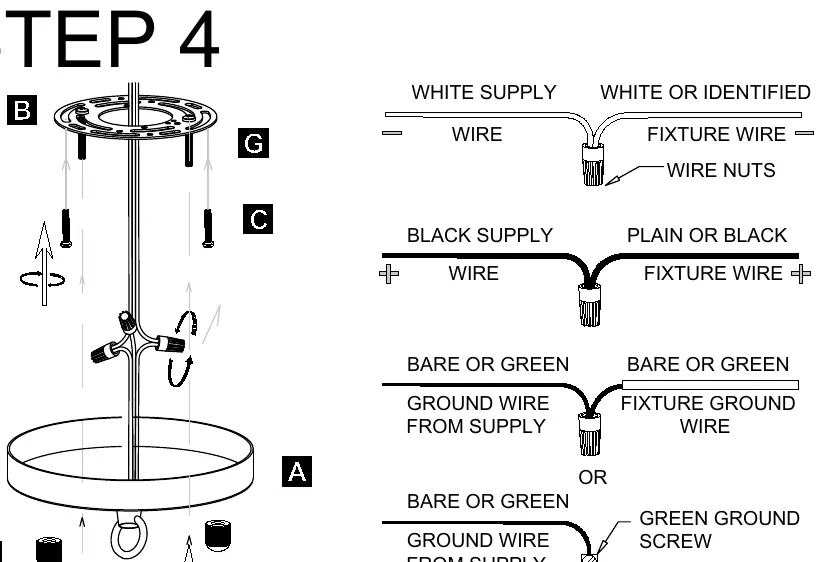

- Step 4: Mount the crossbar assembly to the junction box and prepare for wiring. Connect the fixture wires to the supply wires (White to White/Identified, Black to Plain/Black, Ground to Ground).
- Step 5: Secure the canopy to the ceiling using the finials.
Warranty
The manufacturer provides a one (1) year warranty from the date of purchase covering defects in materials and workmanship under normal use. This warranty does not cover damage resulting from misuse, abuse, accidents, modifications, or faulty installation.
Practical help
Common problems
Fixture does not light up after installation
Verify that the circuit breaker is on, check all wire connections for security, and ensure the bulb is properly installed.
Unsure about wiring connections
Consult a qualified electrician or local authorities for code requirements if you are not confident in performing the electrical connections.
Before use
- Turn off the main power supply at the circuit breaker.
- Gather required tools: Phillips screwdriver, wire stripper, pliers, safety goggles, and electrical tape.
- Read all safety instructions provided in the manual.
- Verify all hardware parts listed in the 'Hardware Included' section are present.
- Prepare a soft surface to assemble the fixture to prevent scratching.
Show more Show less
Specs in practice
- Max 60W Medium Base
- The fixture is designed for a single light bulb with a standard medium base (E26) with a maximum power rating of 60 watts.
Images and diagrams
- Step 4 illustrates the correct wiring method: connecting the white supply wire to the white/identified fixture wire, the black supply wire to the plain/black fixture wire, and the ground wire to the green ground screw or supply ground wire.
Model compatibility
- Designed for indoor use.
- Requires a standard junction box for mounting.
