Goal Zero Boulder 100BC Solar Panel User Guide
Comprehensive user guide for the Goal Zero Boulder 100BC solar panel, covering setup, chaining, technical specifications, and maintenance.
Table of contents
Product Overview
The Goal Zero Boulder 100BC is a high-efficiency, portable solar panel designed to provide reliable power for your outdoor adventures. Featuring a rugged, briefcase-style design, it is built to withstand the elements, making it suitable for both temporary and semi-permanent installations. The panel is equipped with an integrated kickstand, allowing you to easily angle it toward the sun for maximum solar intake.
Getting Started
To begin using your Boulder 100BC, simply unfold the briefcase and deploy the attached kickstand. Locate the 8mm blue-ringed cable on the back of the panel and plug it directly into the INPUT port of your compatible Goal Zero Yeti or Sherpa power station. For the best charging performance, it is recommended to reposition the panel throughout the day to keep it directly facing the sun.
Chaining Panels
The Boulder 100BC can be chained with other Boulder solar panels to increase your total power output. To chain multiple panels, insert the 8mm blue-ringed connector of one panel into the 8mm input port of another compatible Boulder panel. Please note that for configurations exceeding 150W, you will need to purchase a specific combiner cable from Goal Zero to ensure safe and efficient operation. For chaining multiple panels using Anderson connectors, a dedicated 4x 8mm Anderson connector cable (SKU 98060) is required.
Safety and Maintenance
While the Boulder 100BC solar panel itself is weather-resistant and designed to withstand dust, rain, and snow, the devices you are charging are not. Always ensure that your power stations, power packs, and connected USB devices are kept in a dry, protected area away from the elements. The panel requires minimal maintenance; simply keep the surface clean from debris and dirt to ensure optimal light absorption. Do not attempt to mount the Boulder 100BC permanently to a fixture, as it is designed for portability and fold-and-go convenience.
Charging Capabilities
The Boulder 100BC is specifically engineered to charge Goal Zero Yeti portable power stations and Sherpa power packs. It is not intended for direct charging of small USB devices like phones or headlamps; for such applications, consider using Goal Zero's foldable Nomad solar panels.
Manufacturer information
Goal Zero
Practical help
Common problems
Panel not charging efficiently
Ensure the panel is angled directly toward the sun and reposition it throughout the day as the sun moves.
Need to chain more than 150W
Purchase a specific combiner cable from Goal Zero to safely combine multiple panels.
Charging small USB devices directly
The Boulder 100BC is designed for power stations; use Nomad foldable panels for direct USB device charging.
Before use
- Ensure the panel is unfolded completely.
- Check that the kickstand is securely deployed.
- Verify the 8mm blue-ringed cable is free of damage.
- Confirm the power station input port is compatible.
- Ensure the charging area is clear of obstructions.
Specs in practice
- Open Circuit Voltage
- The voltage of the panel when not connected to a load (18-23V).
Images and diagrams

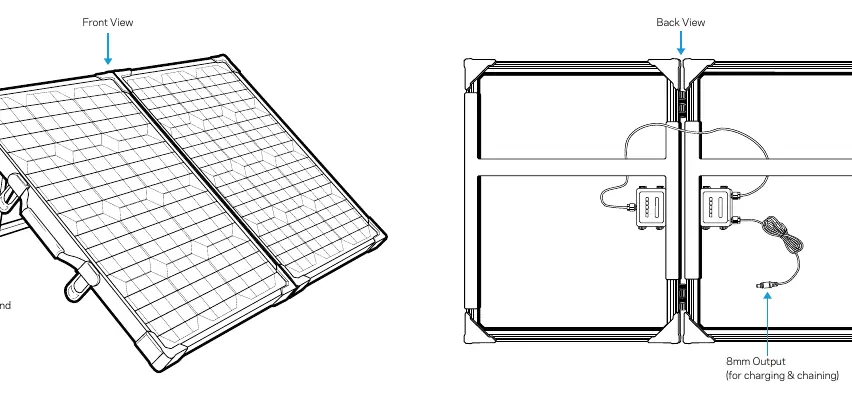

- Front View: Shows the solar cell surface and the kickstand mechanism.
- Back View: Highlights the junction box and the 8mm output cable used for charging and chaining.
Model compatibility
- Compatible with Goal Zero Yeti and Sherpa power stations.
- Can be chained with other Boulder panels featuring 8mm input ports.
- Not designed for permanent roof mounting; use Boulder 50/100 for that purpose.
