The Ground Zero GZNW 12X-D2 is a high-performance long excursion subwoofer from the Nuclear Series. To achieve optimal performance, it is recommended to have the system assembled and tuned by a professional car audio specialist. Always keep the packaging and contents away from children and pets to avoid suffocation risks. Be aware that prolonged exposure to sound levels over 85 dB can cause permanent hearing damage.
Installation notes
Proper installation is critical for safety and performance. Follow these guidelines:
- Never drill holes into the vehicle's gas tank, brake lines, or other vital parts.
- Avoid routing cables over sharp edges to prevent damage.
- Keep signal and speaker cables away from antenna electronics and antenna cables to maintain radio reception.
- Always route power supply wiring separately from speaker wiring to avoid interference.
- Use adequately dimensioned power and speaker wires.
Wiring options
The GZNW 12X-D2 features dual voice coils, allowing for different wiring configurations to match your amplifier's impedance requirements:
- Serial wiring: Connects the coils in series to achieve a 4 Ohm load.
- Parallel wiring: Connects the coils in parallel to achieve a 1 Ohm load.
- Parallel/Serial mixed wiring: Used for multi-subwoofer setups to achieve a 2 Ohm load.
Technical specifications
Key parameters for the GZNW 12X-D2:
- Voice coil diameter: 75 mm / 3 inches
- Impedance: 2 x 2 Ohms
- Re (parallel): 1.04 Ohms
- Fs: 21.8 Hz
- Power handling: 2000 W RMS / 3500 W SPL
- Recommended amplifier power: 1500 – 3500 WRMS
Recommended enclosure
For optimal bass performance, the following vented enclosure configuration is recommended:
- Type: Bassreflex / vented
- Net volume: 90 Liters / 3.18 cu.ft.
- Port dimensions: 2 x 250 cm / 1.57 x 9.84 inches
- Port length: 257 mm / 10.11 inches
- F3 frequency: 25 Hz
Dimensions
Ensure your mounting location accommodates the following dimensions:
- Outer diameter: 314 mm / 12.36 inches
- Mounting cut out: 282 mm / 11.1 inches
- Mounting depth: 210 mm / 8.27 inches
- Magnet diameter: 198 mm / 7.80 inches
- Magnet depth: 100 mm / 3.97 inches
- Pitch circle diameter: 295.3 mm / 11.63 inches
Official resources from the manual
Manufacturer information
Ground Zero Audio
Practical help
Common problems
Radio interference
Ensure signal and speaker cables are routed away from antenna electronics and antenna cables.
Hearing damage
Avoid prolonged exposure to sound levels exceeding 85 dB.
Performance issues
Ensure all system components are carefully coordinated and tuned by a professional.
Before use
- Check vehicle for gas tanks or brake lines before drilling any holes.
- Verify that power supply wiring is separated from speaker wiring.
- Ensure the amplifier output power is within the recommended 1500-3500 WRMS range.
- Use adequately dimensioned power and speaker cables.
Specs in practice
- Power handling

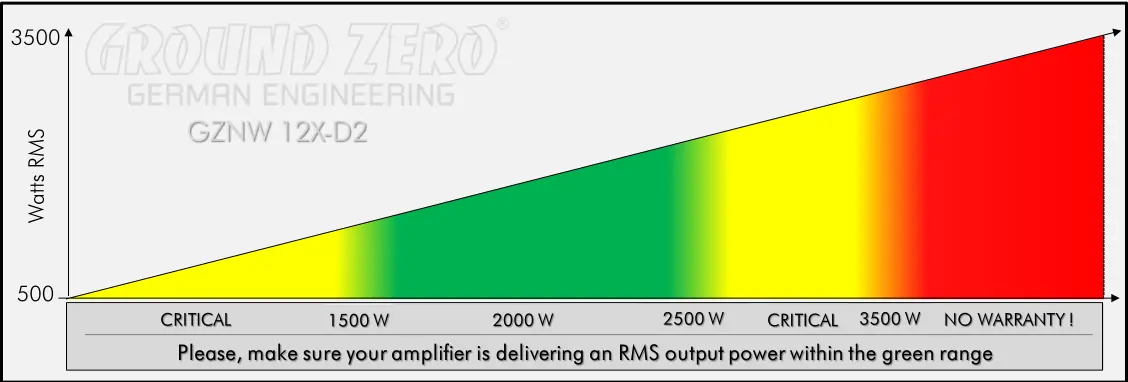

- 2000 W RMS / 3500 W SPL; ensure your amplifier output is within the green range on the power chart.
Images and diagrams
- Serial wiring diagram shows connection for 4 Ohms.
- Parallel wiring diagram shows connection for 1 Ohm.
- Parallel/Serial mixed wiring diagram shows connection for 2 Ohms.
Model compatibility
- Not for disposal with normal household waste; use local recycling facilities.
- Warranty is void if damage occurs due to overloading or competitive use.
