Ground Zero Iridium Series GZIW 12XSPL-D2 Subwoofer
Quick guide for the Ground Zero Iridium Series GZIW 12XSPL-D2 subwoofer. Includes installation notes, technical specifications, enclosure recommendations, and safety instructions.
Table of contents
Important Information
The Ground Zero GZIW 12XSPL-D2 is a high-performance SPL subwoofer from the Iridium Series. This manual provides essential installation guidelines, technical specifications, and enclosure recommendations to ensure optimal performance and longevity of the product.
Installation Notes
- Never drill holes into the vehicle's gas tank, brake lines, or other critical components.
- Avoid routing wires over sharp edges to prevent damage.
- Keep signal and speaker cables away from antenna electronics and radio cables to avoid interference.
- Always route power supply wiring separately from speaker wiring to avoid disturbance.
- Use adequately dimensioned power and speaker wires to connect the component.

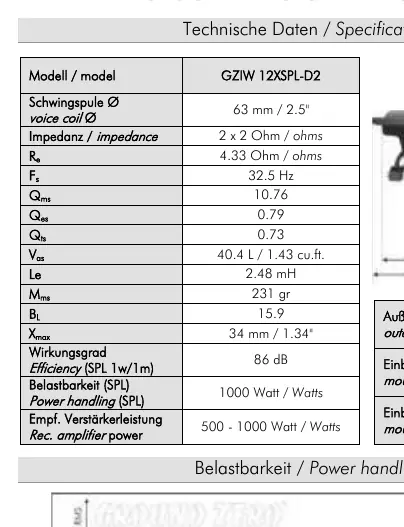

Technical Specifications
The subwoofer features a 63 mm (2.5 inch) copper voice coil and a reinforced paper cone with 3D honeycomb structure. The recommended amplifier power range is 500 to 1000 Watts.
- Impedance: 2 x 2 Ohm
- Power Handling (SPL): 1000 Watts
- Mounting Depth: 162 mm (6.38 inch)
- Mounting Cut-out: 285 mm (11.22 inch)
- Outer Diameter: 310 mm (12.2 inch)
Enclosure Recommendations
For optimal sound reproduction, specific enclosure volumes are recommended:
- Bassreflex (Vented): 45 Liters net volume, 10 cm port diameter, 21 cm port length, F3 frequency 34.6 Hz.
- Bandpass (4th order): 25 Liters net sealed volume + 40 Liters net vented volume, 10 cm port diameter, 11 cm port length, tuning frequency 57 Hz.
Note: These recommendations are variations; final tuning, especially port length, should be adjusted based on the vehicle and personal taste.
Safety and Warranty
Prolonged exposure to volume levels over 85 dB can cause permanent hearing damage. Systems with high amplifier power can reach 130 dB or more. Ground Zero GmbH assumes no responsibility for hearing damage or property damage resulting from improper installation or use. The product contains magnetized metals and should be disposed of at a local recycling facility. For warranty claims, contact your local retailer or distributor.
Manufacturer information
Ground Zero Audio
Practical help
Common problems
Audio interference or noise
Ensure signal and speaker cables are routed away from antenna electronics and power supply wiring.
Hearing damage
Avoid prolonged exposure to volume levels exceeding 85 dB.
Mechanical damage to vehicle
Do not drill into gas tanks, brake lines, or critical vehicle parts; avoid sharp edges when routing wires.
Before use
- Verify amplifier power is within the 500-1000 Watt range.
- Ensure power cables are separated from speaker cables.
- Check mounting depth (162 mm) and cut-out (285 mm) before installation.
- Select appropriate enclosure type (Bassreflex or Bandpass) based on space and sound preference.
Specs in practice
- Power Handling (SPL)
- 1000 Watts; the maximum power the subwoofer can handle.
- Mounting Depth
- 162 mm; the required clearance behind the mounting surface.
Images and diagrams
- The power handling chart illustrates the recommended amplifier power range (500-1000W) for daily street use versus critical competition use.
Model compatibility
- Recommended amplifier power: 500 - 1000 Watts.
- Product contains magnetized metals; dispose of at a local recycling facility.
