User Manual for Ground Zero GZUB 12BR Vented Subwoofer
Quick guide for the Ground Zero GZUB 12BR Vented Subwoofer. Includes installation tips, wiring diagrams for 1 Ohm and 4 Ohm configurations, technical specifications, and safety guidelines.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Ground Zero GZUB 12BR is a high-quality vented subwoofer featuring a 12-inch driver in a solid MDF enclosure. It is designed for audiophiles seeking high sound quality (SQ). For optimal performance, it is recommended to have the system assembled and tuned by a professional car audio specialist.
Installation Notes
Proper installation is critical for both safety and sound performance. Follow these guidelines:
- Safety First: Never drill holes into the vehicle's gas tank, brake lines, or critical wiring.
- Wiring Routing: Always route signal and speaker cables separately from power supply wiring to prevent electrical interference.
- Avoid Damage: Do not run wires over sharp edges or vehicle parts that could cause abrasion or short circuits.
- Professional Help: If you are unsure about the installation process, consult a specialized car audio workshop.
Wiring Options
The GZUB 12BR offers flexible wiring configurations depending on your amplifier's capabilities:
- Parallel Wiring (1 Ohm load): Connect the subwoofer to a mono amplifier using a 1 Ohm load configuration.
- Serial Wiring (4 Ohm load): Connect the subwoofer to a mono amplifier using a 4 Ohm load configuration.
Ensure you use adequately dimensioned speaker wires to connect the components.
Specifications
Key technical parameters for the GZUB 12BR:
- Power Handling: 600W RMS.
- Recommended Amplifier Power: 400 - 800W RMS (@ 4 or 1 Ohm).
- Impedance: 2x 2 Ohm.
- Dimensions: 520 x 380 x 358 mm (Width x Height x Depth).
- Net Volume: 42 Liters.
- Tuning Frequency (Fb): 31 Hz.
Safety and Warranty
Safety Instructions: Keep all packaging and parts away from children and pets to avoid suffocation risks. Be aware that high volume levels (over 85 dB) can cause permanent hearing damage. Systems with high amplifier power can reach levels of 130 dB or more, which may distract from traffic noise and road conditions.
Warranty: The limited warranty is covered by Ground Zero's regional distribution partners. Defects caused by overloading, improper handling, or use in competitive conditions are excluded from the warranty. Please retain your original purchase receipt and a description of the fault for any warranty claims.
Disposal: Loudspeakers contain magnetized metals and valuable raw materials. Do not dispose of them with normal household waste; take them to a local recycling facility.
Manufacturer information
Ground Zero Audio
Practical help
Common problems
Distorted sound or poor performance
Ensure all system components are carefully coordinated and the amplifier power is within the recommended 400-800W RMS range.
Wiring confusion
Use the provided wiring diagrams for parallel (1 Ohm) or serial (4 Ohm) configurations based on your amplifier's capabilities.
Before use
- Ensure the installation location is free from gas tanks, brake lines, and critical vehicle wiring.
- Verify that power supply wiring is routed separately from speaker wiring to avoid interference.
- Check that the amplifier power output matches the subwoofer's requirements (400-800W RMS).
- Use adequately dimensioned power and speaker cables.
Specs in practice
- Power Handling
- 600W RMS is the continuous power the subwoofer can handle; recommended amplifier range is 400-800W RMS.
- Tuning Frequency (Fb)
- 31 Hz is the frequency at which the vented enclosure is tuned for optimal bass response.
Images and diagrams

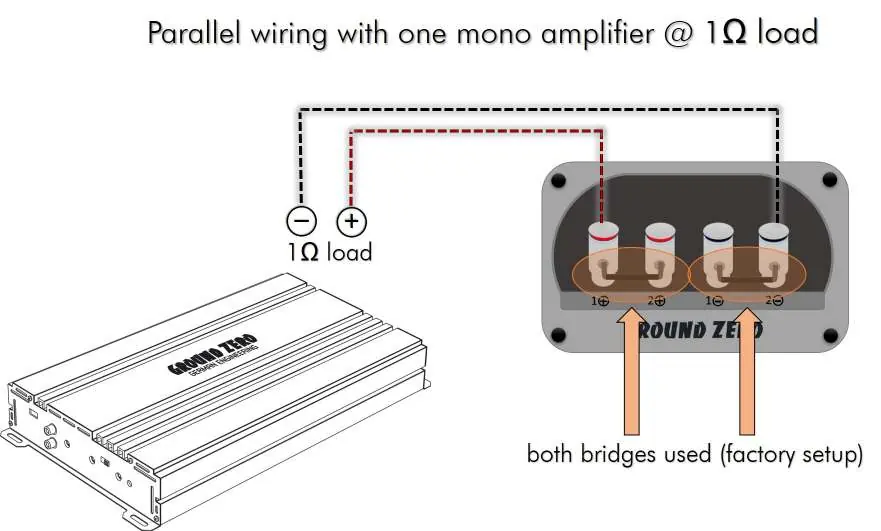

- Wiring options diagram shows how to connect the subwoofer for 1 Ohm (parallel) or 4 Ohm (serial) loads.

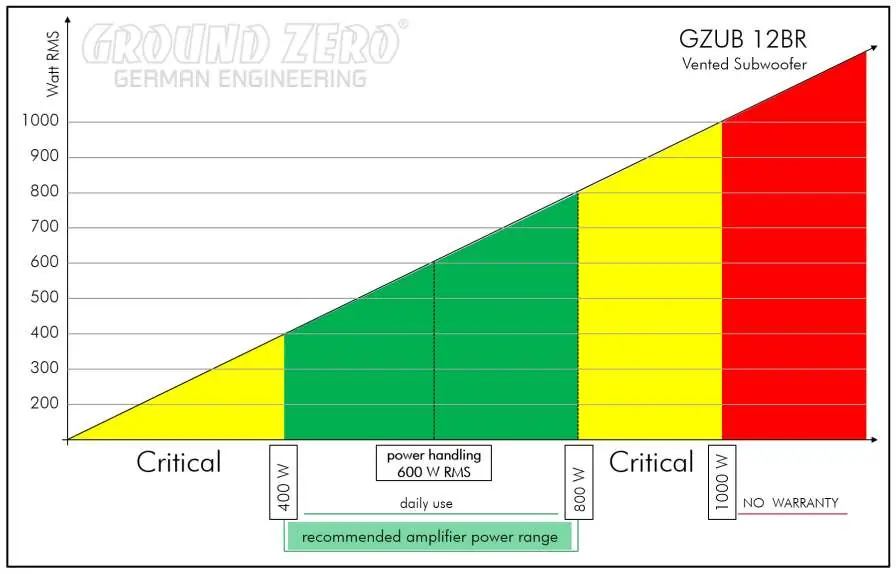

- Power handling chart illustrates the safe operating range (green) versus critical/no warranty zones (yellow/red).
Model compatibility
- Designed for use with mono amplifiers capable of driving 1 Ohm or 4 Ohm loads.
- Not suitable for disposal with household waste; recycle at a local facility.
