User Manual for Ground Zero GZIW 10SPL Subwoofer
Access the official user manual for the Ground Zero GZIW 10SPL subwoofer. This guide provides detailed technical specifications, enclosure volume recommendations for various setups, and warranty information to ensure optimal performance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ground Zero GZIW 10SPL is a high-power SPL subwoofer designed for performance. This manual provides the necessary technical data and enclosure recommendations to achieve the best sound quality and output. Always ensure your amplifier matches the recommended power range to avoid damage, as warranty coverage excludes defects caused by overload or misuse.
Technical specifications
The following specifications are critical for proper system integration and amplifier matching:
- Voice Coil Diameter: 63 mm / 2.5"
- Impedance: 2 x 2 Ohm
- Re (DC Resistance): 3.86 Ohm
- Fs (Resonant Frequency): 40.8 Hz
- Power Handling (SPL): 700 W
- Recommended Amplifier Power: 400 – 700 WRMS @ 4 Ohm
- Xmax: 25 mm / 0.98"

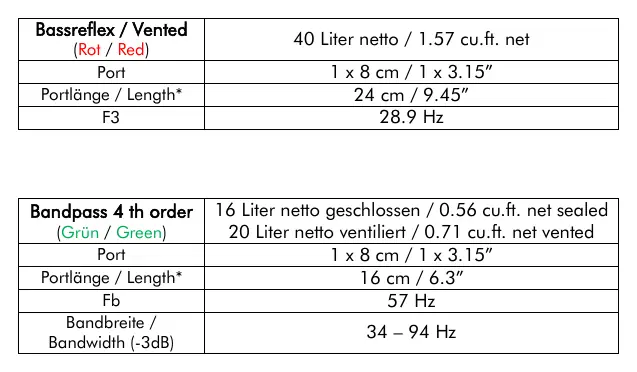

Enclosure recommendations
To achieve optimal performance, the subwoofer should be installed in an enclosure tailored to your specific audio goals. The manual provides the following guidelines:
- Bassreflex (Vented): 40 Liters net volume. Port: 1 x 8 cm diameter, 24 cm length. F3: 28.9 Hz.
- Bandpass (4th order): 16 Liters sealed + 20 Liters vented. Port: 1 x 8 cm diameter, 16 cm length. Bandwidth (-3dB): 34 – 94 Hz.
- Sealed: Minimum 18 Liters net volume.
Note: These recommendations are starting points. Final tuning, especially port length, should be adjusted based on your vehicle and personal listening preference.
Warranty and support
Defective products must be returned in their original packaging. A copy of the original purchase invoice showing the date of purchase and a detailed description of the failure is required. Warranty does not cover damage caused by overload, misuse, or use in competition environments.
Ground Zero GmbHErlenweg 25, 85658 Egmating, GermanyTel: +49 (0)8095/873 830Fax: -8310Website: www.ground-zero-audio.com
Official resources from the manual
Manufacturer information
Ground Zero Audio
Practical help
Common problems
Warranty voidance
Warranty does not cover defects caused by overload, improper handling, or use in SPL competitions.
Poor sound performance
Ensure the enclosure volume and port length are tuned correctly for your specific vehicle and listening taste.
Before use
- Verify amplifier power output is between 400–700 WRMS @ 4 Ohm.
- Check that your wiring configuration matches the 2x2 Ohm impedance of the subwoofer.
- Keep the original packaging in case a warranty return is necessary.
- Ensure you have a valid purchase invoice for warranty claims.
Specs in practice
- Impedance (2 x 2 Ohm)
- Allows for flexible wiring configurations (series or parallel) to match your amplifier's stable load.
- Power W SPL (700W)
- The maximum power handling capacity for SPL (Sound Pressure Level) applications.
Images and diagrams
- The dimensions diagram (A-E) provides the physical measurements required for mounting the subwoofer in your enclosure.
- The frequency response graph illustrates how different enclosure types (Bassreflex, Bandpass, Sealed) affect the output curve.
Model compatibility
- Recommended amplifier power is 400–700 WRMS at 4 Ohm.
