User Manual for Ground Zero GZIB 12SPL Vented SPL Subwoofer
Quick guide for the Ground Zero GZIB 12SPL Iridium Series subwoofer. Includes wiring diagrams for 1 Ohm and 4 Ohm configurations, technical specifications, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ground Zero GZIB 12SPL is a vented SPL subwoofer designed for high-performance audio. Before installation, ensure your amplifier is compatible with the required impedance (1 Ohm or 4 Ohm) and power range (300-1000W RMS). The subwoofer features a 30cm (12") driver with a reinforced paper cone and a solid MDF enclosure. Always handle the unit with care and avoid extreme volume levels to prevent hearing damage.
Features
- High-quality vented SPL subwoofer
- Solid enclosure constructed from MDF
- Flow-optimized bass tunnel
- High-power 30 cm (12") subwoofer driver
- Reinforced paper cone with 3D-honeycomb structure
- GZ-design push terminal
Technical Specifications
- Model: GZIB 12SPL
- Power Handling (SPL): 1000 Watts
- Power Handling (RMS): 500 Watts
- Recommended Amplifier Power: 300 – 1000 W RMS (@ 1 Ohm or 4 Ohm)
- Subwoofer Diameter: 30 cm / 12"
- Impedance: 2 x 2 Ohm
- Dimensions: 56 x 38 x 36/26 cm (22.05" x 14.96" x 14.17/10.24")
- Net Volume: 45 L / 1.59 cu.ft.
Wiring Options
The subwoofer features dual voice coils, allowing for different wiring configurations depending on your amplifier's capabilities:

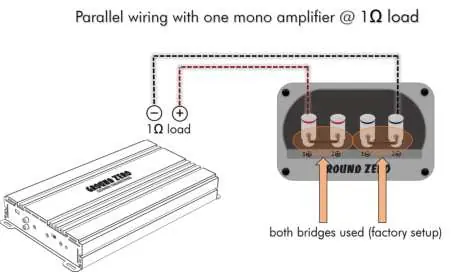

- Parallel wiring (1 Ohm load): Connect both voice coils in parallel to achieve a 1 Ohm load. This setup uses both bridges on the terminal.
- Serial wiring (4 Ohm load): Connect the voice coils in series to achieve a 4 Ohm load. This setup uses one bridge in the center position.
Safety Instructions
Keep all packaging and product parts away from children and pets to avoid suffocation risks. Prolonged exposure to volume levels over 85 dB can cause permanent hearing damage. Systems with high amplifier output can reach levels of 130 dB or more. Ground Zero GmbH assumes no responsibility for hearing damage, physical injury, or property damage resulting from improper installation or use. The product contains magnetized metals and should be disposed of at a local recycling facility, not in household waste.
Contact Information
Ground Zero GmbH, Erlenweg 25, 85658 Egmating, Germany. Phone: +49 (0)8095/873 830. Fax: -8310. Website: www.ground-zero-audio.com
Official resources from the manual
Manufacturer information
Ground Zero Audio
Practical help
Common problems
Hearing damage
Avoid prolonged exposure to volume levels exceeding 85 dB.
Warranty void
Warranty claims are forfeited if the product is used under competitive conditions or installed improperly.
Before use
- Verify your amplifier is capable of driving a 1 Ohm or 4 Ohm load.
- Ensure the amplifier power output is within the 300-1000W RMS range.
- Check that the enclosure is securely installed in the vehicle.
- Confirm the wiring configuration (Parallel or Serial) matches your amplifier's impedance requirements.
Specs in practice
- Power Handling (RMS)
- 500 Watts - the continuous power the subwoofer can handle without damage.
- Power Handling (SPL)
- 1000 Watts - the peak power capacity for short bursts.
Images and diagrams
- Parallel wiring: Connects the two 2-ohm coils to create a 1-ohm load.
- Serial wiring: Connects the two 2-ohm coils to create a 4-ohm load.
Model compatibility
- Requires a mono amplifier capable of stable operation at 1 Ohm or 4 Ohm.
