Owner's Manual for Ground Zero GZNW 15X-D2 Subwoofer

Quick guide from the manual

The Ground Zero GZNW 15X-D2 is a high-performance long excursion subwoofer from the Nuclear Series. To achieve optimal performance, it is recommended to have the system installed and tuned by a professional car audio specialist. Ensure all system components are carefully coordinated.

Installation notes

Proper installation is critical for safety and performance. Follow these guidelines:

• Never drill holes into the vehicle's gas tank, brake lines, or other critical vehicle parts.
• Avoid routing cables over sharp edges to prevent damage.
• Keep signal and speaker cables away from antenna electronics and antenna cables to avoid radio interference.
• Route power supply wiring separately from speaker wiring to prevent disturbances.
• Use adequately dimensioned power and speaker wires for the connection.

Technical specifications

Key specifications for the GZNW 15X-D2 include:

• Voice coil diameter: 75 mm / 3 inches
• Impedance: 2 x 2 Ohms
• Power handling: 2500 W RMS / 4000 W SPL
• Xmax: 62 mm / 2.44 inches
• Fs: 35.2 Hz

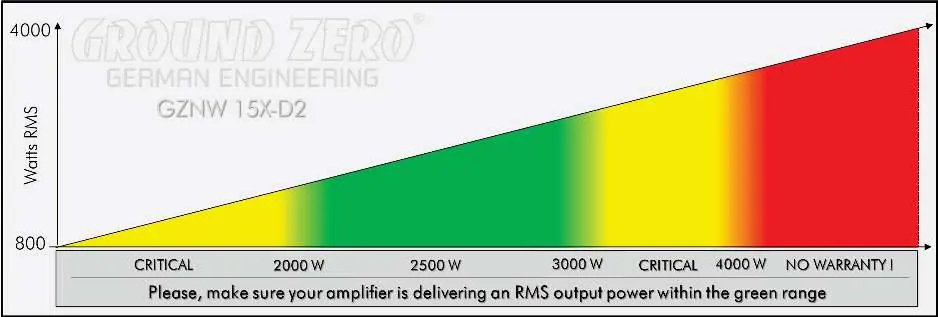

• Recommended amplifier power: 2000 – 3000 WRMS

Enclosure recommendations

For optimal performance, the following enclosure configuration is recommended:

• Type: Bassreflex / Vented
• Net volume: 116 Liters / 4.09 cu.ft.
• Port dimensions: 215 x 130 mm / 84.65 x 5.11 inches
• Port length: 400 mm / 15.7 inches
• F3 (-3 dB): 31 Hz

Note that these are suggested variations; final tuning, especially port length, should be adjusted based on the specific vehicle and personal sound preference.

Safety and warranty

Extreme volume levels over 85 dB can cause permanent hearing damage. Music systems can reach levels of 130 dB or more, which may also hinder the perception of traffic noises. The manufacturer assumes no responsibility for hearing damage, physical damage, or property damage resulting from improper use or installation. Warranty claims are void if the product is used under competitive conditions or damaged due to overload or improper handling.
