Owner's Manual for Ground Zero GZRA 1.2500D Car Amplifier
Comprehensive owner's manual for the Ground Zero GZRA 1.2500D car amplifier. Includes installation instructions, wiring diagrams for stereo and master/slave configurations, control settings, and a troubleshooting guide.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for installing and operating the Ground Zero GZRA 1.2500D car amplifier. Key steps include disconnecting the vehicle battery before installation, using a minimum of 20 mm² power and ground cables, and ensuring proper ventilation for the unit. Always use the included 200A external fuse.
Features
- 1 Ohm stable
- Linkable 2 Ohm
- High efficient triple MOSFET power supply
- Variable 12dB Bass boost (45Hz)
- Variable Lowpass and Subsonic filters
- Phase shift 0 / 180° switch
- Bass remote control included
- Thermal, short, and overload protection
Installation
Tools needed: Screwdriver, electric drill with 3 mm bit, mounting screws, power/ground cables (min. 20 mm²), and speaker cables (min. 2.5 mm²).
Mounting: Select a location that is convenient for wiring and has ample room for air circulation. Use the amplifier as a template to mark the mounting holes, then drill and secure the unit with screws.
Power connection
Connect the +12V DC cable to the battery side with an external 200A fuse. Ensure the radio and other devices are turned off during connection. Connect the ground cable to a solid chassis point. Connect the remote turn-on lead to the head unit.
Controls and functions
- Input Level: Adjusts input sensitivity.
- Bass Boost: Adjusts bass level from 0 to +12 dB.
- Low Pass: Sets the crossover frequency between 30 Hz and 250 Hz.
- Subsonic Filter: Filters low frequencies between 10 Hz and 50 Hz to protect the subwoofer.
- Phase Shift: Adjusts the subwoofer phase relative to the front system.
- Master/Slave Switch: Configures the amplifier for link mode operation.
Operation
The amplifier turns on automatically a few seconds after the radio is powered. If the unit overheats (approx. 80°C), it will shut down temporarily and restart automatically once cooled.
Audio Level Adjustment: Turn the level control to MIN, set the radio volume to 2/3 of its maximum, and then adjust the amplifier level for a comfortable listening volume.
Wiring configurations
The manual provides specific diagrams for:
- Stereo Wiring: Connecting subwoofers to the speaker terminals.

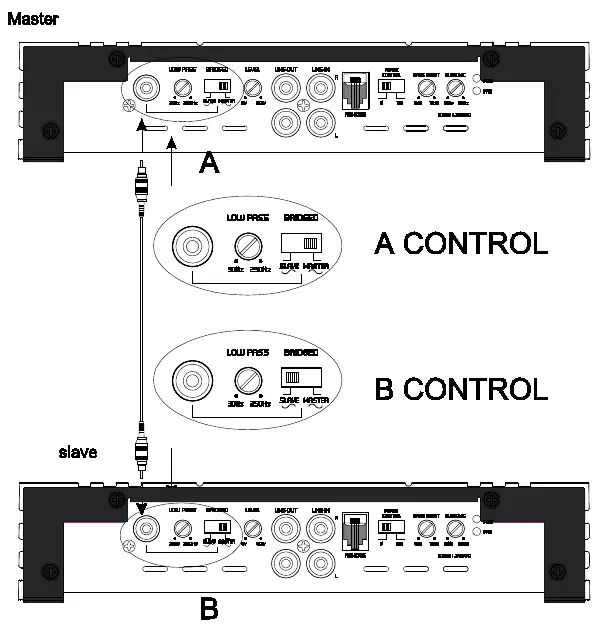

- Master & Slave Wiring: Connecting two amplifiers in link mode for increased power, including RCA signal routing and control settings.
Troubleshooting
If you encounter issues, check the following:
- No sound: Check fuses, remote lead connection, +12V power, ground connection, and speaker wiring.
- Amp not switching on: Verify power wire connections and remote wire voltage.
- Protection LED on: Check for overheating or short circuits in speaker wires.
- Sound missing in one channel: Inspect speaker leads and RCA cables.
Specifications
- Type: 1 Channel Class D
- RMS Power @ 4 Ohm: 1 x 750 W
- RMS Power @ 2 Ohm: 1 x 1400 W
- RMS Power @ 1 Ohm: 1 x 2200 W
- RMS Power @ 2 Ohm Linkmode: 1 x 4400 W
- Frequency Response: 10 Hz – 250 Hz
- Input Sensitivity: 200 mV – 9 V
Manufacturer information
Ground Zero Audio
Practical help
Common problems
No sound
Check amplifier fuses, ensure remote lead is connected, verify +12V and ground connections, and check for speaker shorts.
Amp not switching on
Check power wire connections and ensure the remote wire has voltage when the radio is on.
Protection LED is on
The amplifier may be overheating or there is a short circuit in the speaker wires. Reduce volume or check speaker wiring.
Amp turns off at high volume
Check speaker load impedance to ensure it meets the amplifier's requirements.
Before use
- Disconnect the vehicle battery before starting installation.
- Use power and ground cables with a minimum cross-section of 20 mm².
- Install an external 200A fuse on the +12V cable near the battery.
- Ensure the mounting location allows for adequate air circulation.
- Ensure the radio and all other devices are turned off before connecting.
Specs in practice
- Low Pass Filter
- Limits the high frequencies sent to the subwoofer (30-250 Hz).
- Subsonic Filter
- Removes extremely low, inaudible frequencies (10-50 Hz) to protect the subwoofer.
- Damping Factor
- Indicates the amplifier's ability to control speaker movement.
Images and diagrams

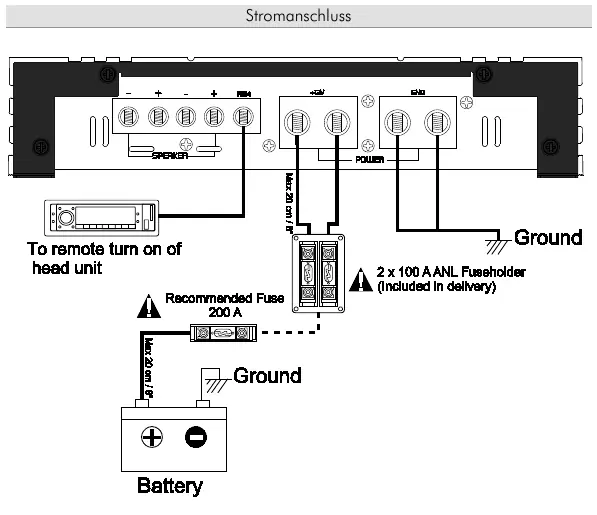

- Power connection diagram shows the correct wiring for +12V, Ground, and Remote, including fuse placement.

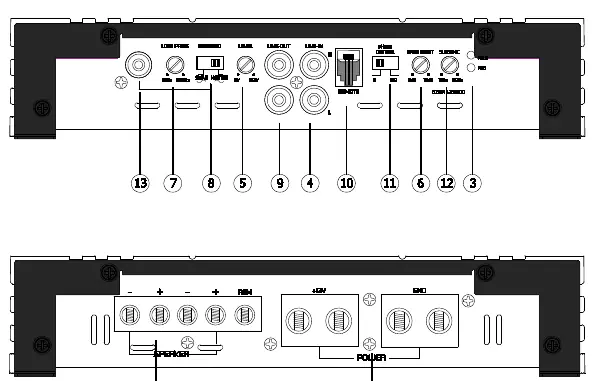

- Controls diagram identifies all knobs and switches on the amplifier panel.
- Stereo wiring diagram illustrates connecting subwoofers to the speaker terminals.

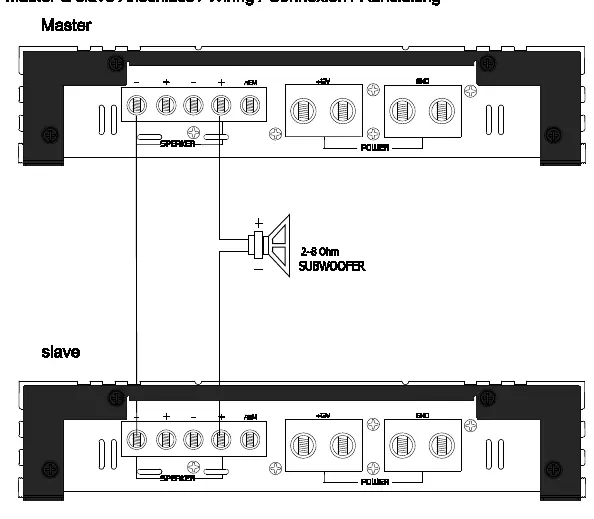

- Master/Slave wiring diagram shows how to link two amplifiers together.
Model compatibility
- 1 Ohm stable operation.
- Linkable at 2 Ohm.
- Speaker impedance for stereo mode: 2-8 Ohm.
- Requires high-quality RCA cables.
