User Manual for Hamilton Beach Essential 20L Digital Microwave
Comprehensive user guide for the Hamilton Beach Essential 20L Digital Microwave. Includes setup, operation instructions, cooking modes, cleaning, and troubleshooting.
Quick answers from the manual
Quick answer
- To operate the microwave, select the power level using the 'Micro.' button, input the cooking time using the number pad, and press 'START/+30s'. p. 6, 7
Key actions
- Set Child Lock p. 10
- Defrost by weight p. 8
First start
- Remove all packaging and film, place in a well-ventilated area, and run with a cup of water to remove initial odours. p. 6
Show 4 more answers Show less
Problems and fixes
Oven fails to operate
Check power connection, fuse/circuit breaker, and ensure the door is securely closed.
p. 14Maintenance and reset
- Clean interior with damp cloth, wash turntable in warm soapy water, and use lemon water to remove odours. p. 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 700W | Microwave power output | p. 3 |
| Capacity | 20 Litres | Internal volume | p. 3 |
Where to find it in the PDF
- Specifications p. 3
- Control Panel Operation p. 6, 7, 8, 9
- Cleaning & Care p. 13
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This microwave is designed for domestic use. Before first use, remove all packaging and protective film. Ensure the appliance is placed in a dry, non-corrosive environment with adequate ventilation: 10cm from the back to the wall, 5cm from the sides, and 20cm of free space above. The microwave should be positioned at least 85cm above the ground. If you notice an initial odour or slight smoke during the first few uses, this is normal due to manufacturing residue; place a cup of water in the cavity and operate at high power to ventilate.

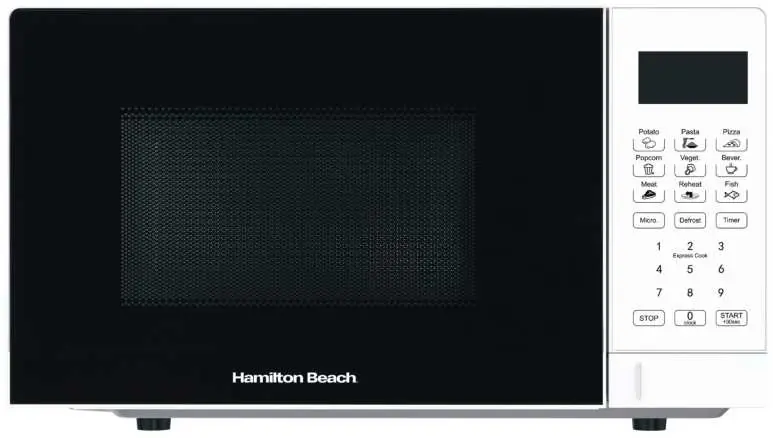

Product Overview
The microwave features a door lock, viewing window, rotating ring, rotating axis, turntable, control panel, and a wave guide cover. Caution: Never remove the wave guide cover. Ensure the rotating ring and turntable are fitted correctly onto the rotating axis before use.
Operation
Microwave Function: Press the 'Micro.' button to select from 10 power levels (10% to 100%). Input the cooking time using the 0-9 number buttons (max 99:99) and press 'START/+30s' to begin.
Defrost: Select 'dEF1' (by weight, 100-1500g) or 'dEF2' (by time, max 99:99) using the 'Defrost' button. Input the weight or time and press 'START/+30s'.
Auto Cooking: Choose from 8 menus (Potato, Pasta, Pizza, Popcorn, Vegetables, Beverage, Meat, Fish). Press the corresponding button repeatedly to select the weight, then press 'START/+30s'.
Express Cook: In standby mode, press 1-6 to start cooking for 1-6 minutes immediately. Press 'START/+30s' to add 30 seconds to the current cycle.
Child Lock: Hold the 'STOP' button for about 3 seconds to lock or unlock the control panel.
Cooking Tips
- Utensils: Use microwave-safe ceramic, glass, or plastic. Never use metal containers or the grill rack during microwave cooking.
- Food Arrangement: Place thicker sections towards the outer edges of the dish.
- Standing Time: Allow food to rest after cooking to complete the cycle and cool gradually.
Cleaning & Care
Always unplug the appliance before cleaning. Wipe the interior and exterior with a damp cloth. Do not use steam cleaners or abrasive cleaners. Regularly clean the roller ring and oven floor. To eliminate odours, microwave a bowl of water with lemon juice for 5 minutes.
Troubleshooting
If the oven fails to operate, check that it is plugged in securely, check for a blown fuse or tripped circuit breaker, ensure the control panel is programmed correctly, and verify that the door is securely closed.
Manufacturer information
Hamilton Beach
Practical help
Common problems
Oven fails to operate
Check that the plug is secure, check for a blown fuse or tripped circuit breaker, and ensure the door is securely closed.
Initial odour or smoke during first use
This is normal due to manufacturing residue. Place a cup of water in the cavity, set to high power, and operate several times with the door or window open for ventilation.
Before use
- Remove all packaging and protective film.
- Place on a dry, non-corrosive surface.
- Ensure 10cm clearance at the back, 5cm at sides, and 20cm above.
- Ensure the plug is accessible and grounded.
- Clean the interior with a damp cloth.
- Fit the rotating ring and turntable correctly.
Show more Show less
Specs in practice
- Power Consumption
- 220-240V, 50-60Hz
- Power Output
- 700W
Images and diagrams
- The control panel includes buttons for specific food types (Potato, Pasta, Pizza, etc.), power levels, defrost, timer, and number keys.
- The interior features a rotating ring and turntable that must be properly aligned.
Model compatibility
- Use only microwave-safe containers.
- Never use metal containers or the grill rack during microwave cooking.
- Do not use plastic film that is not specifically designed for microwave use.
