HiKOKI UC 18YFSL2 Battery Charger User Guide
Quick guide for the HiKOKI UC 18YFSL2 battery charger, covering charging procedures, indicator light meanings, safety precautions, and maintenance.
Table of contents
Quick guide from the manual
This document provides essential instructions for operating the HiKOKI UC 18YFSL2 battery charger. It is designed for charging HiKOKI BSL14, BSL18, and Multi Volt series batteries. Always ensure the charger is used in a well-ventilated area, away from direct sunlight, and at an ambient temperature between 0°C and 40°C.
Charging procedure
- Connect the power cord to the charger's AC inlet.
- Plug the power cord into a standard electrical outlet.
- Insert the battery firmly into the charger as shown in the diagram.
- The battery charging indicator will blink green during charging and light up continuously when charging is complete.
- After charging, disconnect the power cord and remove the battery from the charger.
Indicator lights
- Blinking Green: Charging in progress.
- Lit Up Green: Charging complete.
- Blinking Red: Charging impossible (malfunction in battery or charger).
- Lit Up Red: Overheat standby (battery is too hot; charging will start once it cools).
Safety and maintenance
Safety precautions: Never disassemble the charger or battery, do not short-circuit the battery, and do not insert foreign objects into the ventilation slots. Always use the specified charger and genuine HiKOKI replacement parts.
Maintenance: Regularly inspect mounting screws and tighten if loose. Clean the charger with a soft, dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline, or paint thinner as they can melt plastic components.
Service: For authorized service center addresses, visit https://hikoki-powertools.eu.
Official resources from the manual
Manufacturer information
HiKOKI
Practical help
Common problems
Warning indicator lights up red (overheat standby)
The battery is too hot. Let it cool down before attempting to charge again.
Warning indicator blinks red
Check for foreign objects in the battery connector. If none are found, the battery or charger may be malfunctioning; take it to an authorized service center.
Before use
- Ensure the ambient temperature is between 0°C and 40°C.
- Check that the charger and battery terminals are free of dust, moisture, or metal particles.
- Verify that the power source voltage matches the charger's specifications.
- Ensure the battery is compatible (BSL14, BSL18, or MV series).
Specs in practice
- Charging voltage
- 14.4 V–18 V, compatible with HiKOKI Li-ion battery series.
- Charging time
- Varies by battery capacity (e.g., 1.5 Ah takes approx. 22 min, 6.0 Ah takes approx. 90 min at 20°C).

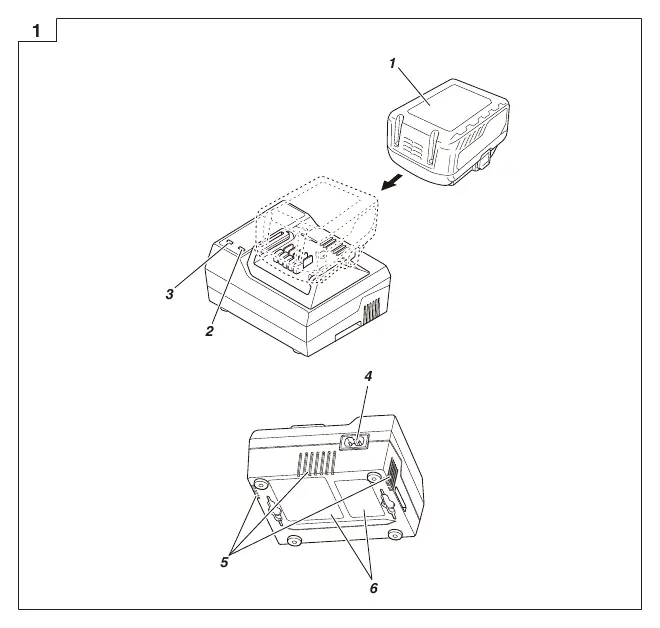

Images and diagrams
- 1: Rechargeable battery
- 2: Battery charging indicator
- 3: Warning indicator
- 5: Ventilation holes
Model compatibility
- Compatible with HiKOKI BSL14 series, BSL18 series, and MV series batteries.
