HILTI DD 150-U Diamond Coring Tool User Manual

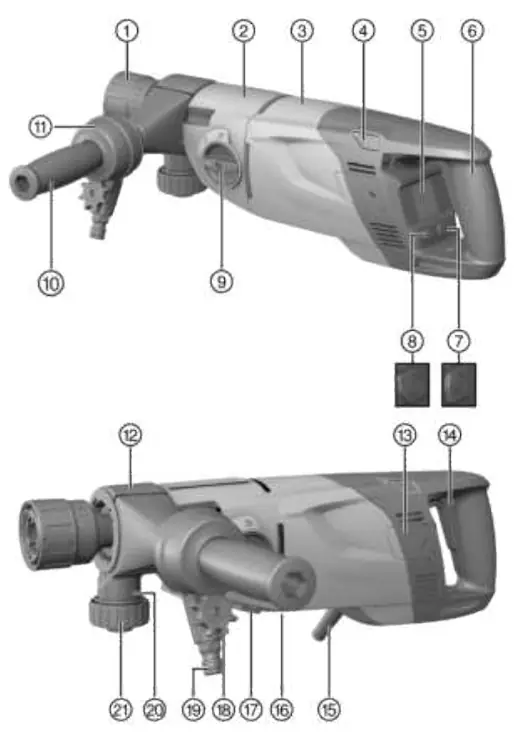

Product Description

The Hilti DD 150-U is an electrically powered diamond core drilling machine designed for both hand-guided and rig-mounted wet and dry drilling. It is suitable for creating through-holes and blind holes in mineral substrates, including reinforced concrete, and is also designed for dry drilling in wood when used with specific core bits.

Technical Data

• Weight (EPTA Procedure-01): 8.4 kg
• Weight (drill stand with base plate and carriage): 13.3 kg
• Max. drilling depth: 450 mm
• Max. core bit diameter: 162 mm
• Permissible water supply pressure: ≤ 6 bar
• Bluetooth frequency band: 2,400 MHz – 2,483 MHz

Safety

General Safety: Always read and understand all accompanying documentation, including safety warnings and specifications. Failure to follow instructions can result in electric shock, fire, or serious injury. Only trained, authorized personnel should operate, service, and maintain this product.

Operational Safety: Always use the auxiliary handle. When drilling overhead, a water collection system combined with a wet-type industrial vacuum extractor is mandatory. Ensure the drill stand is securely fastened using anchors or a vacuum base plate. Never use the vacuum securing method alone for overhead drilling.

Operation

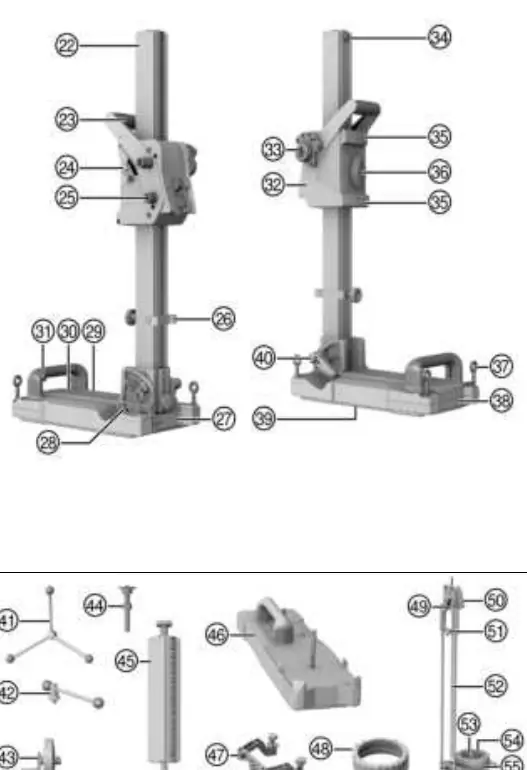

The tool features a multifunction display for monitoring status, gear selection, and Bluetooth connectivity. Ensure the tool is correctly mounted on the drill stand before operation. Always check the play between the rail and carriage. For wet drilling, connect the water supply and ensure the water collection system is properly installed to prevent water from entering the motor.

Maintenance

Regularly inspect all visible parts and controls for damage. Do not operate the product if parts are damaged or malfunctioning. Only use genuine Hilti spare parts. Replace carbon brushes when the service indicator appears on the display. Always disconnect the power supply before performing any maintenance or cleaning.

Troubleshooting

If the tool is not functional, check the PRCD, power supply, and for water in the motor. If the tool is functional but experiencing issues like reduced drilling speed, check for incorrect gear selection, low contact pressure, or a defective core bit. Refer to the manual for detailed error codes and solutions.

Disposal

Most materials used in Hilti tools are recyclable. Ensure proper material separation before recycling. Do not dispose of electric tools or batteries in household waste.
