Hilti P2P Connector Installation Guide
Installation guide for the Hilti P2P Connector system. Includes setup, torque requirements, and step-by-step installation instructions for use with SIW 22T-A and SIW 6AT-22 impact wrenches.
Quick answers from the manual
Quick answer
- The Hilti P2P Connector is a timber connection system installed using Hilti impact wrenches (SIW 22T-A or SIW 6AT-22). It requires a maximum torque of 500 Nm and must be installed in wood with a moisture content below 18%. p. 1, 2
Key actions
- Verify wood moisture content is below 18%. p. 1, 2
- Tighten the connector to 500 Nm using the specified impact wrench and adapter. p. 1, 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Torque | 500 Nm | Required tightening torque | p. 1 |
| Max Wood Moisture | < 18% | Maximum allowable moisture | p. 1, 2 |
Show 1 more answers Show less
Where to find it in the PDF
- Standard Installation p. 1
- Optional Installation p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Hilti P2P Connector is a specialized timber connection system. To ensure a safe and correct installation, verify that the wood moisture content is below 18%. The system requires the use of specific Hilti impact wrenches (SIW 22T-A or SIW 6AT-22) equipped with an M12 Adapter and SW19 Offset. The maximum tightening torque is 500 Nm.
Installation Procedure
Follow these steps for the standard installation of the P2P Connector:
- Preparation: Ensure the wood surface is clean and the moisture content is below 18%.

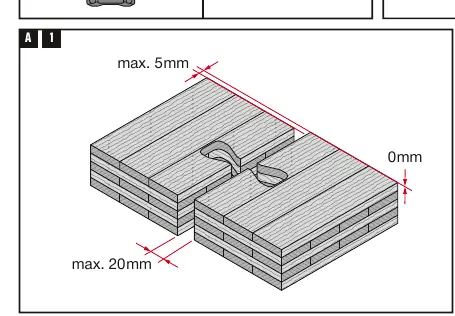

- Positioning: Place the connector according to the spacing requirements (180mm). Ensure gaps do not exceed 5mm or 20mm as specified in the diagrams.

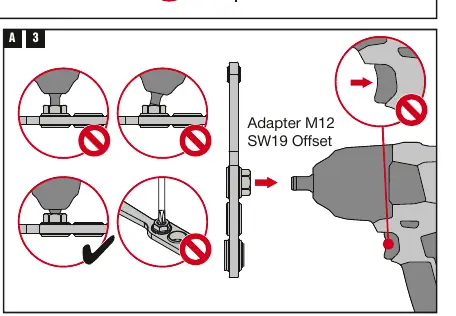

- Tool Setup: Attach the M12 Adapter and SW19 Offset to your Hilti impact wrench (SIW 22T-A or SIW 6AT-22).

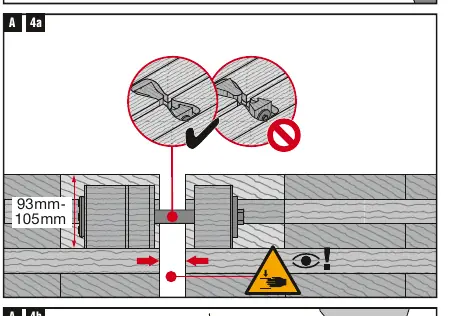

- Installation: Insert the connector into the pre-prepared timber sections. Use the impact wrench to tighten the connector until the required torque of 500 Nm is reached.

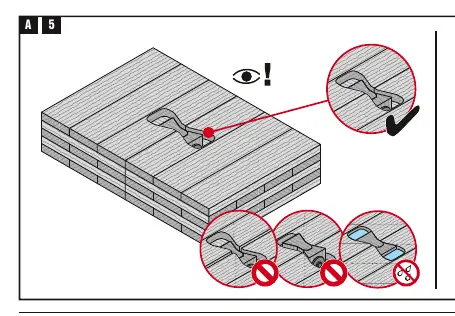

- Verification: Ensure the connector is flush and properly seated within the timber.
Optional Installation
For specific configurations, follow the optional steps provided in the manual:

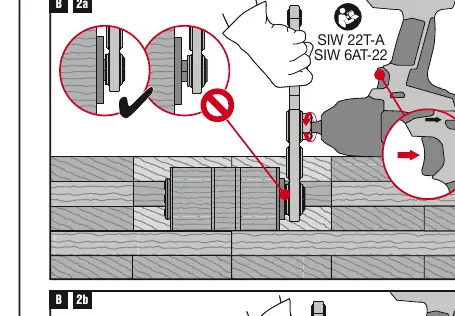

- B1-B3: These steps detail alternative insertion methods for the connector, ensuring the tool is aligned correctly with the connector head before applying torque. Always verify the seating of the connector after tightening.
Technical Requirements
- Torque: Tmax = 500 Nm.
- Wood Moisture: Must be less than 18%.
- Compatible Tools: Hilti SIW 22T-A, SIW 6AT-22.
- Required Accessories: HTC-P2P 90mm M12 connector, M12 Adapter, SW19 Offset.
Manufacturer information
Hilti Corporation
Practical help
Common problems
Wood moisture too high
Ensure wood moisture content is below 18% before installation.
Incorrect connector spacing
Maintain a spacing of 180mm between connectors as indicated in the installation diagrams.
Before use
- Check wood moisture content (< 18%).
- Verify tool compatibility (SIW 22T-A or SIW 6AT-22).
- Ensure M12 Adapter and SW19 Offset are available.
- Confirm connector type is HTC-P2P 90mm M12.
Show more Show less
Images and diagrams
- Diagrams A1-A4 show the standard installation sequence.
- Diagrams B1-B3 show optional installation steps.
- Visual indicators show correct (check mark) and incorrect (crossed out) tool positioning.
Model compatibility
- Compatible with Hilti SIW 22T-A and SIW 6AT-22 impact wrenches.
