Assembly Instructions and User Manual for Home Decorators Collection Pinery Large Wall Mantel 1927FM-28-242
Comprehensive assembly and user guide for the Home Decorators Collection Pinery Large Wall Mantel (Model 1927FM-28-242). Includes step-by-step installation instructions, operating procedures for the electric fireplace, maintenance tips...
Quick answers from the manual
Quick answer
- The Pinery Large Wall Mantel (1927FM-28-242) is an electric fireplace console. Assembly requires a Phillips screwdriver and approximately 50 minutes. It features adjustable flame brightness, speed, and heater settings, with a thermostat range of 65°F to 90°F. p. 1, 6, 15
Key actions
- Assemble the unit using the provided hardware and steps 1-11. p. 8, 9, 10, 11
- Install the tip restraint hardware to a wall stud for safety. p. 13
First start
- Remove the plastic tab from the remote control. p. 15
- Plug the unit into a 120V grounded outlet. p. 4, 13
Problems and fixes
Error E1/E2
Unplug unit, wait 15-20 minutes, then plug back in.
p. 18
Error E3
Heater override is engaged. See page 16.
p. 16, 18Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E1 | Overheat sensor engaged | Unplug, wait 15-20 mins, reset | p. 18 |
| E2 | Thermostat sensor broken or not working | Unplug, wait 15-20 mins, reset | p. 18 |
| E3 | Heater override function engaged | See Heater Override section | p. 18 |
Maintenance and reset
- Unplug the unit from the wall to reset the memory. p. 16
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V | Standard US household voltage | p. 4 |
| Max TV Weight | 58 lbs | Maximum weight capacity for the mantel top | p. 2, 14 |
Where to find it in the PDF
- Assembly Instructions p. 8, 9, 10, 11
- Operating Instructions p. 15, 16
- Troubleshooting p. 18
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the assembly and operation of the Pinery Large Wall Mantel electric fireplace. Before beginning, ensure all parts are present and the unit is placed on a level surface. The unit requires a 120V, 60Hz grounded outlet. Always install the included tip restraint hardware to prevent accidents. The fireplace is designed to support TVs up to 50 inches and weighing a maximum of 58 lbs.
Assembly
The assembly process takes approximately 50 minutes and requires a Phillips screwdriver. Follow these steps:
- Install front panels: Attach left and right front panels to the center panel using wooden dowels, washers, and long bolts.

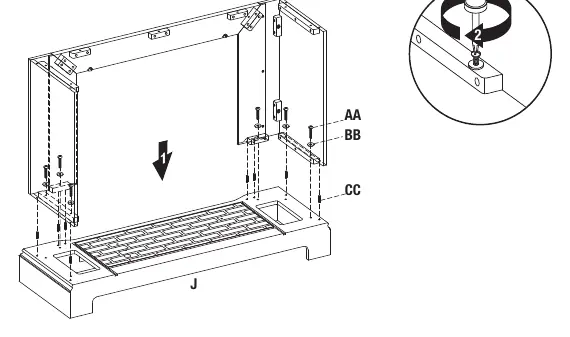

- Install outer walls: Secure the outer walls to the front assembly.
- Install base and top: Attach the base and heater unit, then secure the top panel.

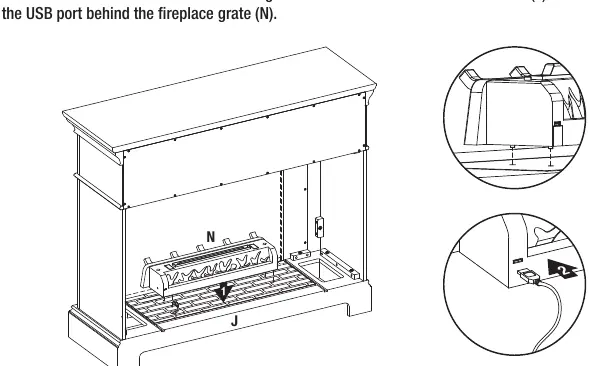

- Install fireplace components: Insert the glass front, fireplace grate, and fire log. Connect the USB cable from the heater to the port behind the grate.
- Install brick wall: Secure the fireplace brick wall using L-brackets and short screws.
- Final adjustments: Use the levelers on the base to ensure the unit is stable. Install the tip restraint hardware to a wall stud.
Operating Instructions

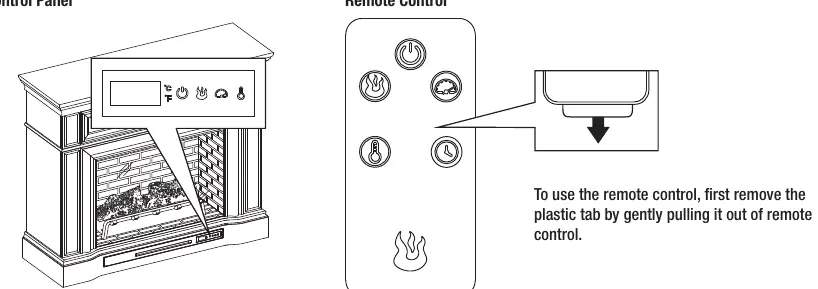

The fireplace can be controlled via the control panel or the included remote control. Remove the plastic tab from the remote before first use.
- Power: Use the Power icon to turn the unit on or off. The unit has a memory function that retains settings.
- Flame: Adjust flame brightness (5 levels) and flame speed (5 levels).
- Heater: Adjust heater settings. The thermostat range is 65°F to 90°F (18°C to 43°C).
- Timer: Use the remote to set a sleep timer from 30 minutes to 9 hours.
- Heater Override: To prevent accidental activation, the heater can be disengaged by holding the Power icon for 20 seconds while the display flashes.
Care and Maintenance
Always turn off and unplug the unit before cleaning. Use a water-dampened soft cloth for the metal trim; do not use brass polish or household cleaners. The remote control uses a CR2025 lithium battery. If the remote stops working or range is reduced, replace the battery by sliding the compartment door open on the back of the remote.
Troubleshooting
If the unit displays error codes, follow these steps:
- E1: Overheat sensor engaged. Unplug for 15-20 minutes, then reset.
- E2: Thermostat sensor issue. Unplug for 15-20 minutes, then reset.
- E3: Heater override is engaged. See the Heater Override section in the manual.
- No power: Check that the cord is securely plugged into a 120V outlet.
Manufacturer information
Home Decorators Collection
Practical help
Common problems
Error E1 displayed
Overheat sensor engaged. Unplug unit, wait 15-20 minutes, then plug back in.
Error E2 displayed
Thermostat sensor issue. Unplug unit, wait 15-20 minutes, then plug back in.
Error E3 displayed
Heater override function is engaged. See Heater Override section on page 16.
Remote control not working
Replace the CR2025 battery.
Before use
- Verify all parts are present using the package contents list
- Ensure you have a Phillips screwdriver
- Place unit on a level surface
- Install tip restraint hardware to a wall stud
- Ensure a 120V, 60Hz grounded outlet is available
Specs in practice
- Weight Limit
- Maximum 58 lbs (26.3 kg) for TV; do not exceed.
- Thermostat Range
- 65°F to 90°F (18°C to 43°C).
Images and diagrams
- Assembly steps 1-11 illustrate hardware placement and panel alignment.
- Control panel and remote icons show power, flame, heater, and timer functions.
- Battery replacement diagram shows the compartment on the back of the remote.
Model compatibility
- Fits most plasma and LCD TVs up to 50 inches.
- Not for use in bathrooms, laundry areas, or outdoors.
- Do not use with extension cords or power strips.
