User Manual for Home Decorators Collection Keighley 52-inch Electric Fireplace TV Stand

Quick Guide from the Manual

This electric fireplace TV stand is designed for indoor use to support televisions up to 56 inches and weighing a maximum of 80 lbs. Before assembly, ensure all parts are present and you have a Phillips screwdriver. The unit requires a dedicated 120V, 15-Amp grounded outlet. Always install the included tip restraint hardware to prevent accidents.

Safety Information

• Electrical Safety: Connect only to a properly grounded 120V outlet. Do not use extension cords or power strips.
• Placement: Keep combustible materials (furniture, curtains, bedding) at least 3 feet away from the unit. Do not use in bathrooms or laundry areas.
• Stability: The unit must be placed on a level surface. Always use the provided tip restraint hardware to secure the unit to a wall stud.
• Operation: Do not block air intakes or exhaust vents. Unplug the unit before cleaning or servicing.

Assembly Instructions

The assembly process involves 13 steps. Key stages include:

• Base Assembly: Attaching the outer walls and front panels to the base using wooden dowels, washers, and long bolts.

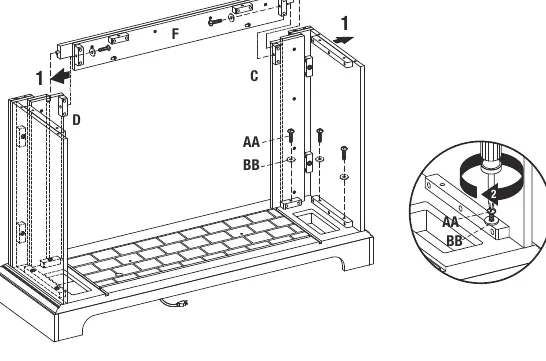

• Center Panel: Installing the center panel between the front panels.
• Top Installation: Securing the top panel to the outer walls.
• Fireplace Components: Installing the glass front, fireplace grate, and fire log.
• Heater Installation: Attaching the brick wall and heater top panel.
• Final Adjustments: Using the levelers on the base to ensure the unit is stable and attaching the tip restraint hardware.

Operating Instructions

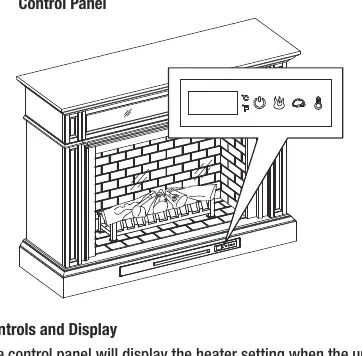

The unit can be controlled via the control panel or the included remote control.

• Power: Press the Power icon to turn the unit on or off. The unit has a 40-second cool-down cycle when powered off.
• Flame Settings: Adjust flame brightness and speed using the respective icons.
• Heater: Use the Heater icon to adjust settings. The thermostat range is 65°F to 90°F (18°C to 43°C).
• Timer: The Sleep Timer (remote only) allows you to set a countdown from 30 minutes to 9 hours.
• Heater Override: To prevent accidental activation, you can disengage the heater by turning the power off, then pressing and holding the Power icon for 20 seconds until 'E3' displays.

Care and Maintenance

• Clean metal trim with a water-dampened soft cloth; do not use brass polish.
• Periodically vacuum air intake/output vents.
• Replace the remote control battery (CR2025) by sliding the battery door open on the back of the remote.

Troubleshooting

If you encounter issues, check the following:

• Error E1/E2: Overheat or thermostat sensor issue. Unplug the unit for 15-20 minutes to reset.
• Error E3: Heater override is engaged.
• No Power: Ensure the cord is plugged into a 120V outlet and the unit is powered on.
• Remote Issues: Replace the battery or move closer to the unit (within 20 feet).
