Operator's Manual for 163cc, 196cc, and 224cc Commercial OHV Vertical Shaft Engines
Quick guide for 163cc, 196cc, and 224cc Commercial OHV Vertical Shaft Engines. Includes setup, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for operating and maintaining 163cc, 196cc, and 224cc Commercial OHV Vertical Shaft Engines. Before operating, ensure you have read all safety instructions. The engine is shipped without fuel or oil. Always check oil levels before use and perform maintenance according to the schedule to ensure engine longevity.
Safety Information
Warning: Gasoline is extremely flammable and explosive. Always refuel outdoors in a well-ventilated area with the engine off and cool. Never smoke or allow sparks near fuel. Keep the engine and equipment free of debris to prevent fire hazards. Never modify the engine governor settings.
Setup
Fuel and Oil: The engine is shipped without fuel or oil. Use a 4-stroke, high-detergent, premium quality motor oil (minimum SJ grade). SAE 10W-30 is recommended for general use. Oil capacity is 500 ml (17 oz). Use unleaded gasoline with a minimum of 87 octane. Do not use E15 or E85 fuel.
Operation
Identify your starting system (Auto-Choke, Primer, or Manual Choke) to follow the correct procedure. For all systems, ensure the blade control is engaged (if on a mower) and the spark plug wire is connected. If using an electric start, ensure the key is fully inserted. If the engine fails to start, check fuel levels, spark plug connection, and ensure the fuel shut-off valve is open.
Maintenance and Storage
Regular maintenance is essential for performance. Follow the maintenance schedule provided in the manual, including checking oil levels every 5 hours, changing oil, servicing the air filter, and checking the spark plug. When storing for more than 30 days, use a fuel stabilizer or run the engine until the fuel tank is empty to prevent carburetor damage.
Troubleshooting
If the engine fails to start, check for a disconnected spark plug, empty fuel tank, or closed fuel shut-off valve. If the engine runs erratically, check for a loose spark plug boot, dirty air cleaner, or blocked fuel filter. Always allow the engine to cool before performing any maintenance or cleaning.
Manufacturer information
Honda Motor Co., Ltd.
Practical help
Common problems
Engine fails to start
Check if blade control is engaged, spark plug boot is connected, fuel tank is full, fuel shut-off valve is open, or if the engine needs priming/choking.
Engine runs erratic
Check for loose spark plug boot, blocked fuel filter, plugged gas cap vent, dirty air cleaner, or if choke is applied.
Engine overheats
Check if oil level is low or if airflow is restricted by debris.
Engine stalls with full tank
The carbon filter in the fuel cap may be dirty or blocked; replace the fuel cap.
Before use
- Check engine oil level on a level surface.
- Ensure fuel tank is filled with fresh, clean gasoline.
- Verify spark plug wire is securely connected.
- Ensure all shields and guards are in place.
- Clear debris from engine and muffler area.
- Ensure blade control is engaged (if applicable).
Specs in practice
- Oil Capacity
- 500 ml (17 oz) of 4-stroke motor oil.
- Fuel Requirement
- Unleaded gasoline, minimum 87 octane. No E15 or E85.
- Spark Plug Gap
- 0.030 in (0.76 mm).
Images and diagrams

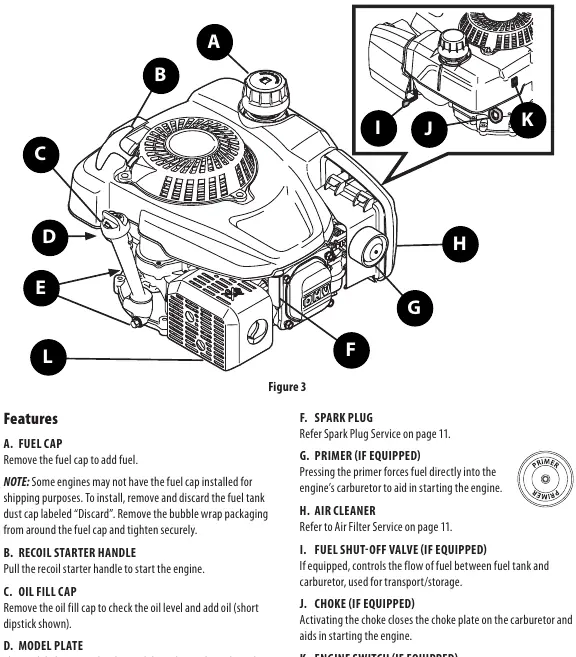

- Figure 3: Identifies key engine components like fuel cap, oil fill, spark plug, and air cleaner.
- Figure 4, 5, 6: Illustrates starting procedures for different systems (Auto-choke, Primer, Manual).
- Figure 8: Shows oil drain plug location.
- Figure 9: Shows air filter cover removal.
- Figure 10, 11: Shows spark plug removal and gap measurement.
Model compatibility
- Engine models are designed for specific outdoor power equipment.
- Not approved for use in non-approved applications.
- Modifications or misuse will void the engine warranty.
