Installation Instructions for Honda Body Mount Shield 08R70-K1Z-J10
Official installation guide for the Honda Body Mount Shield (08R70-K1Z-J10) designed for '18 PCX150/A motorcycles. This guide covers the parts list, step-by-step mounting procedures, and essential safety precautions.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides installation instructions for the Honda Body Mount Shield (Part No. 08R70-K1Z-J10) on '18 PCX150/A motorcycles. Please note the following critical information before beginning:
- Compatibility: This accessory is designed for the '18 PCX150/A. It cannot be installed at the same time as the knuckle visor.
- Safety: To prevent burns, allow the engine, exhaust system, and radiator to cool completely before starting the installation.
- Professional Installation: Due to the requirement for specialized knowledge and tools, it is recommended to have this accessory installed by a qualified Honda dealer.
- Service Manual: Refer to the motorcycle's Service Manual for torque values of removed parts.
Parts List
Before starting, ensure all parts are present as listed in the kit:
- Body mount shield
- Right and left screen stays
- Master cylinder holders
- Various bolts, washers, collars, and nuts (refer to the parts diagram for specific quantities and part numbers)
Installation
- Preparation: Refer to the Service Manual for the motorcycle and remove the necessary parts as shown in the manual.

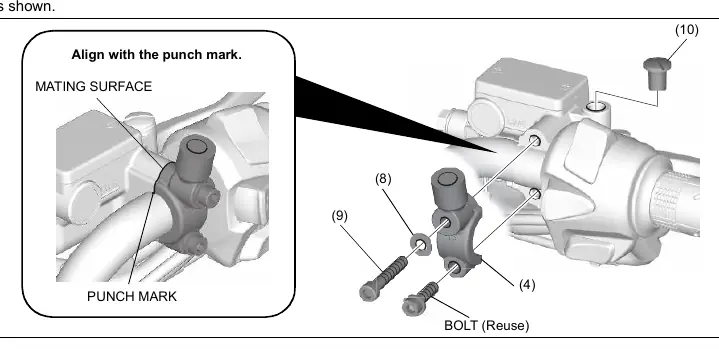

- Master Cylinder Holder: Install the master cylinder holder. Ensure the punch mark on the holder aligns with the mating surface.

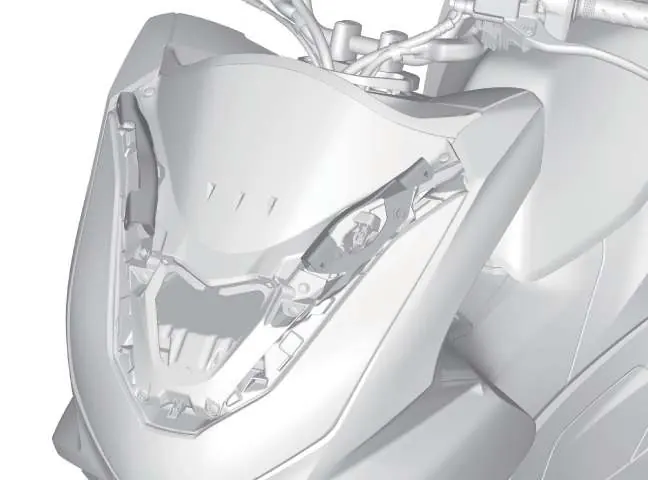

- Screen Stays: Install the left and right screen stays as indicated in the diagrams.

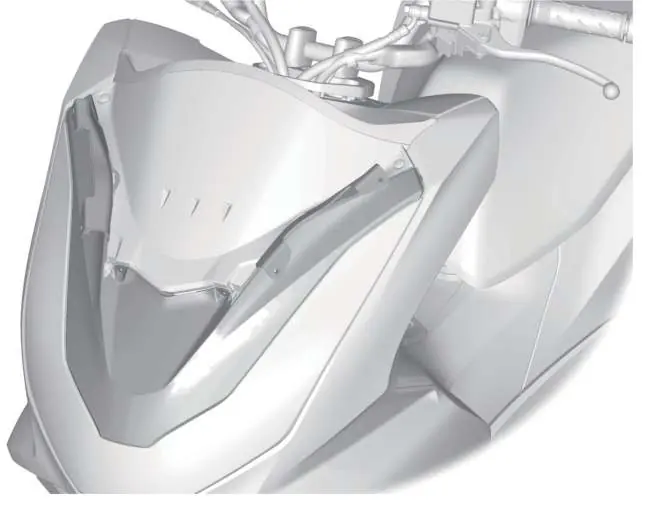

- Shield Mounting: Secure the body mount shield using the provided bolts, collars, and washers. Ensure all components are aligned correctly.
- Reassembly: Reinstall the motorcycle's parts in the reverse order of removal. Ensure that no wiring harnesses are caught or pulled too tight during reassembly.
Final Adjustments
After installation, perform the following checks:
- Adjust the mirror to a position where viewing the rear area is possible.
- Turn the handlebar fully to the left and right to confirm that the mirror does not interfere with the body mount shield.
- Maintain a minimum distance of 10 mm between the mirror and the body mount shield.
Manufacturer information
Honda Motor Co., Ltd.
Practical help
Common problems
Knuckle visor interference
This item cannot be installed at the same time as the knuckle visor.
Engine/exhaust heat
Allow the engine, exhaust system, and radiator to cool completely before starting installation to prevent burns.
Mirror interference
After installation, turn the handlebar left and right to ensure the mirror does not hit the shield; maintain a 10mm distance.
Before use
- Verify the motorcycle model is '18 PCX150/A.
- Ensure you have the Service Manual for torque specifications.
- Check that the knuckle visor is not currently installed.
- Allow the motorcycle to cool down completely.
Specs in practice
- 08R70-K1Z-J10
- Official Honda part number for the Body Mount Shield.
Images and diagrams
- The parts list diagram identifies 14 components, including the shield, stays, and various bolts/collars.
- Installation steps show the specific alignment of the master cylinder holder and punch marks.
Model compatibility
- Compatible with '18 PCX150/A.
- Not compatible with knuckle visor.
