AeroBall Customs Civic 10th Gen Full Body Kit Installation Guide
Step-by-step installation instructions for the AeroBall Customs rear diffuser kit on a 10th Generation Honda Civic, including tool requirements and mounting procedures.
Table of contents
Manual images
Jump to the sectionProduct Overview
The AeroBall Customs full body kit is designed for the 10th Generation Honda Civic. This guide covers the installation of the rear diffuser and side pod components. Proper installation requires basic mechanical skills and the use of power tools to secure the components to the vehicle's rear bumper.
Preparation and Tools

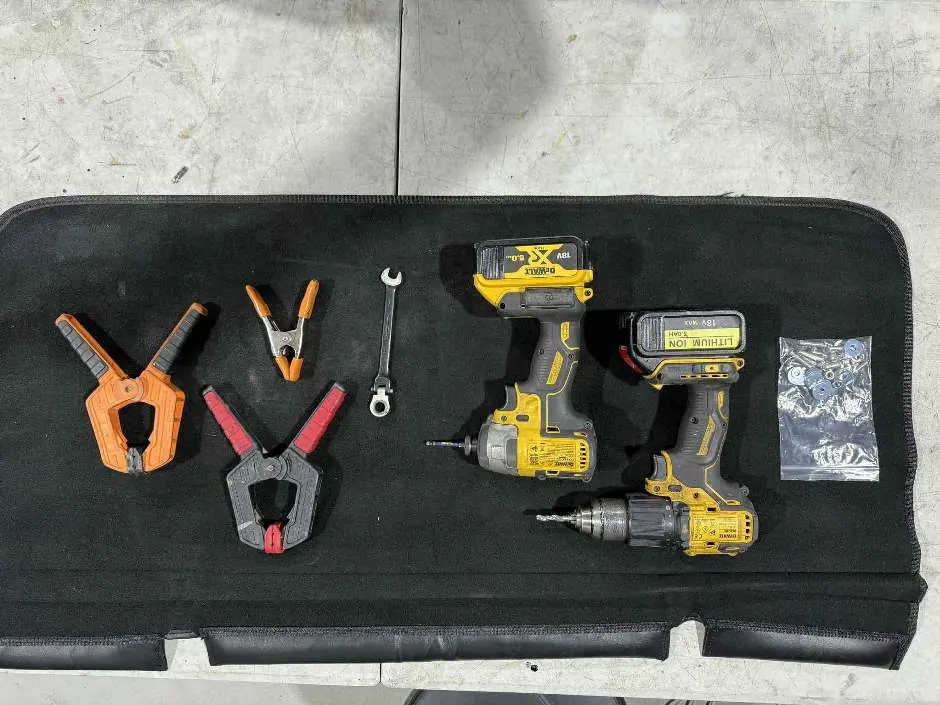

Before beginning the installation, ensure you have the following tools and materials ready:
- 4mm Hex bit and driver
- 6.5mm drill bit and drill
- 10mm spanner
- Clamps
- Mounting hardware (included with the kit)

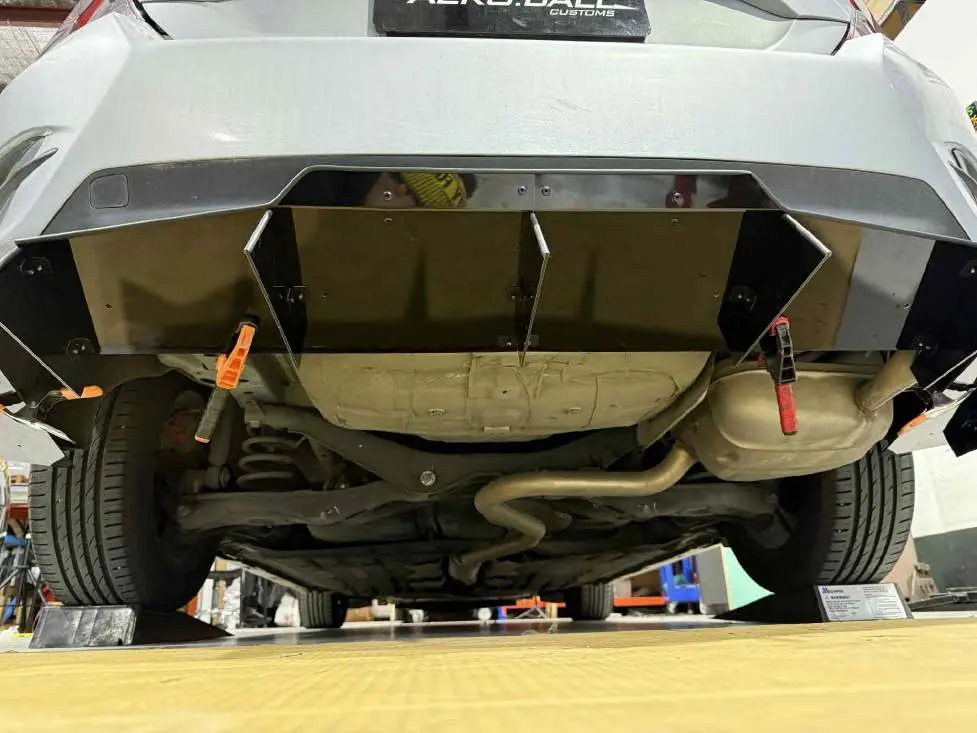

It is recommended to raise the vehicle safely to gain better access to the rear bumper area. Begin by positioning the diffuser pieces against the rear bumper to determine the desired fit and alignment. Use clamps to hold the diffuser in place while you adjust its position relative to the bumper.
Installation Procedure

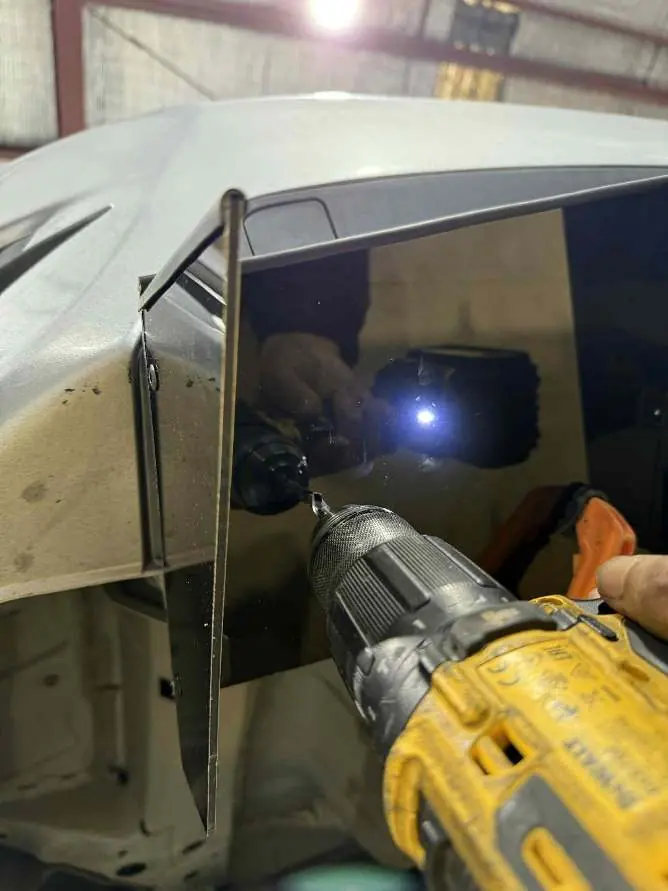

Once the diffuser is aligned, use the 6.5mm drill bit to create mounting holes in the rear bumper. Note that some diffuser models may come with pre-drilled holes; if so, use these as a guide for drilling into the bumper. When installing the hardware, place the larger washer on the side contacting the diffuser and the smaller washer on the side contacting the rear bumper. Secure the nuts by hand initially, then use the 4mm hex bit and 10mm spanner to tighten them. Ensure the mount is snug but avoid overtightening to prevent damage to the bumper or the kit components. If your kit includes side pod pieces, repeat the installation process for those sections. Some vehicle configurations may require the removal of stock clips to ensure a proper fit.
Manufacturer information
Honda Motor Co., Ltd.
Practical help
Common problems
Diffuser does not fit flush against the bumper
Check if stock clips need to be removed from the vehicle's bumper area for a proper fit.
Difficulty aligning the diffuser
Use clamps to hold the diffuser in the desired position before drilling any holes.
Before use
- Raise the vehicle safely to access the rear bumper.
- Verify all tools (4mm hex, 6.5mm drill, 10mm spanner) are available.
- Position the diffuser pieces to test fitment.
- Clamp the diffuser securely to the bumper before drilling.
- Check if your specific diffuser model has pre-drilled holes.
Specs in practice
- 6.5mm Drill Bit
- Required size for creating holes in the rear bumper for mounting hardware.
- 10mm Spanner
- Used to hold the nut in place while tightening the bolt.
Images and diagrams
- The kit requires a specific washer orientation: larger washer against the diffuser, smaller washer against the bumper.

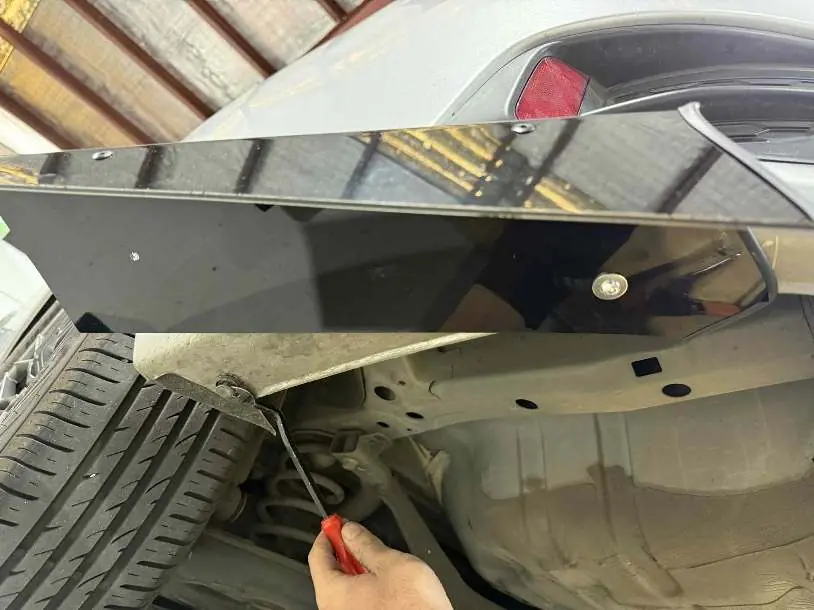

- Side pods may require the removal of existing factory clips for installation.
Model compatibility
- Designed specifically for the 10th Generation Honda Civic.
- Installation steps may vary slightly depending on the specific diffuser model.
