Husqvarna 1055GN 5500 Watt Portable Generator
Comprehensive user manual for the Husqvarna 1055GN 5500 Watt portable generator, covering safety, assembly, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Husqvarna 1055GN is a 5500-watt portable generator designed to provide reliable electrical power for compatible lighting, appliances, tools, and motor loads. It features a single-cylinder engine and a revolving field AC generator. This unit is intended for outdoor use only and requires final assembly before initial operation.
Safety Information
Danger: Using a generator indoors can kill you in minutes. Generator exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Always operate the generator outdoors, far away from windows, doors, and vents. Never run the engine in an enclosed area, including garages or RV compartments.
Warning: The generator produces hazardous voltage. Failure to isolate the generator from the power utility can result in death or injury to utility workers due to backfeed. Always use approved transfer equipment for backup power applications. Additionally, fuel and its vapors are extremely flammable; never refuel while the engine is hot or running.
Assembly and Setup
The generator requires the installation of the wheel kit and support legs before use. Ensure the unit is placed on a level surface. Before starting, add the provided engine oil and fill the tank with fresh, unleaded gasoline. Do not overfill the fuel tank to allow for expansion.
Operation
To start the engine, ensure the fuel valve is in the ON position, set the choke to CHOKE, and turn the rocker switch to ON. Pull the recoil starter handle slowly until resistance is felt, then pull rapidly. Once started, gradually move the choke lever to the RUN position. To stop the engine, turn off and unplug all electrical loads, let the engine stabilize at no-load, turn the rocker switch to OFF, and move the fuel valve to the OFF position.
Maintenance
Regular maintenance is essential for performance and longevity. Change the engine oil after the first 5 hours and every 50 hours thereafter. Service the air cleaner every 25 hours, and inspect the spark plug and spark arrester every 100 hours. Always keep the generator clean and free of debris, especially around cooling air slots.
Troubleshooting
If the generator fails to produce power, check the circuit breakers. If the engine runs poorly or fails to start, verify the fuel level, check the air cleaner, and ensure the spark plug wire is connected. For persistent issues, contact an authorized service dealer.
Manufacturer information
Husqvarna
Practical help
Common problems
Engine is running, but no AC output is available.
Reset the circuit breaker or check for a faulty connected device.
Engine runs well at no-load but bogs down when loads are connected.
Check for a short circuit in the load or ensure the generator is not overloaded.
Engine will not start or runs rough.
Check if the rocker switch is ON, fuel valve is open, air cleaner is clean, or if the spark plug needs replacement.
Engine shuts down during operation.
Check fuel level and ensure the unit is on a level surface to prevent low-oil protection shutdown.
Engine lacks power.
Reduce the electrical load or replace a dirty air filter.
Before use
- Ensure the generator is on a level surface.
- Check engine oil level and add if necessary.
- Fill the fuel tank with fresh, unleaded gasoline.
- Ensure the spark plug wire is connected.
- Verify that the air cleaner is in place.
- Ensure no electrical loads are connected before starting.
- Check that cooling air slots are unobstructed.
Specs in practice
- Starting Wattage
- 6,875 watts; the short burst of power needed to start motor-driven tools.
- Rated Wattage
- 5,500 watts; the continuous power the generator can supply.
- Fuel Capacity
- 7 U.S. gallons (26.5 L).
- Oil Capacity
- 28 Ounces (0.83 Liters).
- Rated Frequency
- 60 Hertz.
Images and diagrams
- The main unit diagram shows the location of the fuel tank, engine, alternator, and control panel.

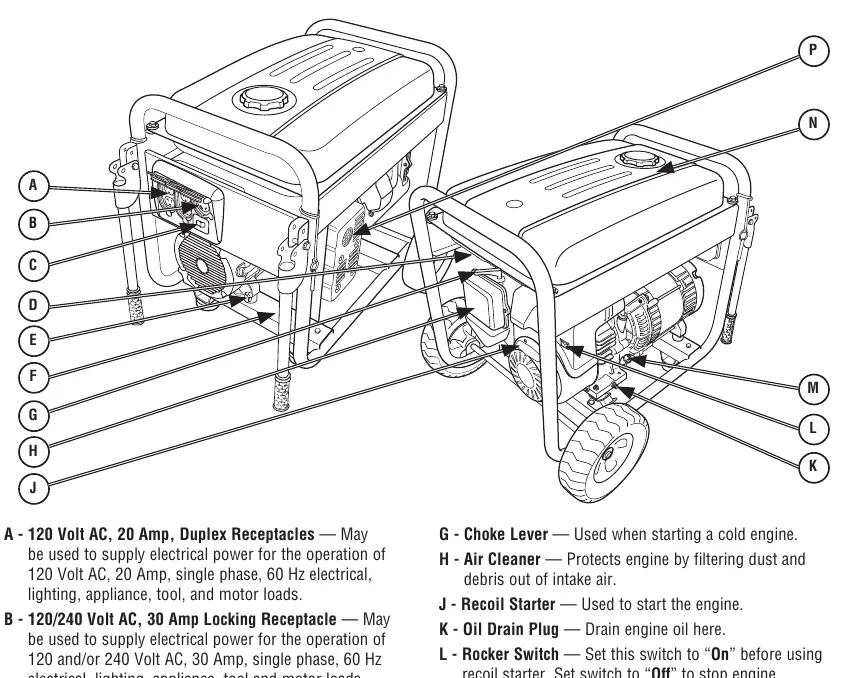

- The control panel diagram details the placement of the 120V duplex receptacles, 120/240V locking receptacle, and circuit breakers.

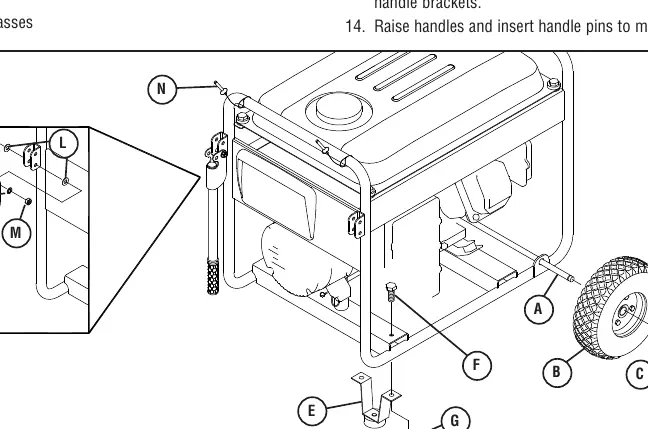

- The wheel kit diagram illustrates the assembly of the axle, wheels, and support legs.
- The fuel valve diagram shows the sediment cup, screen, and O-ring for maintenance.
- The air cleaner diagram shows the cover, cartridge, and base for servicing.
Model compatibility
- Not for use in mobile equipment or marine applications.
- Requires a NEMA L14-30 plug for the 120/240V locking receptacle.
- Use only high-quality, well-insulated, grounded extension cords.
- Not intended for 3-phase or 50 Hz loads.
Manual page author
Emily Carter
User documentation editor
Prepares concise manual descriptions and highlights the most useful setup, operation, and maintenance information for readers.
