User Manual for Husqvarna 120iBV Garden Blower/Vacuum
Quick guide for the Husqvarna 120iBV garden blower/vacuum. Includes assembly, operation, maintenance, troubleshooting, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Husqvarna 120iBV is a battery-powered garden blower and vacuum. This guide provides essential information for safe and efficient operation. Always read the full manual before use.

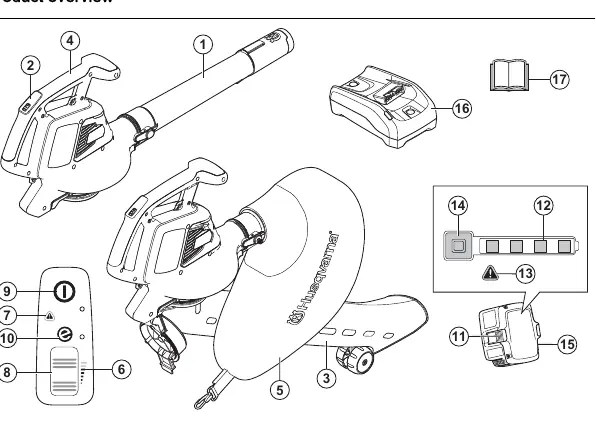

Product Overview
The unit features a blower tube, vacuum tube, collection bag, keypad, and power wheel. It is powered by a 36V BLDC motor.
Safety
WARNING: This product can be dangerous and cause serious injury or death. Always use approved eye protection and follow safety instructions. Keep bystanders at least 15 meters away. Do not use in bad weather (fog, rain, strong winds).
Assembly
Blower Mode
- Push the blower tube onto the blower outlet until it clicks.
- Install the blower nozzle onto the tube until it clicks.
- Close the intake cover on the blower inlet until it clicks.
Vacuum Mode
- Align slots on the upper vacuum tube with tabs on the lower vacuum tube and push until they click.
- Tighten the screw.
- Install the vacuum tube to the vacuum inlet until it clicks.
- Attach the collection bag to the vacuum outlet and connect the straps.
Operation
Battery
Only use recommended 40-B series batteries. Charge the battery before first use. The battery will not charge if its temperature is above 50°C.
Starting and Stopping
- Start: Press and hold the start/stop button until the green LED lights up. Hold the handles and scroll the power wheel up to start.
- Stop: Scroll the power wheel down to stop. Press and hold the start/stop button until the green LED goes off.
- ECO Mode: Scroll the power wheel down to start ECO mode to increase battery life.
Maintenance
Follow the maintenance schedule for daily, weekly, and monthly tasks. Keep the product clean, check for loose screws, and ensure the air intake is free from debris. Clean the product with a dry cloth after use.
Troubleshooting
If the red error LED flashes, check for temperature deviation, ensure the tube or fan cover is correctly assembled, or check for battery errors. If the product does not start, clean the battery connectors.
Technical Data
The 120iBV features a 36V brushless motor, weighs 4.6 kg (without battery), and has a guaranteed sound power level of 100 dB(A).
Manufacturer information
Husqvarna
Practical help
Common problems
Red error LED flashes
Check for temperature deviation, ensure the tube or fan cover is correctly assembled, check for battery errors, or contact your servicing dealer.
Product does not start
Clean dirt from the battery connectors using compressed air or a soft brush.
Before use
- Check the air inlet for dirt and cracks.
- Clean off grass and leaves from the product using a brush.
- Ensure all nuts and screws are tight.
- Ensure the battery is fully charged.
- Verify that the collection bag is fully closed (if in vacuum mode).
Specs in practice
- Weight without battery
- 4.6 kg
- Guaranteed sound power level
- 100 dB(A)
- Air flow (normal mode)
- 6.7 m³/min
Images and diagrams
- The product overview diagram identifies the blower tube, keypad, vacuum tube, handle, collection bag, and battery components.
Model compatibility
- Only use Husqvarna 40-B series batteries.
- Only use 40-C80 battery chargers.
