User Manual for Husqvarna 120iBV Leaf Blower/Vacuum
Quick guide for the Husqvarna 120iBV leaf blower/vacuum. Includes assembly, operation, maintenance, and troubleshooting steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Husqvarna 120iBV is a battery-powered garden blower/vacuum. This guide provides essential information for safe and efficient operation.
Product Overview

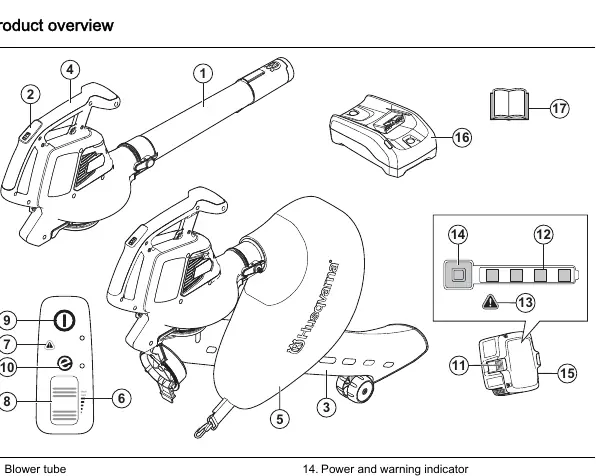

The unit consists of a blower tube, keypad, vacuum tube, collection bag, and battery compartment. The keypad includes a start/stop button, power wheel, and indicators for battery status and warnings.
Assembly
Blower mode: Push the blower tube onto the outlet until it clicks. Install the blower nozzle until it locks.

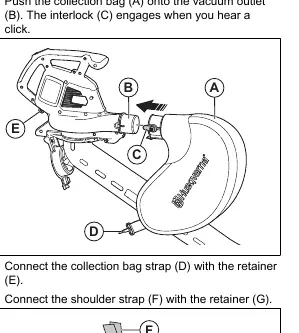

Vacuum mode: Align the upper and lower vacuum tubes, push together until they click, and tighten the screw. Attach the vacuum tube to the inlet until it clicks. Attach the collection bag to the vacuum outlet and connect the straps.
Operation
Before use, check the air inlet for debris. Insert the battery into the holder until it clicks. Press and hold the start/stop button until the green LED lights up. Use the power wheel to start the blower or vacuum mode.
Maintenance
Regular maintenance is required for safe operation. Clean the external surface with a dry cloth. Check nuts and screws for tightness. Clean the air intake and airflow slots with a soft brush. Empty and clean the collection bag after use.
Troubleshooting
If the red error LED flashes, check for temperature issues, ensure the tube or fan cover is correctly assembled, or check the battery. If the product does not start, clean the battery connectors.
Manufacturer information
Husqvarna
Practical help
Common problems
Red error LED flashes
Check for temperature deviation, ensure tube or fan cover is correctly assembled, or replace/charge the battery.
Product does not start
Clean dirt from battery connectors using compressed air or a soft brush.
Before use
- Check air inlet for dirt and cracks
- Ensure product works correctly
- Check all nuts and screws for tightness
- Ensure battery is fully charged
Specs in practice
- Weight without battery
- 4.6 kg
- Sound power level (guaranteed)
- 100 dB(A)
Images and diagrams
- Product overview showing blower tube, keypad, vacuum tube, collection bag, and battery components.
Model compatibility
- Only use Husqvarna original 40-B series batteries.
- Only use 40-C80 battery chargers.
