User Manual for Ideal Lux Pop SP10 Pendant Light
Quick guide for the Ideal Lux Pop SP10 pendant light. Includes assembly instructions, safety warnings, electrical specifications, and installation steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ideal Lux Pop SP10 is a pendant light designed for indoor use. Installation must be performed by a qualified electrician in accordance with local regulations. Always isolate the power supply before beginning any installation or maintenance work.
Assembly instructions
- Preparation: Ensure the main power is switched off at the circuit breaker.
- Mounting: Secure the mounting bracket to the ceiling using appropriate screws and plugs suitable for the ceiling material.
- Wiring: Connect the electrical wires to the terminal block, ensuring correct connection of Live (L), Neutral (N), and Earth (Ground).
- Canopy Attachment: Attach the canopy to the mounting bracket and secure it with the provided screws.
- Rod Assembly: Assemble the rods (x5) and attach them to the canopy and the light fixture structure.
- Final Secure: Ensure all screws are tightened firmly to avoid contact problems.
- Bulb Installation: Install the E27 bulbs into the sockets.

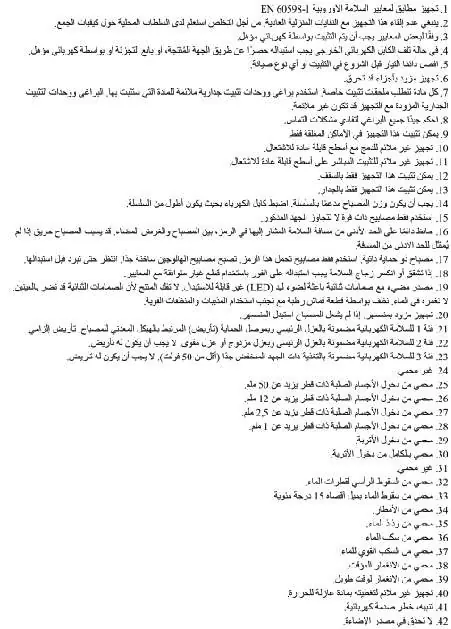

Safety guidelines
- Indoor Use Only: This fixture is not suitable for outdoor installation.
- Electrical Safety: This is a Class I device, meaning it requires an obligatory earth connection.
- Flammable Surfaces: The fixture is not suitable for direct mounting on normally flammable surfaces.
- Maintenance: If the external cable is damaged, it must be replaced exclusively by the manufacturer, distributor, or a qualified electrician.
- Cleaning: Clean with a damp cloth; avoid solvents or strong detergents.
- IP Rating: IP20 protection.
Technical specifications
- Model: Pop SP10
- Bulb Type: E27
- Max Wattage: 10 x 60W
- Voltage: 220-240V, 50/60Hz
- Protection Class: Class I
- Ingress Protection: IP20
Practical help
Common problems
Lamp does not turn on
Check the fuse or ensure the electrical connection is secure.
Loose components
Tighten all screws firmly to avoid contact problems.
Before use
- Ensure power is isolated before starting installation.
- Verify the ceiling material is suitable for the mounting accessories.
- Check that the electrical wire is longer than the chain.
- Use bulbs with a wattage not exceeding the specified maximum (60W).
- Ensure the fixture is installed by a qualified electrician.

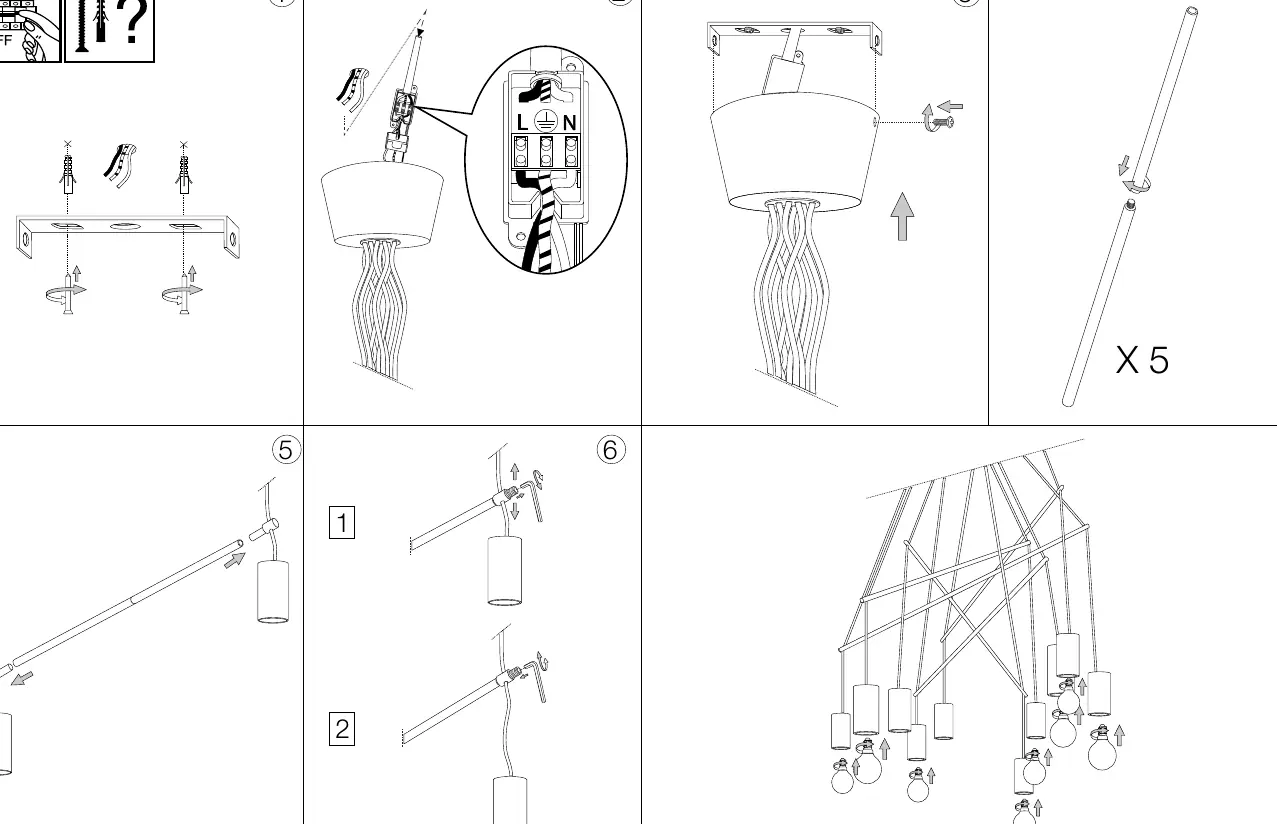

Images and diagrams
- Step 1: Mounting bracket installation.
- Step 2: Wiring connection to the terminal block.
- Step 3: Canopy attachment.
- Step 4-5: Rod assembly and fixture connection.
- Step 7: Final bulb installation.
Model compatibility
- Indoor use only.
- Not suitable for direct mounting on normally flammable surfaces.
- Requires earth connection.
