Assembly Instructions for IKEA ÄPPLARYD Sofa
Step-by-step assembly guide for the IKEA ÄPPLARYD sofa. Includes parts list, configuration options, and detailed installation steps for the frame, legs, and cushions.
Quick answers from the manual
Quick answer
- The IKEA ÄPPLARYD sofa requires two people for assembly. It is recommended to assemble the unit on a soft surface to prevent damage to the frame. p. 2, 12, 16
Key actions
- Assemble on a soft surface p. 2
- Use two people for assembly p. 9, 12, 16
Where to find it in the PDF
- Parts List p. 3
- Assembly Steps p. 5, 16
Table of contents
Manual images
Click an image to enlargeImportant Information
Before beginning the assembly of your IKEA ÄPPLARYD sofa, please note the following requirements:
- Two-person assembly: The assembly process requires two people to handle the frame and components safely.
- Surface protection: Assemble the sofa on a soft surface, such as a rug or carpet, to prevent damage to the frame or floor.
- Tools: Ensure you have the provided tools (hex key and specialized wrench) ready.
- Safety: Do not use power tools to tighten screws, as this may damage the furniture.

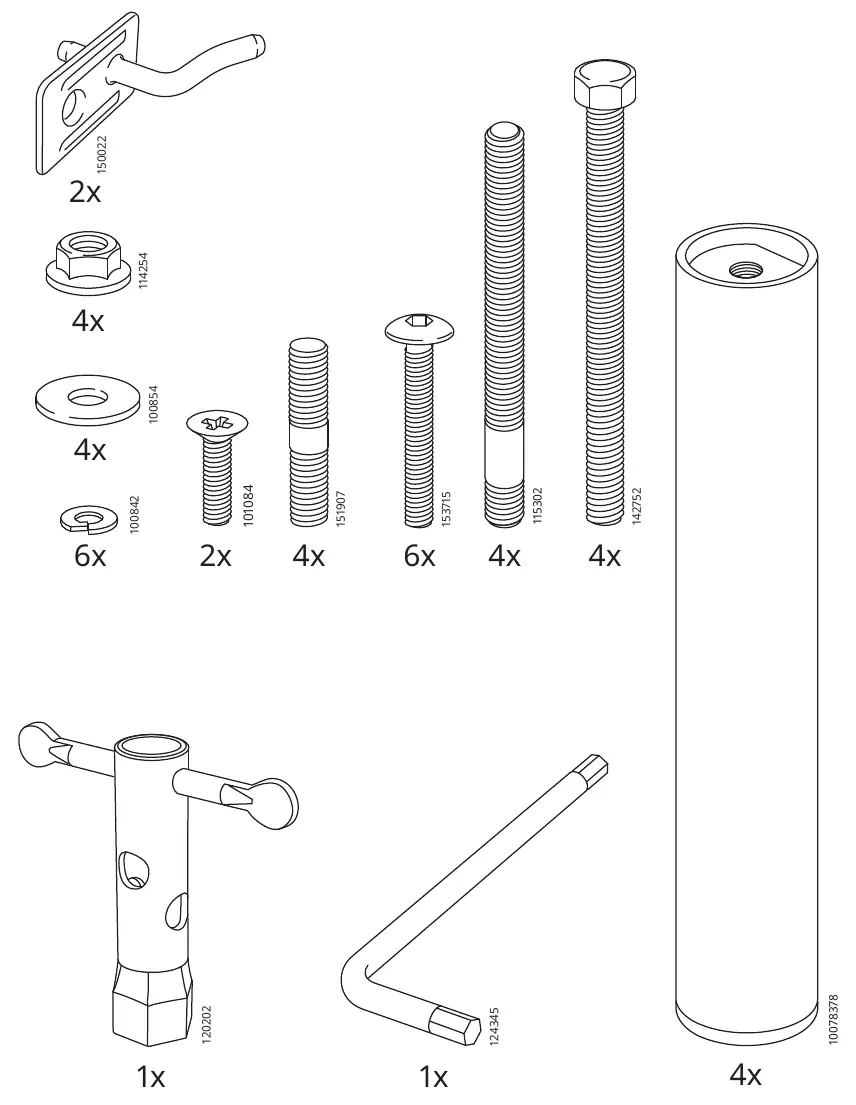

Parts List
Before starting, verify that you have all the necessary components listed on page 3 of the manual. This includes various bolts, washers, nuts, threaded rods, legs, and the provided assembly tools.
Assembly Instructions
Follow these steps in order to assemble your sofa:

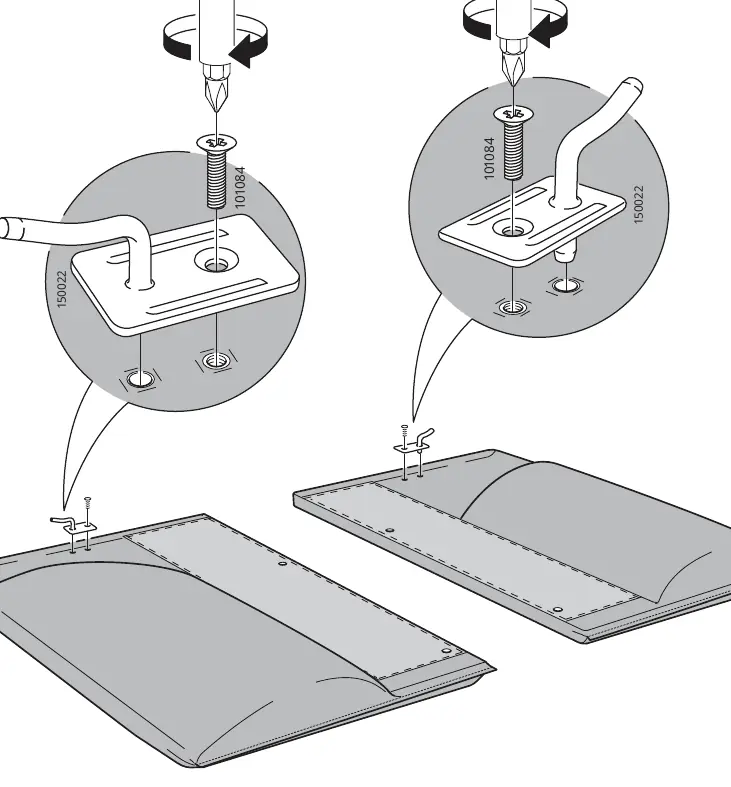

- Prepare Side Panels: Attach the brackets to the side panels using the provided screws.
- Prepare Base Frame: Insert the threaded rods into the base frame.
- Connect Frame: Align and connect the main sofa frame to the base frame.
- Secure Frame: Use the provided nuts and washers to secure the frame connections. Tighten using the provided wrench.
- Attach Side Panels: Connect the side panels to the main frame.
- Secure Back Frame: Attach and secure the back frame to the main structure.
- Install Legs: Screw the legs into the designated points on the bottom of the frame.
- Final Assembly: Once the frame is fully assembled and tightened, place the cushions onto the sofa.
Manufacturer information
IKEA
Practical help
Common problems
Missing parts
Check the parts list on page 3. If any items are missing, contact IKEA customer support.
Difficulty aligning parts
Ensure you have two people assisting with the assembly to hold components in place while the other person secures the fasteners.
Before use
- Clear a large, clean area for assembly.
- Place a rug or soft material on the floor to protect the sofa.
- Verify all parts against the list on page 3.
- Ensure two people are available for the assembly process.
- Check that all screws and bolts are tightened securely after assembly.
Images and diagrams
- Arrows indicate the direction of rotation for tightening screws.
- Crossed-out symbols indicate incorrect actions or parts that should not be used.
- The 'i' symbol indicates important information or a specific note regarding the assembly step.
Model compatibility
- This manual is specific to the IKEA ÄPPLARYD sofa series.
