Assembly Instructions for IKEA LIDHULT Sofa Frame
Step-by-step assembly guide for the IKEA LIDHULT sofa frame. Includes a parts list, connection procedures, and instructions for attaching legs and armrests.
Quick answers from the manual
Quick answer
- This document provides visual assembly instructions for the IKEA LIDHULT sofa frame, including parts identification and step-by-step connection procedures. p. 1, 14
Key actions
- Assemble on a soft surface p. 2
- Attach legs p. 9
First start
- Verify all parts against the list on page 3 before beginning assembly. p. 3
Where to find it in the PDF
- Parts List p. 3
- Assembly Steps p. 4, 14
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides visual assembly instructions for the IKEA LIDHULT sofa frame. Before beginning, ensure you have a clear, spacious area to work in. It is recommended to assemble the furniture on a rug or carpet to prevent damage to the floor and the product. Do not use power tools for assembly.
Parts list
Before starting, verify that all components are present. The manual lists the following essential hardware:
- Threaded rods (124130)
- Plastic connectors (194377)
- Legs (194208)
- Protective pads (109142)
Assembly instructions
Follow these steps to assemble the sofa frame:

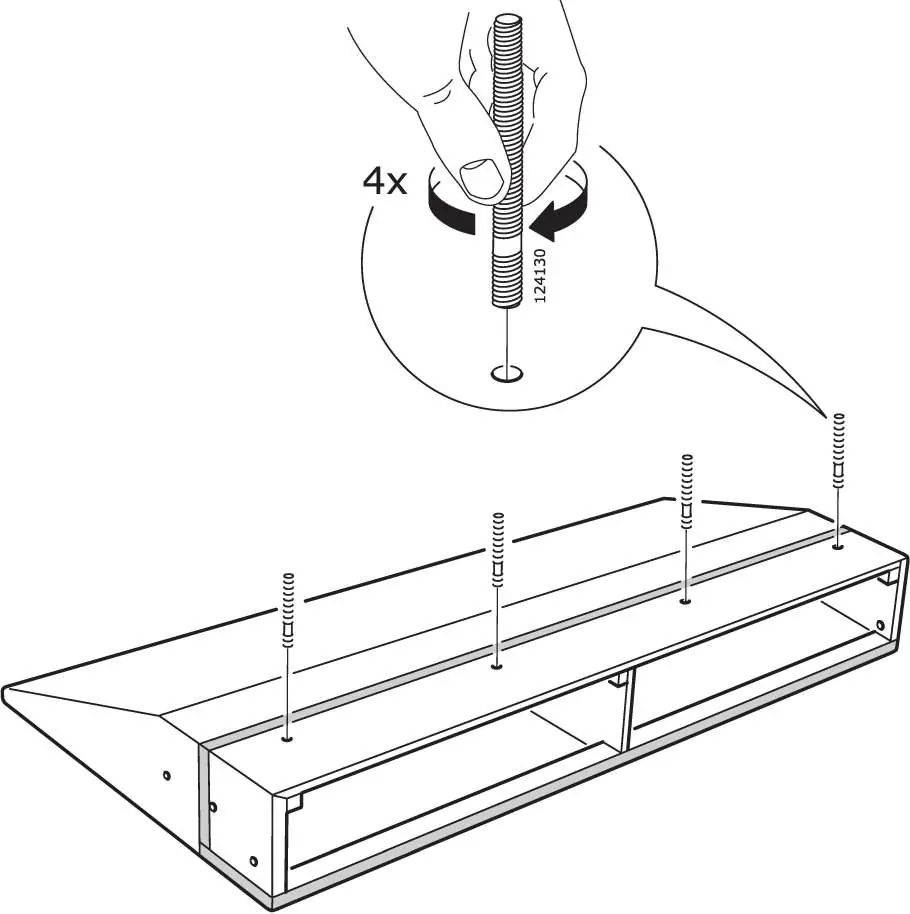

- Step 1: Screw the threaded rods (124130) into the designated holes on the frame base.
- Step 2: Align and attach the main frame section.

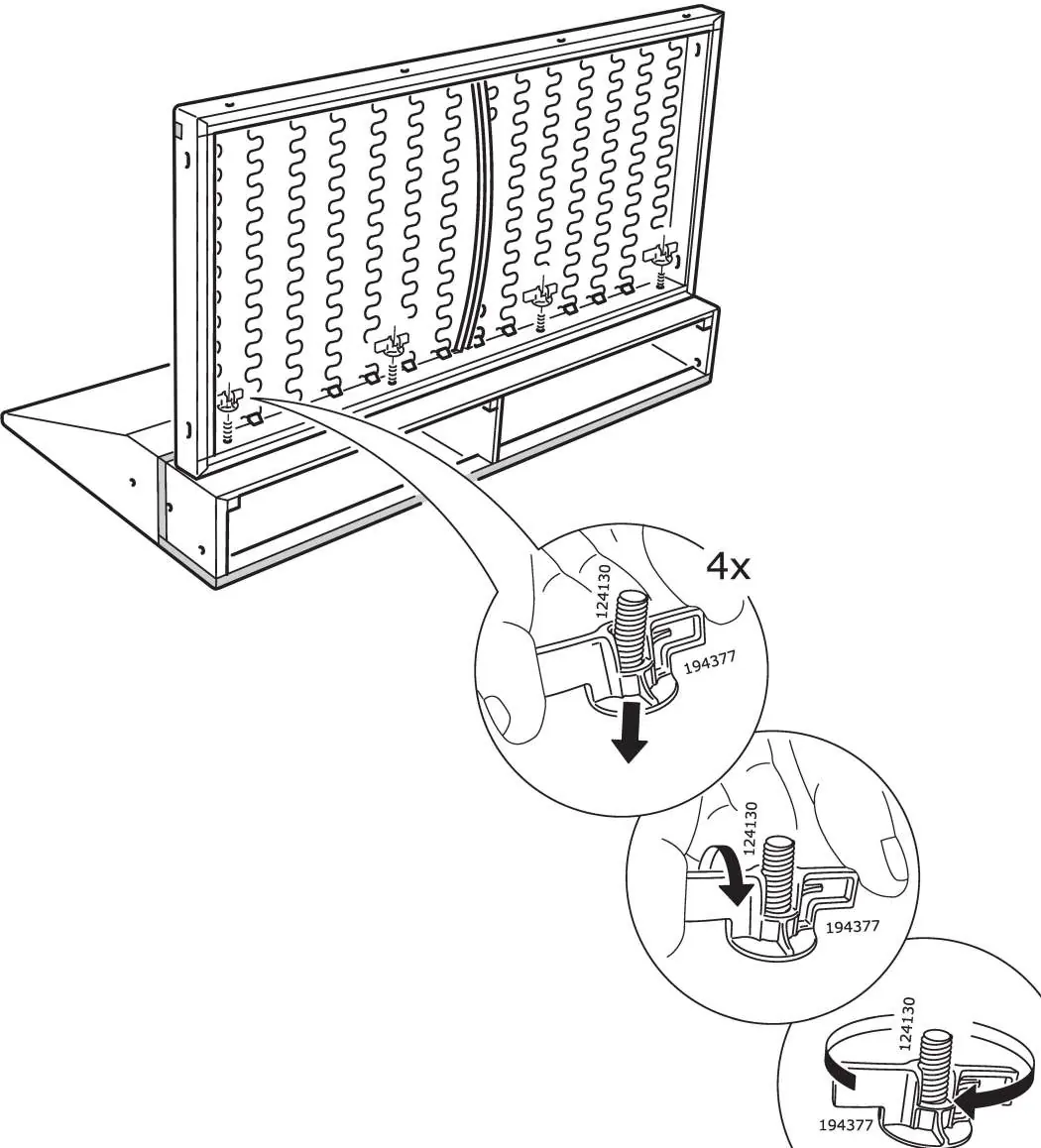

- Step 3: Secure the frame using the plastic connectors (194377) by sliding them onto the threaded rods and tightening them.
- Step 4-6: Attach the top rail to the frame structure and secure it using the remaining threaded rods and connectors.
- Step 7-8: Attach the legs (194208) to the bottom of the frame and apply the protective pads (109142).
- Step 9-14: Attach the armrests to the sides of the sofa frame, securing them with the provided threaded rods and connectors.
Manufacturer information
IKEA
Practical help
Common problems
Difficulty tightening connectors
Ensure the threaded rods are fully screwed into the frame before attempting to attach the plastic connectors.
Parts missing
Check the parts list on page 3. If items are missing, contact IKEA customer service.
Before use
- Clear a large area for assembly.
- Use a rug or carpet to protect the floor and furniture during assembly.
- Verify all parts are present according to the parts list on page 3.
- Do not use power tools.
Images and diagrams
- The manual uses pictograms to show assembly steps.
- Arrows indicate the direction of movement or insertion.
- The 'i' symbol indicates important information or a specific note.
Model compatibility
- This manual is specific to the LIDHULT sofa frame.
