Assembly Instructions for IKEA VIMLE Sofa Section

A comprehensive assembly guide for the IKEA VIMLE sofa section, including safety precautions, parts list, and step-by-step connection instructions.

Quick answers from the manual

Quick answer

  • This document is an assembly guide for connecting IKEA VIMLE sofa sections using the provided screws and wing nuts. p. 1, 2, 3, 4

Key actions

  • Assemble with two people on a soft surface. p. 2
  • Connect sections using 4 screws and 4 wing nuts. p. 3, 4

Problems and fixes

Unsure about assembly

Contact IKEA.

p. 2

Where to find it in the PDF

  • Safety and Parts p. 2
  • Assembly Steps p. 3, 4
Table of contents

Manual images

Click an image to enlarge
Safety precautions: Assemble with two people and use a soft surface. Page 2 Step 1 and 2: Inserting screws into the frame. Page 3 Step 3: Connecting sections with wing nuts. Page 4

Important information from the manual

This document provides assembly instructions for connecting IKEA VIMLE sofa sections. Please follow these guidelines to ensure safe and correct assembly.

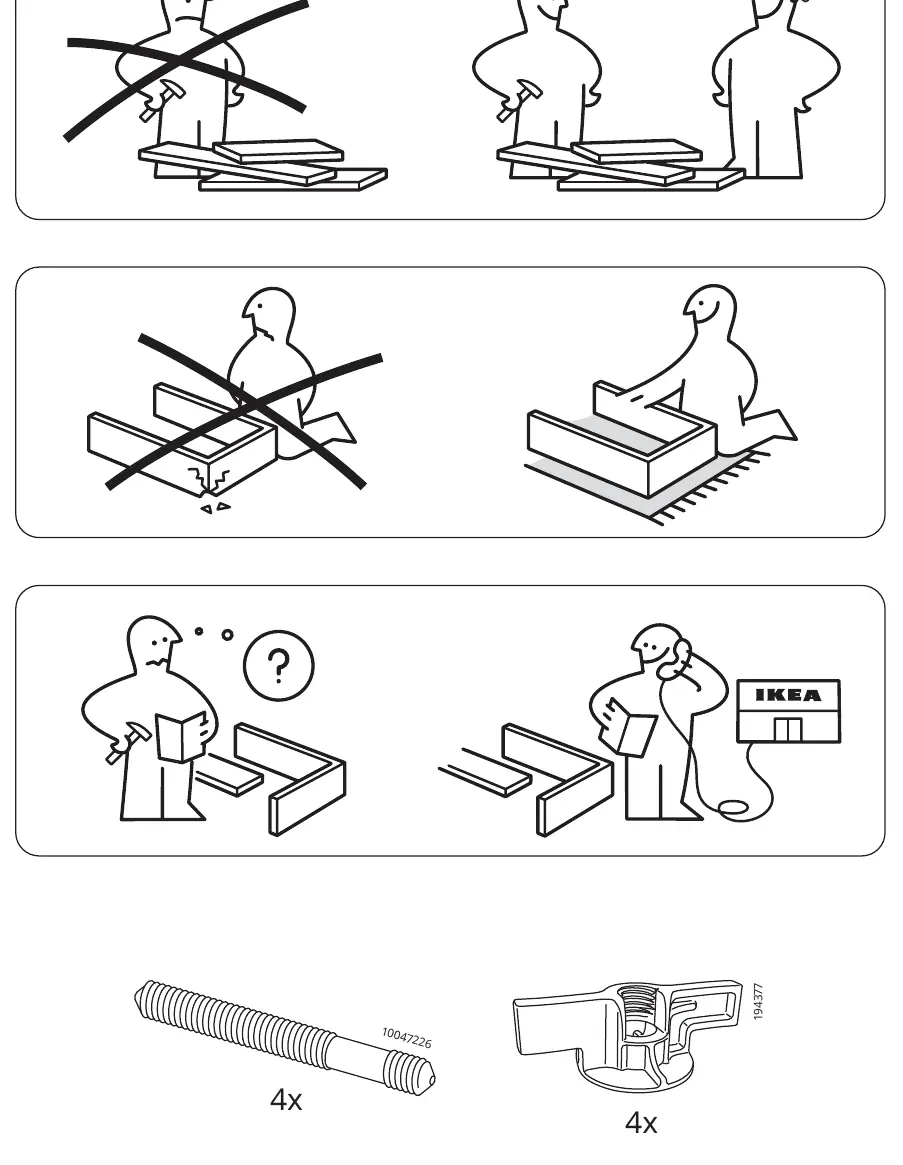

Safety precautions: Assemble with two people and use a soft surface.
Safety precautions: Assemble with two people and use a soft surface.
  • Assemble with two people: The assembly process requires two people to handle the furniture safely.
  • Protect your floor: Assemble the furniture on a soft surface, such as a rug or carpet, to prevent damage to the product or your floor.
  • Contact IKEA: If you are unsure about any part of the assembly process, contact IKEA for assistance.

Parts List

Ensure you have the following components before starting:

  • 4x Screws (Part number: 10047226)
  • 4x Wing nuts (Part number: 194377)

Assembly Steps

Follow these steps to connect the sofa sections:

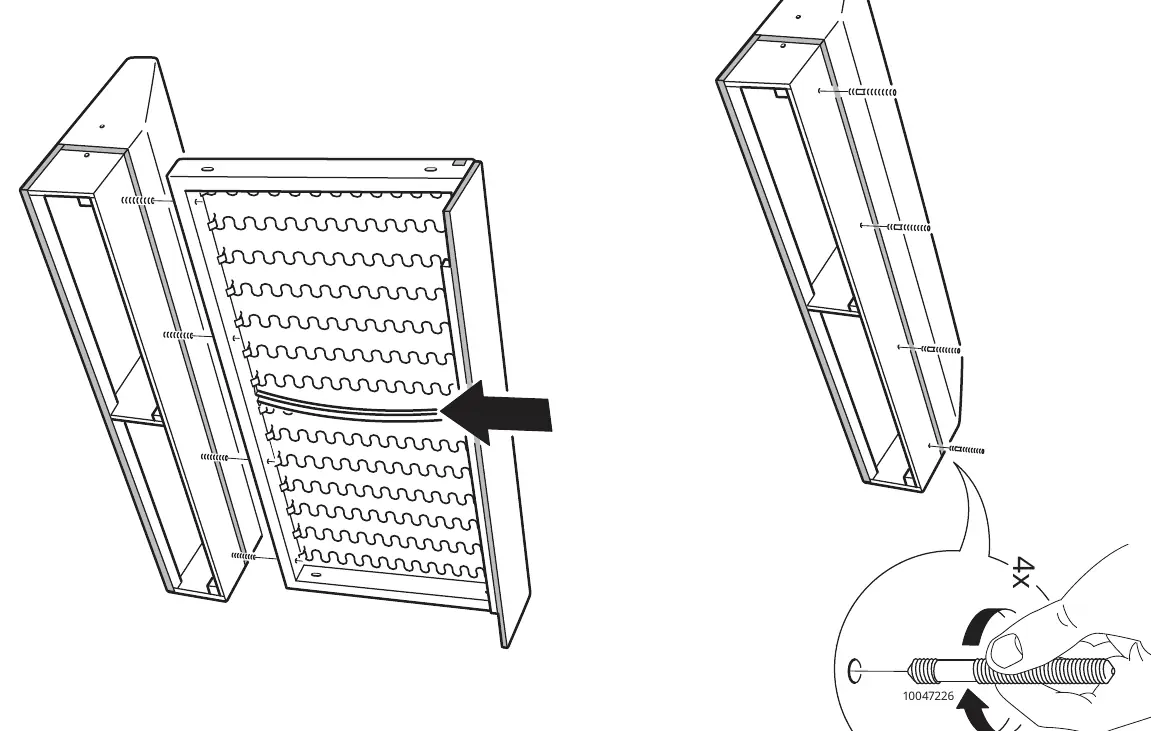

Step 1 and 2: Inserting screws into the frame.
Step 1 and 2: Inserting screws into the frame.

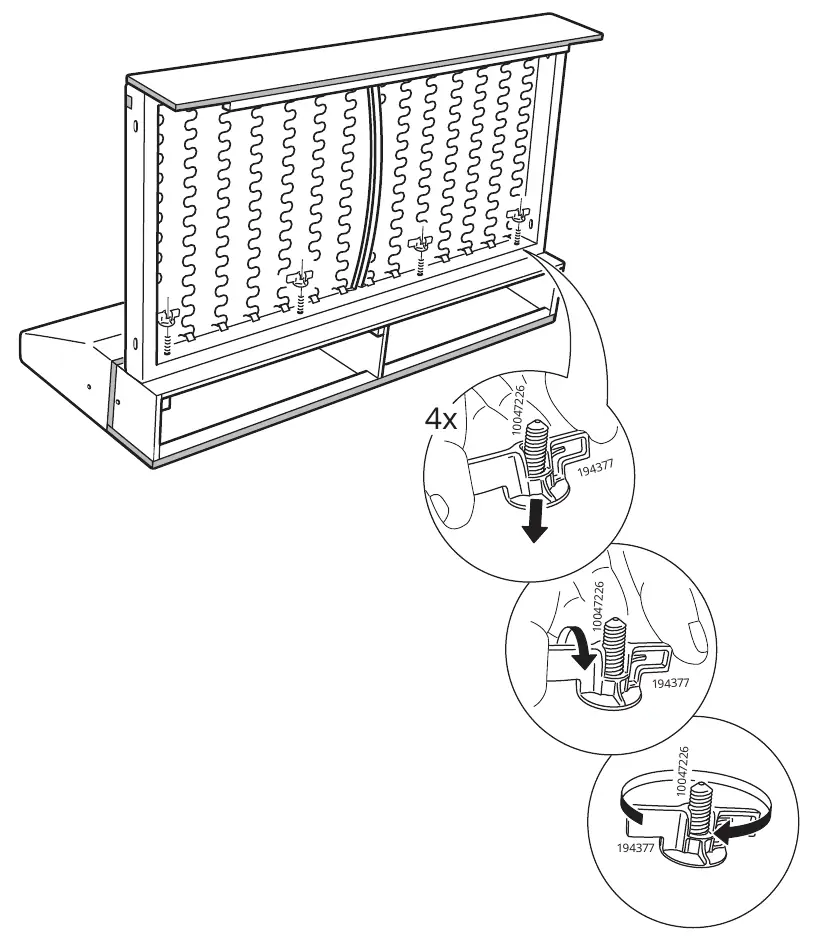

Step 3: Connecting sections with wing nuts.
Step 3: Connecting sections with wing nuts.
  1. Prepare the frame: Insert the 4 screws (10047226) into the designated holes on the side of the sofa frame.
  2. Align sections: Position the sofa sections together so that the screws from one section align with the holes in the adjacent section.
  3. Secure the connection: Once the sections are aligned, attach the 4 wing nuts (194377) onto the screws and tighten them securely by hand to lock the sections together.

Manufacturer information

IKEA

Brand profile
Manufacturer website https://www.ikea.com Support https://www.ikea.com/us/en/customer-service/

Practical help

Common problems

Missing parts or hardware

Contact IKEA customer support for replacement parts using the part numbers provided (10047226 for screws, 194377 for wing nuts).

Difficulty aligning sections

Ensure both sections are on a level surface and ask a second person to help hold the sections in place while tightening the wing nuts.

Before use

  • Assemble with two people
  • Use a soft surface (rug or carpet) to prevent damage
  • Verify you have 4x screws (10047226) and 4x wing nuts (194377)
  • Ensure the sofa frame is stable before connecting

Images and diagrams

  • The manual uses pictograms to illustrate the assembly process.
  • The crossed-out hammer icon indicates actions to avoid (e.g., do not assemble alone, do not assemble on hard surfaces).
  • The telephone icon indicates when to contact IKEA for help.

Model compatibility

  • These instructions are specific to connecting VIMLE sofa sections.
