Kobalt 1824B-03 24-Volt Max Brushless Reciprocating Saw User Manual
Quick guide for the Kobalt 1824B-03 24-Volt Max Brushless Reciprocating Saw, covering battery installation, blade selection, shoe adjustment, operation, and troubleshooting.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential operating instructions for the Kobalt 1824B-03 24-Volt Max Brushless Reciprocating Saw. It covers safety precautions, tool preparation, blade installation, and cutting techniques. For technical support or missing parts, contact customer service at 1-888-3KOBALT (1-888-356-2258), Monday through Friday, 8 a.m. to 8 p.m. EST.

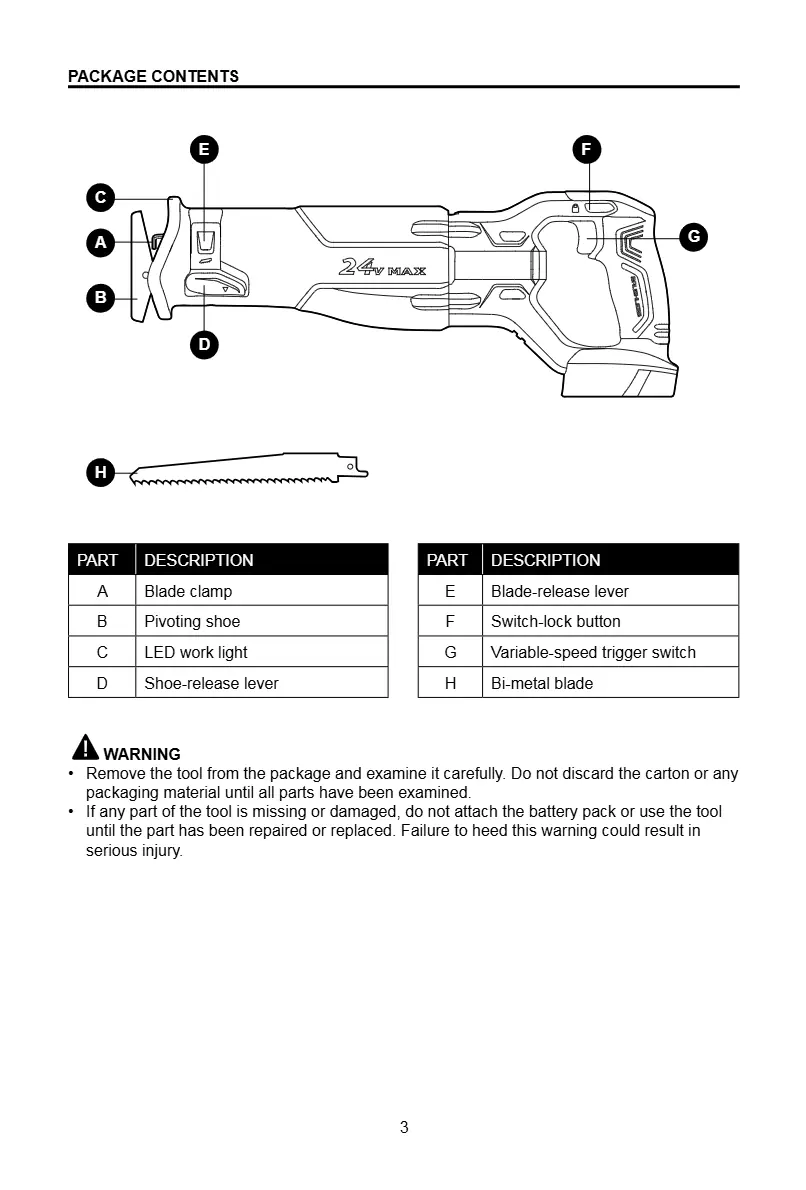

Product Overview
The reciprocating saw features a blade clamp, pivoting shoe, LED work light, shoe-release lever, blade-release lever, switch-lock button, and a variable-speed trigger switch.
Operating Instructions

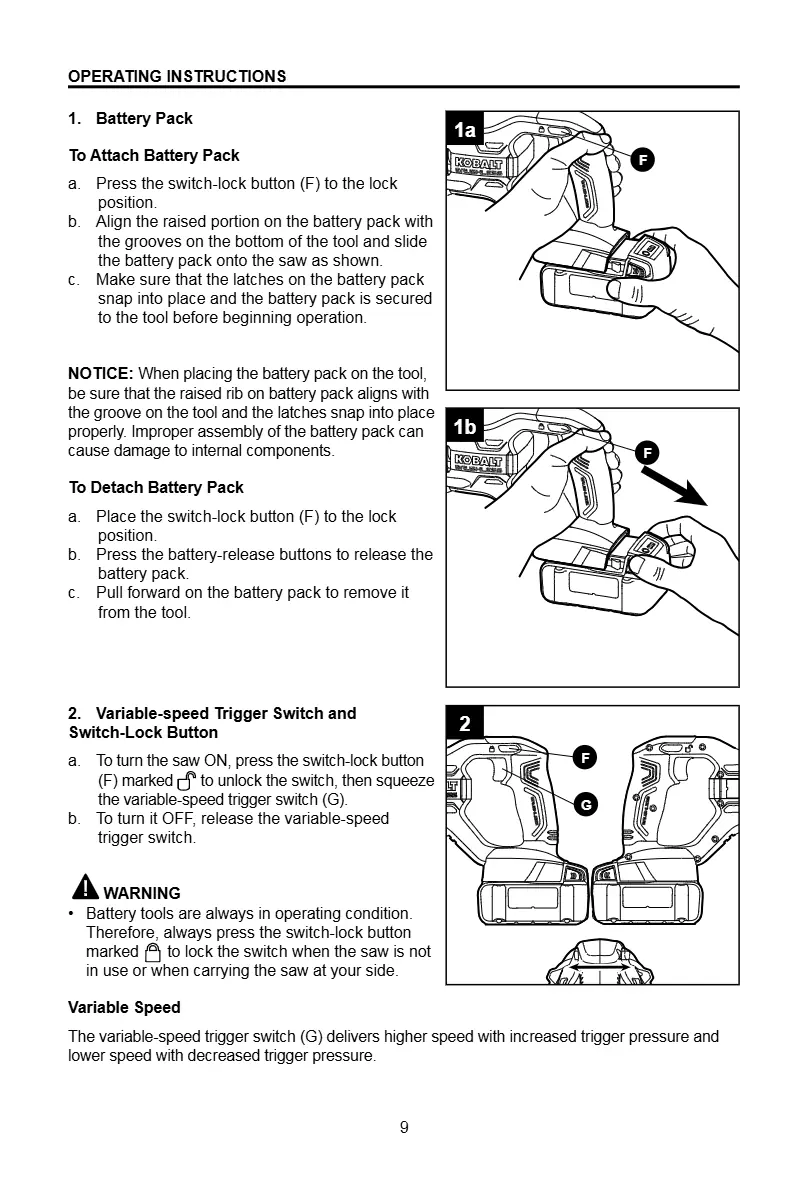

Battery Pack
- To Attach: Set the switch-lock button to the lock position. Align the battery pack with the tool grooves and slide it on until it snaps into place.
- To Detach: Set the switch-lock button to the lock position. Press the battery-release buttons and pull the pack forward.
Pivoting Shoe Adjustment
Adjust the shoe to control the effective stroke length and maximize blade life:
- Remove the battery pack.
- Pivot the shoe-release lever to the vertical position.
- Pull the shoe to the desired position.
- Return the lever to its original position to lock the shoe.

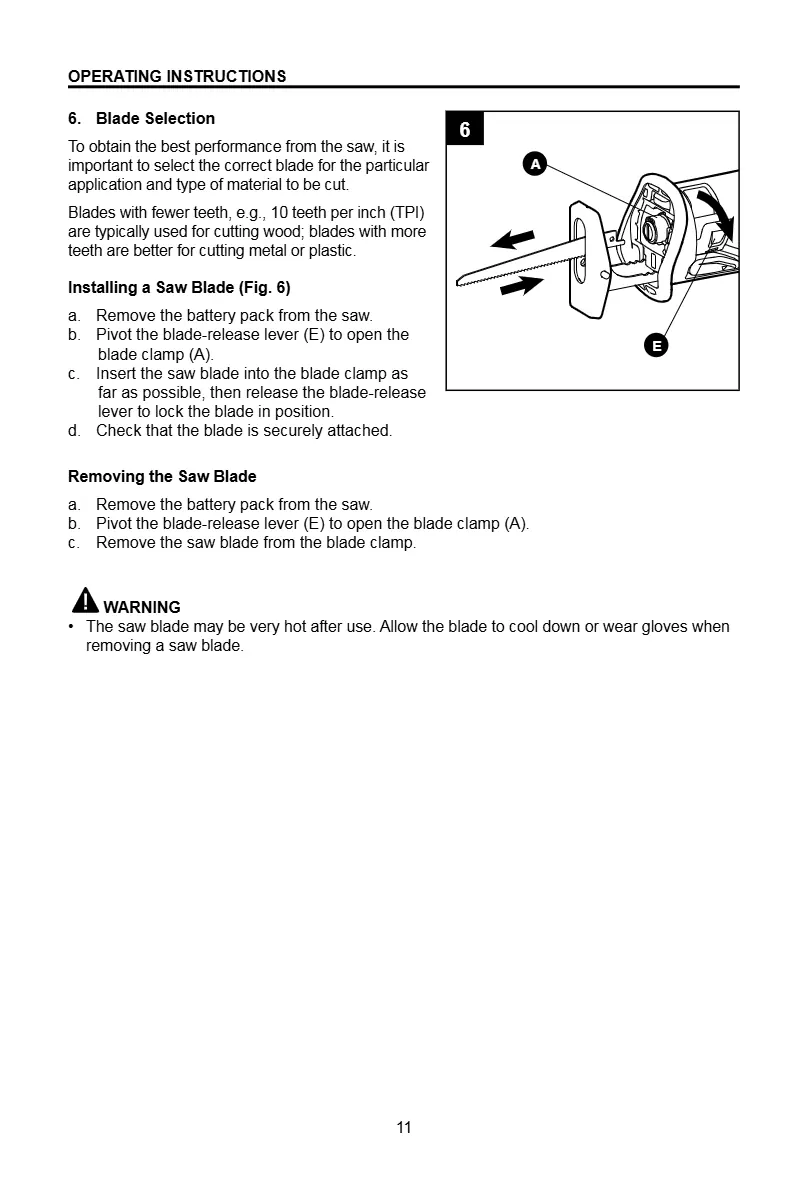

Blade Installation
- Remove the battery pack.
- Pivot the blade-release lever to open the blade clamp.
- Insert the blade as far as possible.
- Release the lever to lock the blade. Ensure it is securely attached.

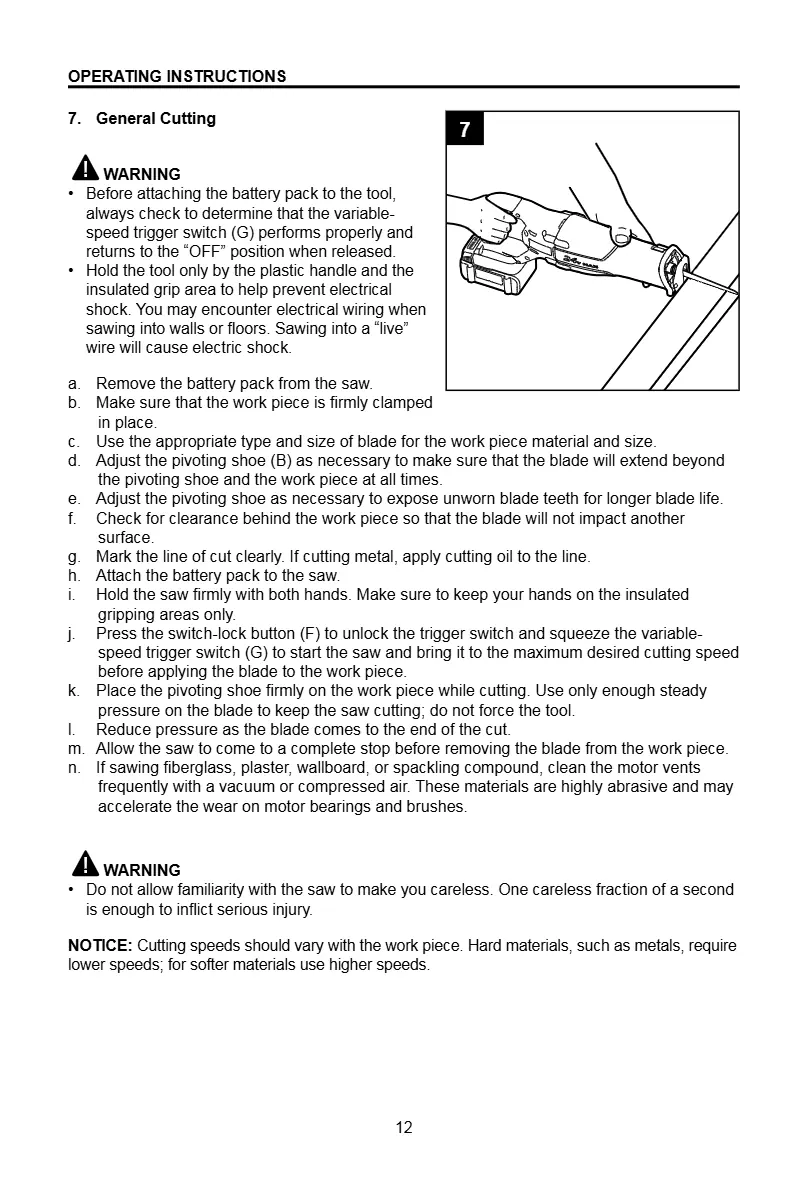

Cutting Techniques
Always hold the tool firmly with both hands using the insulated gripping surfaces. Use the variable-speed trigger to control cutting speed. For metal cutting, use cutting oil to keep the blade cool and extend its life. For plunge cutting, ensure the workpiece is firmly clamped and use the edge of the shoe as a pivot.

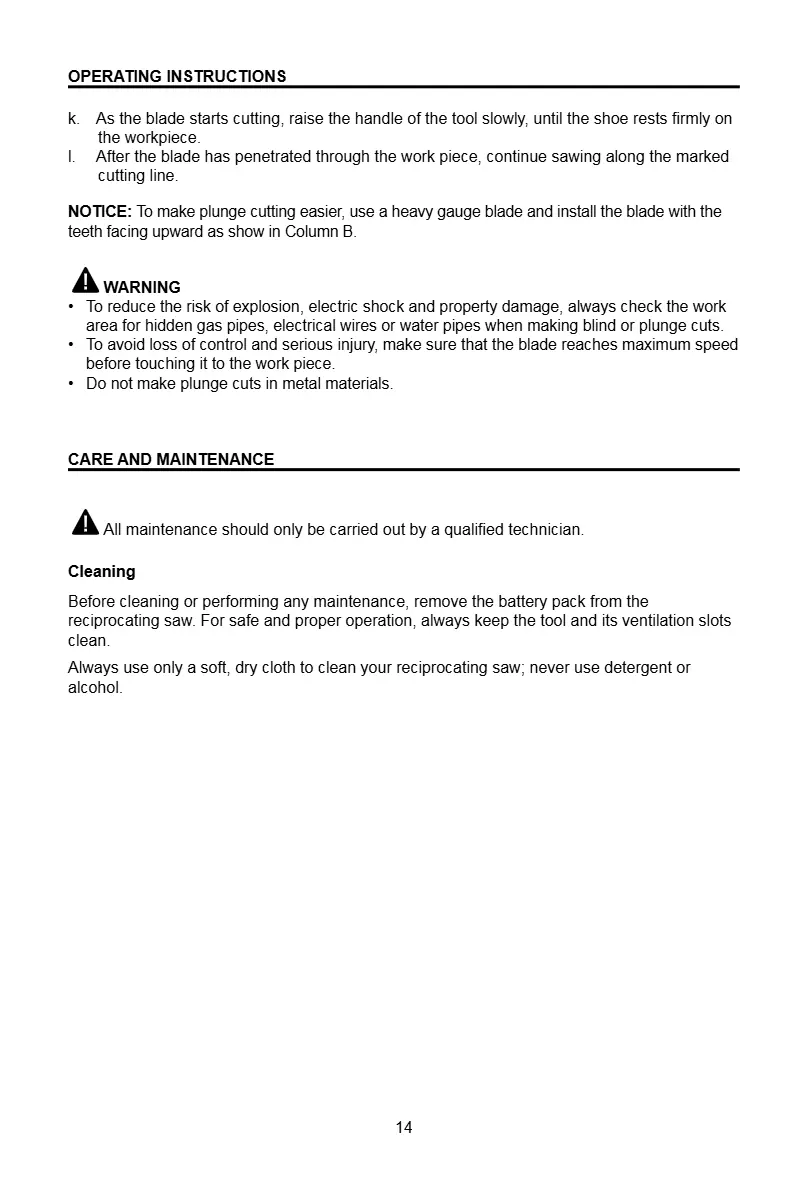

Care and Maintenance
Always remove the battery pack before cleaning or performing maintenance. Keep the tool and ventilation slots clean using a soft, dry cloth. Do not use detergents or alcohol. All repairs must be performed by a qualified technician.
Manufacturer information
Kobalt
Practical help
Common problems
The saw does not work.
Check if the battery is depleted and charge it if necessary.
Blade binds, jams, or burns the wood.
Ensure proper operation, replace or sharpen a dull blade, or use the correct blade type for the material.
Blade cannot be removed.
Clean the clamp slot with a brush to remove accumulated saw dust.
Saw vibrates or shakes.
Check for a damaged blade or ensure the blade is properly installed and tightened.
LED work light blinks rapidly.
The tool has stopped to protect internal circuits. Release the trigger and wait for the tool to cool down.
Before use
- Examine the tool for missing or damaged parts.
- Ensure the switch-lock button is in the lock position before attaching the battery.
- Select the appropriate blade for the material (fewer teeth for wood, more teeth for metal/plastic).
- Verify the blade is securely locked in the clamp.
- Check the work area for hidden gas pipes, electrical wires, or water pipes.
- Ensure the workpiece is firmly clamped.
Specs in practice
- Rated voltage
- 24 V d.c.
- No-load speed
- 0-3,100 SPM (Strokes Per Minute)
- Blade stroke
- 1-1/8 in.
Images and diagrams
- Part A: Blade clamp
- Part B: Pivoting shoe
- Part C: LED work light
- Part D: Shoe-release lever
- Part E: Blade-release lever
Model compatibility
- Use only the charger specified by the manufacturer.
- Use only specifically designated battery packs.
- Do not use dull or damaged saw blades.
