Installation Guide for Lucci decor Manor 145mm Holophane Glass Shade
Quick installation guide for the Lucci decor Manor 145mm Holophane Glass Shade. Learn how to safely attach the shade to compatible fittings, including pendant rods, cord suspensions, and wall brackets.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the Lucci decor Manor 145mm Holophane Glass Shade. Please note that this product is for the shade only; the main fitting is sold separately. Ensure you have all components before beginning the installation.
Installation requirements
- This installation instruction is for the shade only. If you are unsure about the installation, please contact a licensed electrician.
- The main fitting (sold separately) must be installed by a licensed electrician.
- Lay out all components on a smooth surface to ensure nothing is missing before assembling.
- Check the fitting for any damage that may have occurred during transport. Do not install if damaged.
- Ensure the power to the circuit you are working on is switched OFF.
- Take care not to pull any electrical wires during installation to avoid damaging the connection.
Fitting compatibility
This shade is compatible with the following Lucci fittings (sold separately): SKU# 031000, 031001, 031002, 031003, 031029, 031040, 031041, 031042, 031043.
Installation directions
The installation process is similar for all compatible fittings. Follow these general steps:
- Remove all packaging material from the product.
- Remove the lamp holder ring (D) from the fitting. Note: Some fittings may also have a lamp holder spacer (C) that needs to be removed.
- Install the shade (W) onto the lamp holder of the fitting.
- Secure the shade by reinstalling the lamp holder spacer (if applicable) and the lamp holder ring (D).
- Install a globe (E – not included) into the lamp holder. Do not exceed the maximum wattage rating.
Safety tips
- Always ensure the power is OFF and the fitting has cooled down before performing any maintenance, cleaning, or adjustments.
- Do not touch the globe with bare hands. Use a clean cloth, gloves, or a tissue.
- Ensure that power leads and screws are secure before connecting the power.
- Select a suitable location away from liquids and hazards.
- Ensure the fitting does not come in contact with corrosive chemicals.
- To clean, wipe with a damp clean cloth. Never soak the fitting with water.
Specifications
The following specifications apply to the Manor 145mm Holophane Glass Shade:
- Weight: 0.7kg
- Dimensions: Height 110mm, Diameter 145mm
- Models: P3589-AM, P3589-OP, P3589-CL
Practical help
Common problems
Missing components
Return the complete product to the place of purchase for inspection or replacement.
Fitting appears damaged
Do not operate or install the product. Return the complete product to the place of purchase for inspection, repair, or replacement.
Handling the globe
Do not touch the globe with bare hands. Use a clean cloth, gloves, or a tissue to avoid damage or injury.
Before use
- Ensure power to the circuit is switched OFF.
- Verify all components are present on a smooth surface.
- Check the fitting for any transport damage.
- Confirm compatibility with your existing fitting SKU.
- Ensure the fitting has cooled down before maintenance.
Images and diagrams

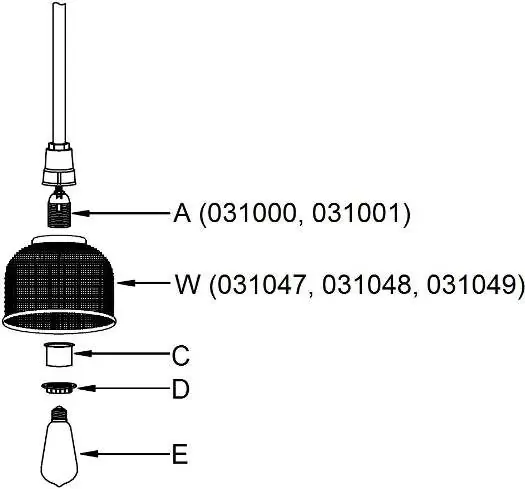

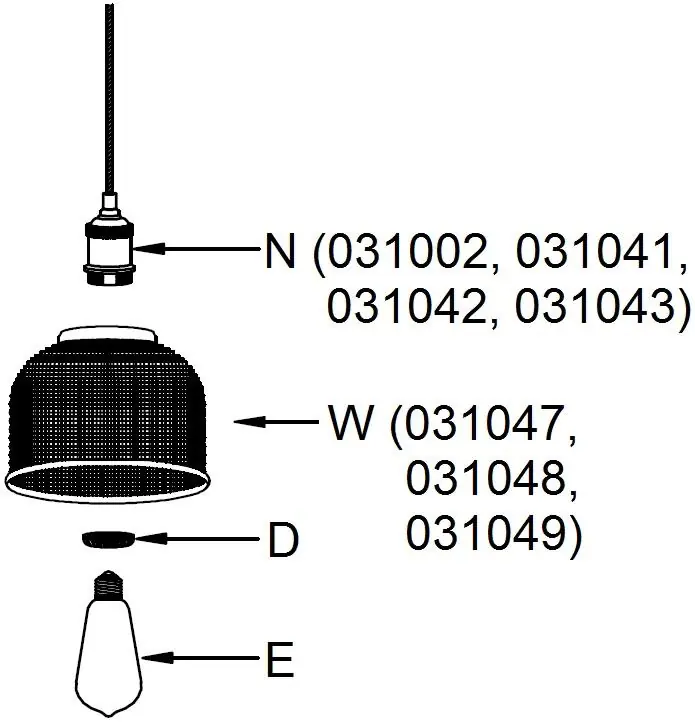

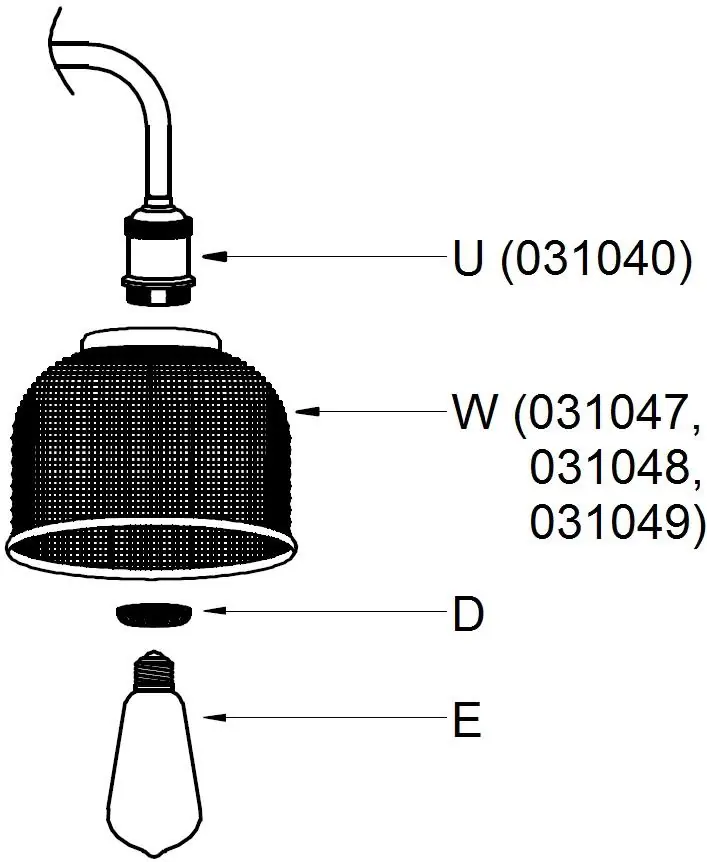

- The diagrams illustrate the assembly sequence: Fitting -> Shade -> Lamp Holder Spacer (if applicable) -> Lamp Holder Ring -> Globe.
Model compatibility
- Compatible with Lucci fittings: 031000, 031001, 031002, 031003, 031029, 031040, 031041, 031042, 031043.
