User Manual for Lucci Decor Muse 12LT Pendant Light

Quick guide from the manual

The Lucci Decor Muse 12LT Pendant Light is a heavy lighting fixture (18.5kg) that must be installed by a licensed electrician. Due to its weight and size, two people are required for the installation process. This is a Class I product and must be earthed. It is designed for indoor use only.

Installation Requirements

• Professional Installation: Must be assembled and installed by a licensed electrician in accordance with local and national wiring rules (e.g., AS/NZS 3000).
• Safety: Ensure power to the circuit is switched OFF before starting.
• Mounting: The mounting point must support at least 2 times the weight of the luminaire (18.5kg).
• Environment: Suitable for indoor use only. Avoid installation in direct line of air vents or in areas prone to moisture without proper ventilation.
• Inspection: Check for damage during transport before installation. Do not install if damaged.

Installation Directions

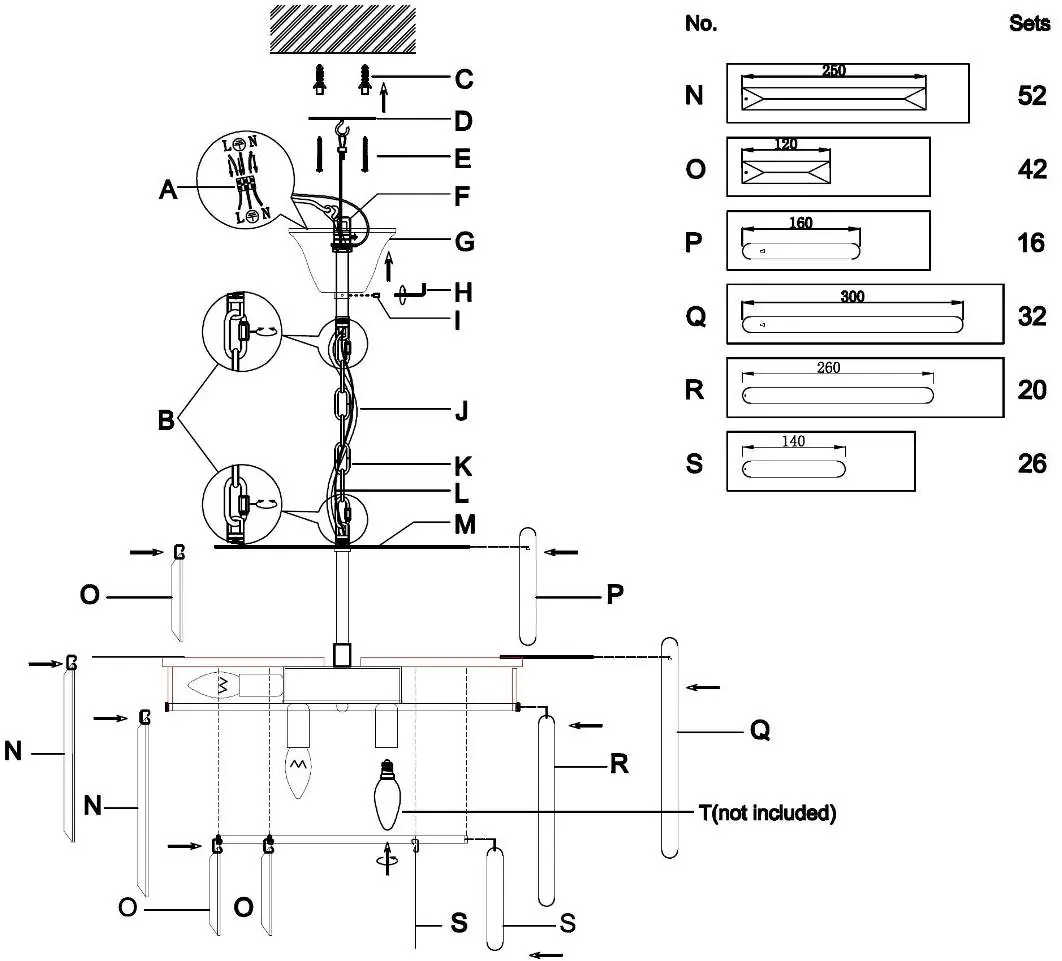

1. Remove all packaging and lay out components on a smooth, non-scratch surface.
2. Use the mounting bracket (D) as a template to mark screw positions on the ceiling.
3. Install the mounting bracket (D) using appropriately sized screws (E) and anchors (C).
4. Adjust the chain suspension (K) length using chain-link connectors (B) to the desired height.
5. Loop and install the safety lanyard (L) securely onto the mounting bracket (D).
6. Hang the luminaire onto the mounting bracket ring using the luminaire hook (F).
7. Important: Ensure the weight of the luminaire is supported by the chain suspension (K), NOT the luminaire cord (J) or safety lanyard (L).
8. Connect the wiring to the terminal block (A) as described in the wiring section.
9. Push the canopy (G) flush to the ceiling and secure with screw (I).
10. Install globes (T - not included) into the lamp holders. Do not exceed the maximum wattage rating.
11. Hang the shades (N, O, P, Q, R, S) onto the luminaire frame (M).
12. Remove tape from shades and clean off any fingerprints.

Wiring Instructions

Connect the luminaire wires (J) and the earth cable from the canopy to the terminal block (A) as follows:

• Earth: Yellow/Green wire to Yellow/Green or Earth symbol.
• Neutral: Blue or Black wire to Blue or N.
• Live: Brown or Red wire to Brown or L.

Ensure all wires are secure and no bare wires are exposed.

Maintenance and Safety

• Power Off: Always ensure power is OFF and the luminaire has cooled down before maintenance, cleaning, or changing globes.
• Cleaning: Wipe with a soft damp cloth. Do NOT soak or immerse in water or other liquids.
• Chemicals: Do not allow contact with corrosive chemicals, solvents, or abrasive cleaners.
• Safety: Ensure power leads and screws are secure before reconnecting power.

Specifications

• Model: 12LT (SKU 050624)
• Rated Voltage: 220-240V~ 50Hz
• Max Wattage: 336W (12 x Max. 28W)
• Lamp Holder: SES / E14
• Weight: 18.5kg
• Dimensions: H:580mm, Dia:710mm, Suspension: 2000mm MAX
