Installation Guide for MadJax APEX Body Kit
Comprehensive guide for the MadJax APEX Body Kit, including fitment details, component list, and hardware specifications for E-Z-GO RXV golf carts.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as a reference for the MadJax APEX Body Kit designed for E-Z-GO RXV (2008-Up) golf carts. It outlines the included components, hardware requirements, and compatibility features. Please note that detailed step-by-step installation instructions and video tutorials are provided by the manufacturer via QR codes found on the original product packaging or documentation.
Features
- Design: Premium automotive-inspired, modular, multi-piece unit.
- Lighting: Includes a full LED Lux light kit with automotive-style projector lights and a continuous DRL (Daytime Running Light) along the entire length of the cowl.
- Material: Eco-friendly, injection-molded body made of durable, 100% recyclable polypropylene plastic.
- Compatibility: Compatible with MadJax Genesis series and GTW Mach Series rear seat kits.
- Finishes: Available in both mold-in color and paint finish options.
Body Kit Components
The kit includes the following primary components:
- Front cowl with continuous LUX DRL and black grille
- Rear body with bagwell
- Center hood, fenders (driver and passenger side)
- Upper and lower grills
- Front and rear panels for the rear body
- Bagwell and bumper (matte black)
- Access panel for rear body
- Complete APEX LUX Light Kit (Headlights, tail lights, wiring harness, relay, and center DRL)
Hardware Kit Contents
Ensure all hardware is accounted for before beginning installation:
- M5 Clip Nut: 42 count
- M5 x 15 Flat Torx Head Screw: 42 count
- M4 x 12 Torx Head Screw: 25 count
- Clip: 4 count
- T-Lock Connector: 4 count
Color Options
The APEX body kit is available in various colors, categorized by finish type:
- Mold-in: Aqua, Colorado Slate, Black, White.
- Painted: Deep Sea Metallic, Hyper Gray Metallic, Carmine Red Metallic, Frost White Metallic.
Installation
For the full installation procedure, please scan the QR codes provided on the original product documentation to access the official installation instructions and video guide.
Practical help
Common problems
Missing hardware during assembly
Verify all items against the Hardware Kit Contents list (e.g., 42 M5 clip nuts, 42 M5x15 screws) before starting.
Color mismatch
Check the color reference guide (e.g., BG05 for Aqua, BL01 for Black) to ensure the parts received match your desired color code.
Before use
- Verify your golf cart is an E-Z-GO RXV (2008-Up).
- Check that all hardware components are present according to the Hardware Kit Contents list.
- Confirm the color code of your kit matches your vehicle's requirements.
- Ensure you have access to the digital installation instructions via the QR code.
Specs in practice
- Mold-in Color
- The color is integrated into the plastic material during the molding process.
- Painted Finish
- The exterior surface is painted, providing a specific aesthetic finish.
Images and diagrams

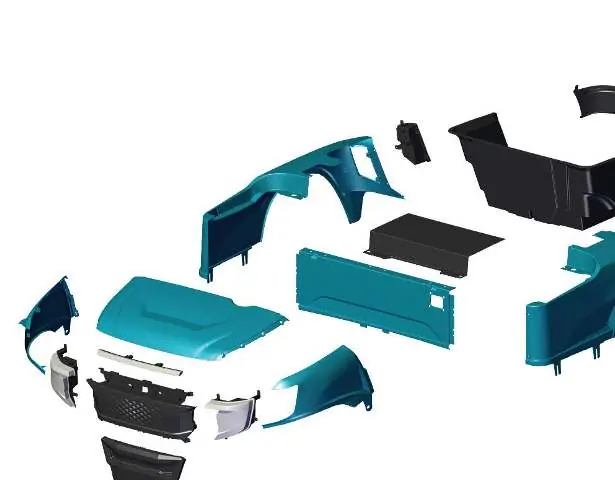

- The body kit components diagram illustrates the modular nature of the front cowl, fenders, and rear body panels.
- The hardware kit table provides a clear inventory of the fasteners required for assembly.
Model compatibility
- Compatible with E-Z-GO RXV (2008-Up).
- Compatible with MadJax Genesis series rear seat kits.
- Compatible with GTW Mach Series rear seat kits.
