Miyota 0T45 Solar Quartz Movement Instruction Manual

Product Overview

The Miyota 0T45 is a high-quality solar quartz movement designed for precision and reliability. This movement features a classic analog display with hour, minute, and small second hands, along with a date indicator. As a solar-powered movement, it converts light into electrical energy to power the watch, ensuring long-term operation without the need for frequent battery replacements. Understanding the crown positions is essential for operating the watch functions correctly.

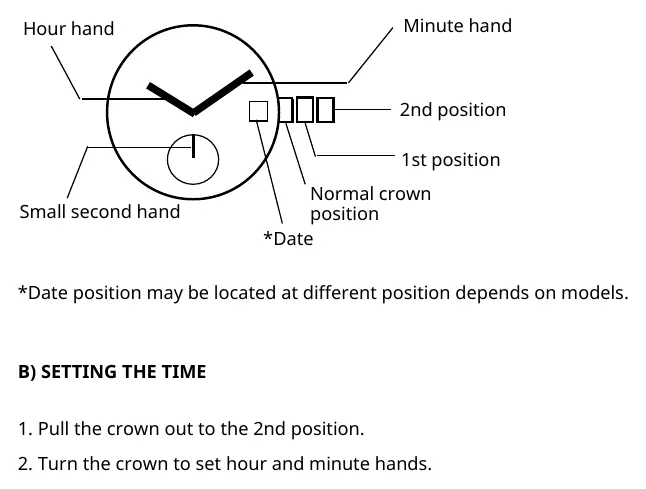

Display and Crown Positions

The watch features a crown that can be set to three distinct positions to control various functions. The normal crown position is pushed all the way in, which is the standard operating mode. The 1st position is used for adjusting the date, while the 2nd position is used for setting the time. The small second hand provides visual confirmation that the movement is running. Please note that the specific location of the date window may vary depending on the specific watch model housing this movement.

Setting the Time

To adjust the time on your Miyota 0T45 movement, follow these steps carefully. First, pull the crown out to the 2nd position. This action stops the movement of the hands, allowing for precise time setting. Rotate the crown to move the hour and minute hands to the desired time. Once the correct time is set, push the crown back into the normal position. The small second hand will immediately begin to run, indicating that the watch is active and keeping time.

Setting the Date

Adjusting the date is a straightforward process, but it requires attention to the time of day to avoid mechanical issues. Pull the crown out to the 1st position. Turn the crown counter-clockwise to advance the date to the current day. It is important to avoid setting the date between the hours of approximately 9:00 PM and 1:00 AM. During this period, the date-changing mechanism is already engaged, and manually adjusting it may prevent the date from changing correctly the following day. Once the date is set, ensure the crown is pushed back to the normal position to resume standard operation.
