Jump to the sectionProduct Overview

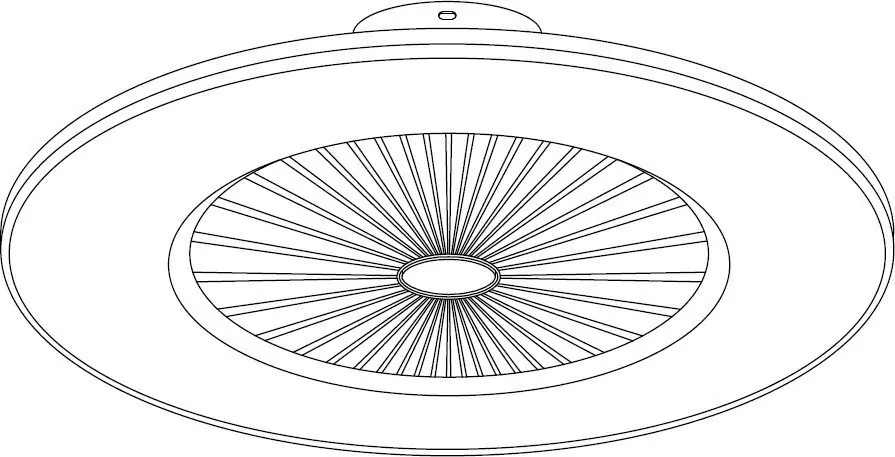

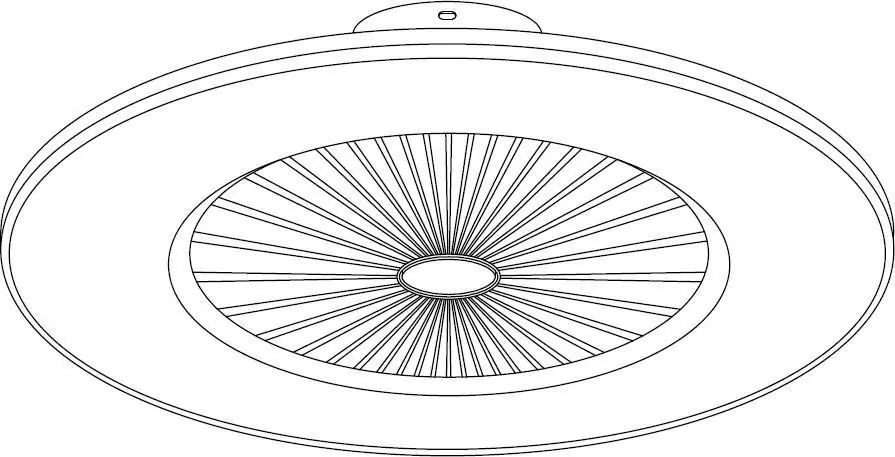

The Noaton 11056BR is a ceiling fan designed for indoor domestic use. It features an integrated LED light with adjustable color temperature and intensity, as well as a built-in Bluetooth speaker for audio playback.
Safety Instructions
Installation must be performed by a qualified electrician in compliance with local electrical regulations. Ensure the mounting surface can support at least 30 kg. The fan blades must be at least 230 cm above the ground and 30 cm from any wall or obstacle. Do not connect the fan to dimmers or wall switches, as this may damage the motor; use only the provided remote control.
Installation
1. Secure the mounting bracket to the ceiling or wall using the provided hardware. 2. Disconnect the main power supply. 3. Connect the household wiring to the fan wires. 4. Attach the fan to the bracket and lock it into place. 5. Verify all screws are tightened. 6. Restore power.
Remote Control
The infrared remote control allows for adjustment of light intensity, color temperature (warm white, daylight, cool white), fan speed, and timer settings (1 or 2 hours). It does not require pairing and can control multiple fans of the same model within range.
Maintenance
Periodically check and tighten all screws at least twice a year. Clean the surface with a soft, damp cloth. Do not use water, detergents, or abrasive chemicals to avoid damaging the motor or electronic components.
Troubleshooting
If the fan does not rotate, check fuses, wiring connections, and remote control batteries. If the fan is noisy, ensure all screws are tight and the mounting bracket is secure. For mechanical noise, allow the fan to run for at least 8 hours during the first use to allow parts to settle.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check household fuses, verify electrical connections (by a qualified electrician), replace remote control batteries, or ensure power is supplied.
Noisy operation
Tighten all screws and ensure the mounting bracket is securely fastened.
Insufficient airflow
Remove objects in close proximity to the fan or ensure the fan diameter is appropriate for the room size.
Before use
- Ensure the mounting surface supports at least 30 kg.
- Verify blades are at least 230 cm above the ground.
- Ensure at least 30 cm clearance from walls or obstacles.
- Confirm the electrical circuit is protected and compatible.
- Check that the remote control has fresh batteries.
Specs in practice
- Input Voltage
- 220-240 V ~ AC 50/60 Hz
- Light Color Temperature
- Adjustable: 3000K (warm white), 4000K (daylight), 6000K (cool white)
- Bluetooth Speaker
- Integrated 3-5 W speaker for wireless audio playback.
Images and diagrams

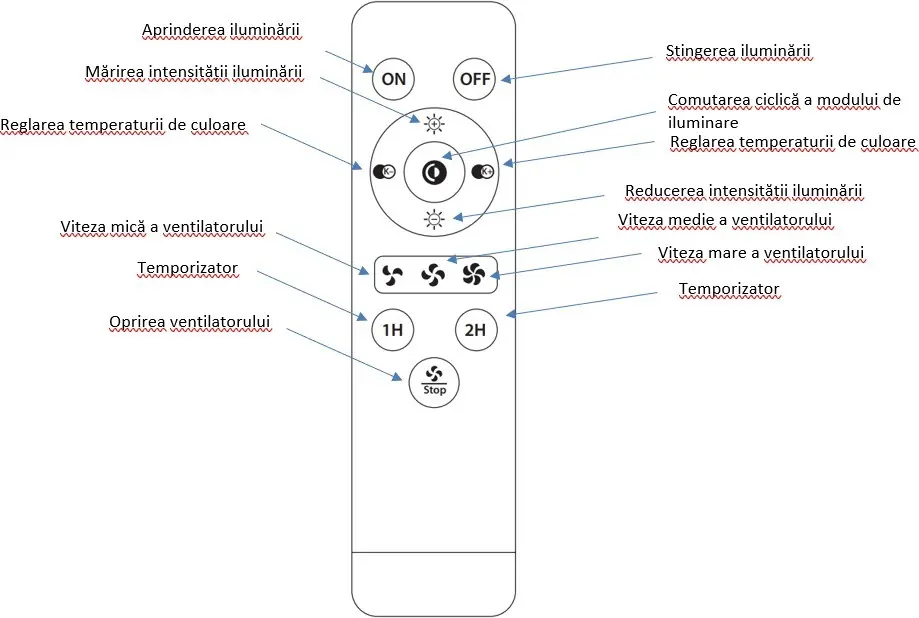

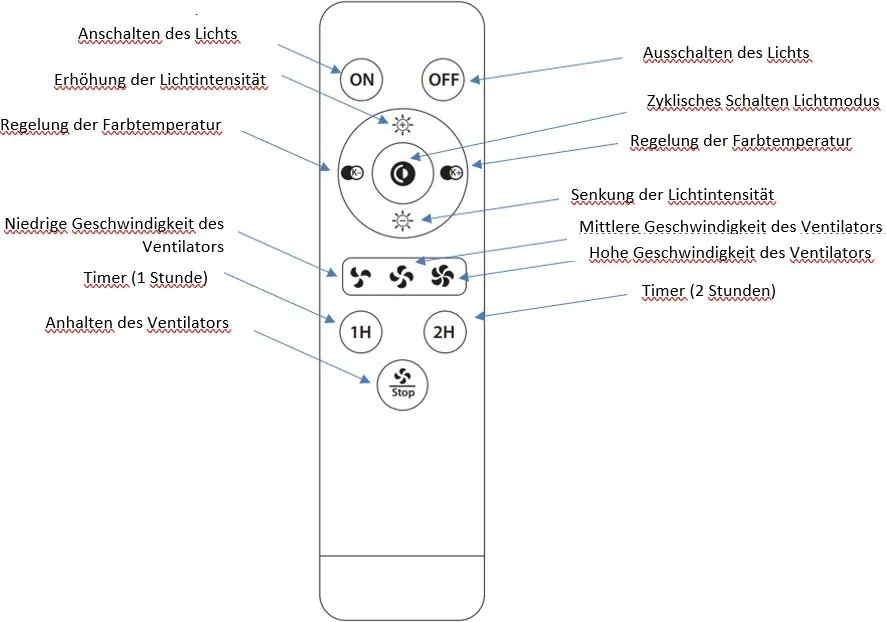

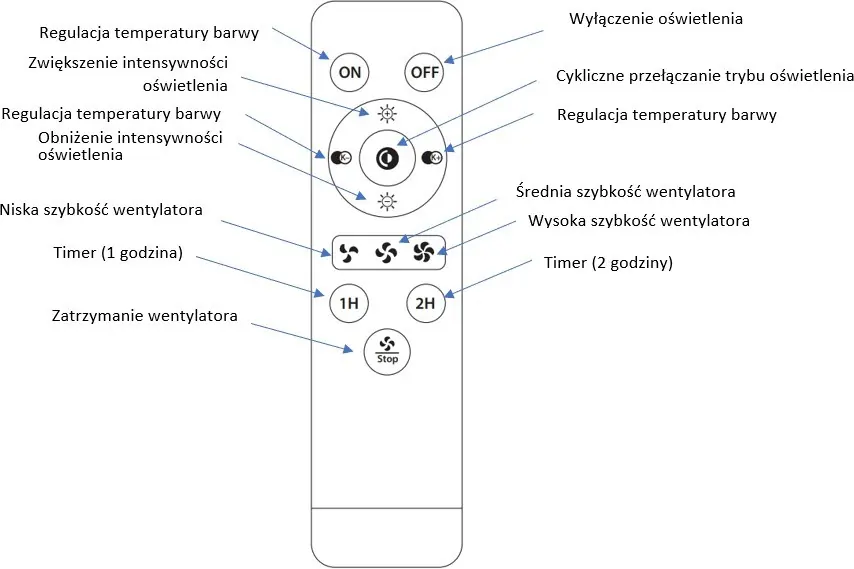

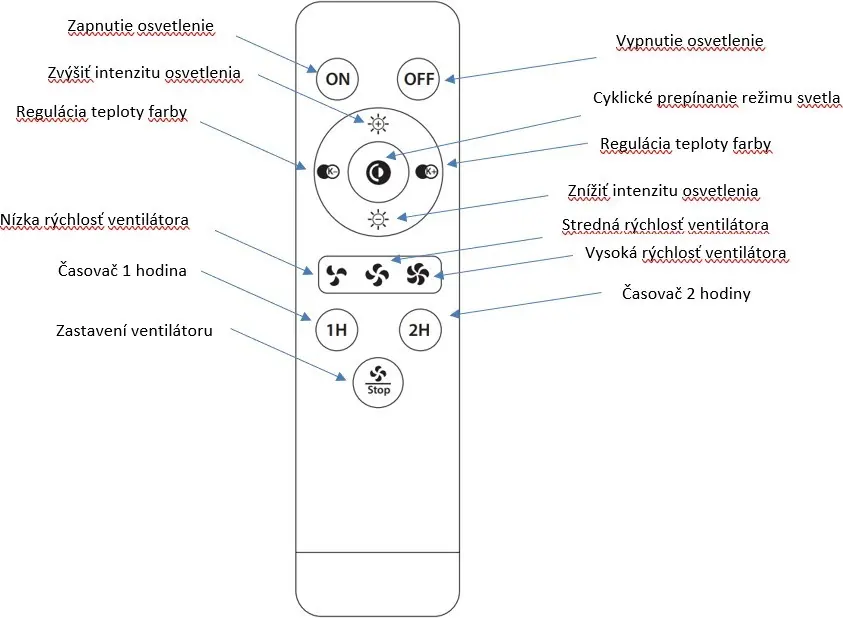

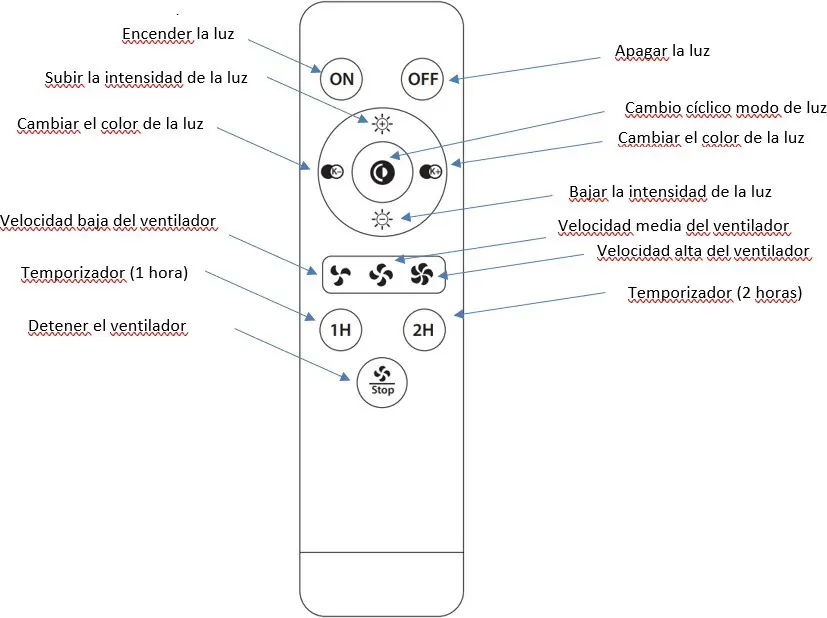

- The remote control features buttons for light ON/OFF, intensity adjustment, color temperature control, three fan speeds, 1H/2H timers, and a stop button.
Model compatibility
- Not suitable for rooms with high humidity (e.g., bathrooms, swimming pools).
- Do not use with external dimmers or wall switches.
