This document provides essential instructions for the Noaton TRITON ceiling fan (models 12050 and 12058). It covers safe installation, remote control operation, and basic maintenance to ensure optimal performance and safety.
Safety instructions
- Installation must be performed by a qualified electrician in compliance with local regulations.
- The fan must be installed at least 230 cm above the ground, with blade ends at least 30 cm from any wall or obstacle.
- The mounting surface must support at least 30 kg.
- Do not connect the fan to dimmers, potentiometers, or wall switches; use only the supplied remote control.
- Ensure the fan is connected to a protected circuit with a circuit breaker.
- Do not insert objects into the blade rotation area.
- Check all screws and connections at least twice a year.
Installation
- Mount the bracket to the ceiling or wall using the provided dowels and screws.
- Disconnect the household power supply.
- Connect the home circuit wires to the fan wires.
- Attach the fan body to the bracket, ensuring wires are not pinched.
- Tighten all screws securely.
- Restore power.
Remote control
The remote control uses infrared signals and does not require pairing. For best performance, keep the fan within 4 meters of the remote and ensure there are no obstacles between them. Point the top of the remote (IR diode) directly at the fan.
Maintenance
- Turn off and disconnect power before maintenance.
- Clean the surface with a soft, damp cloth.
- Do not immerse the fan in water or use chemicals, detergents, or abrasives.
- Check screw tightness at least twice a year.
Troubleshooting
- Fan does not rotate: Check fuses, electrical connections (by a professional), remote batteries, and power supply.
- Noisy operation: Tighten screws and the mounting bracket. Use only the original remote.
- Mechanical noise: Allow the fan to run for at least 8 hours during the first use to let parts settle.
- Light does not turn on: Contact service.
- Insufficient airflow: Remove nearby obstacles or ensure the fan diameter is appropriate for the room size.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check household fuses, verify electrical connections (must be done by a qualified electrician), replace remote batteries, or check power supply.
Noisy operation
Tighten all screws and the mounting bracket. Ensure you are using the original remote control.
Mechanical noise during first use
Let the fan run for at least 8 hours to allow all parts to settle into their positions.
Insufficient airflow
Ensure there are no objects restricting airflow near the fan and verify that the fan diameter is suitable for the room size.
Before use
- Ensure installation is performed by a qualified electrician.
- Verify the mounting surface can support at least 30 kg.
- Check that the fan is at least 230 cm above the ground.
- Ensure there is at least 30 cm clearance from walls or obstacles.
- Check that all screws are properly tightened after installation.
- Ensure the fan is not connected to a wall dimmer or potentiometer.
Specs in practice
- Nominal voltage
- 220-240 V ~ AC 50/60 Hz
- Max motor power
- 26 W
- Protection class
- Class II (12050) or Class I (12058)
- Remote control type
- Infrared (IR)
Images and diagrams

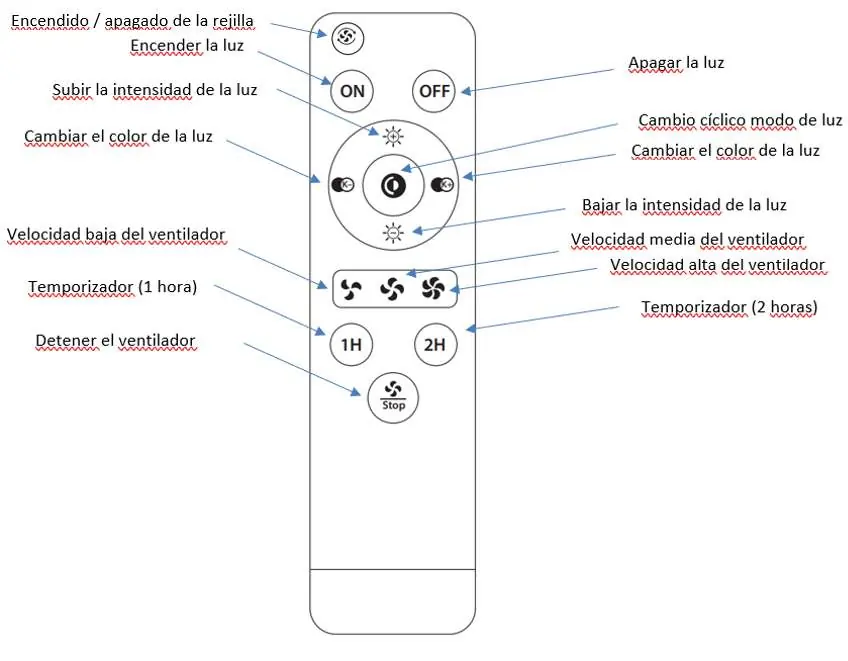

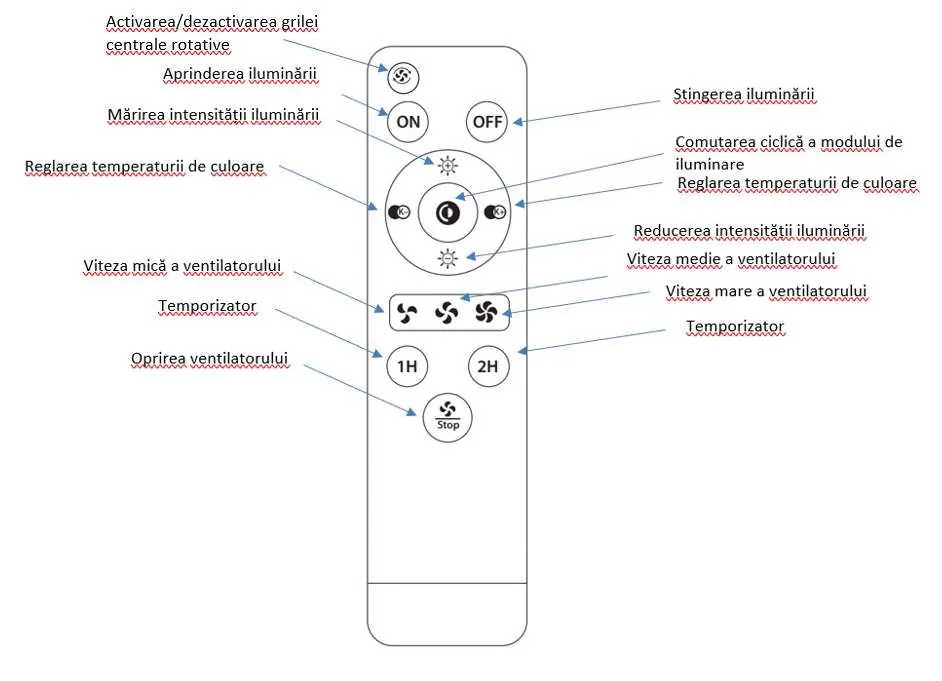

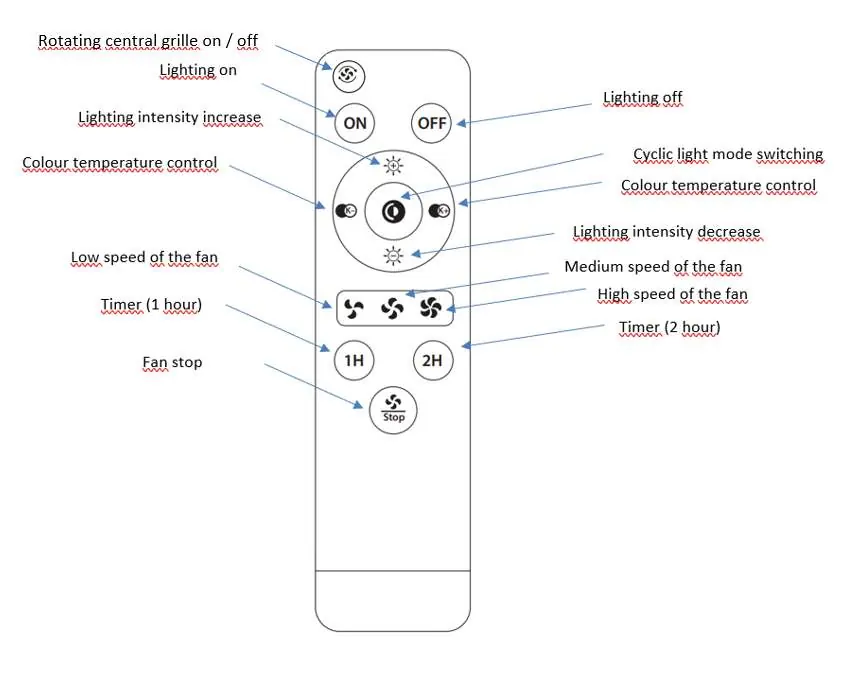

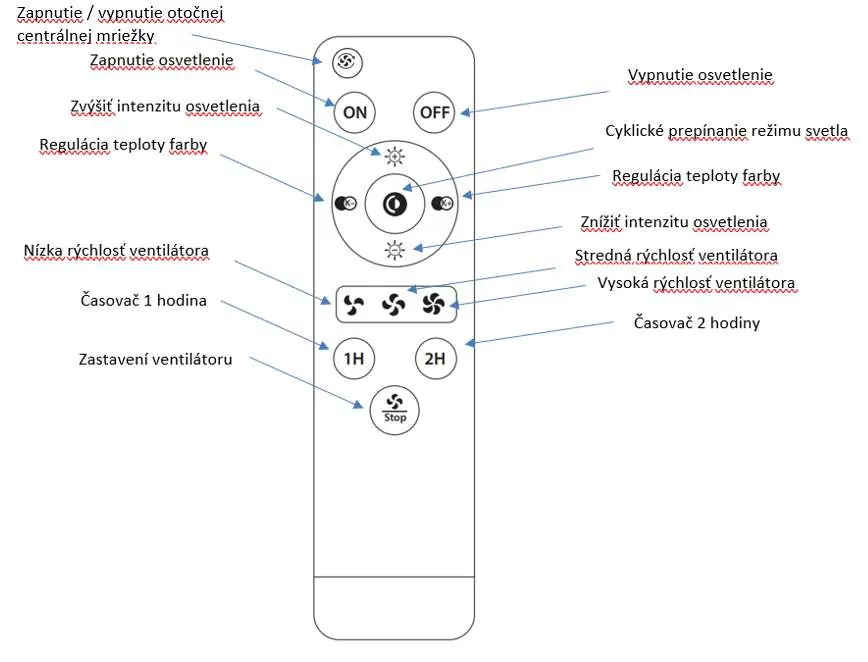

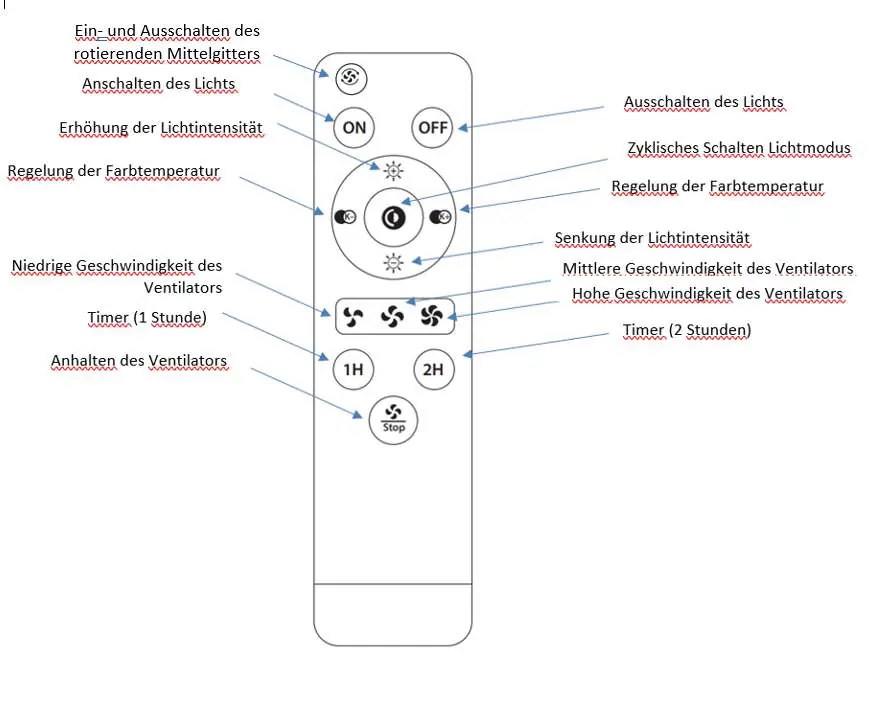

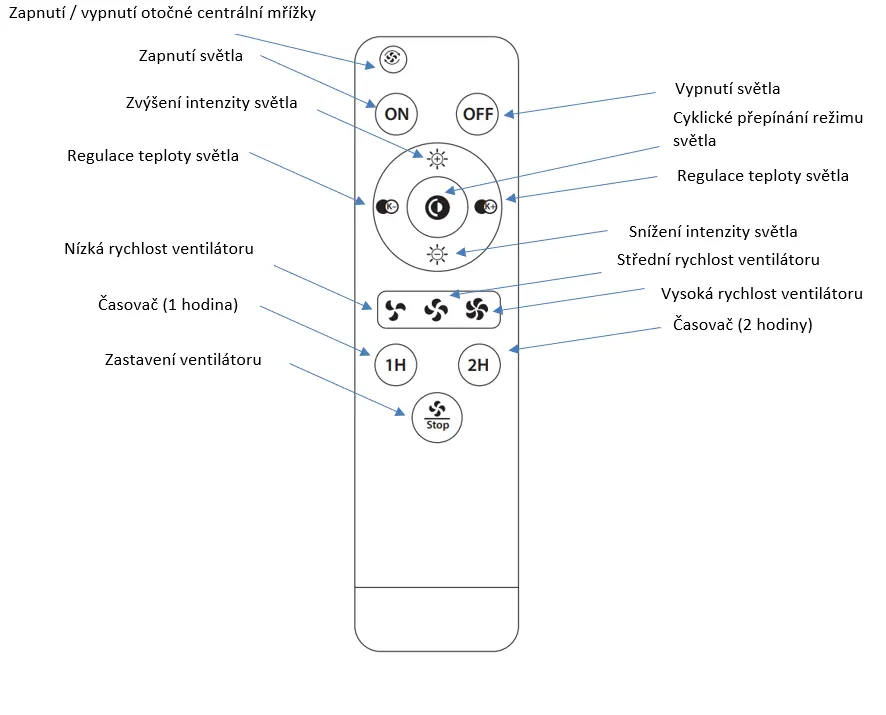

- The remote control features buttons for light intensity, color temperature, fan speed (low, medium, high), timer (1H, 2H), and a stop button.
- The central pad on the remote controls LED color and intensity.
- The fan symbol button on the remote controls the motor for the central grille.
Model compatibility
- Not suitable for rooms with high humidity (e.g., bathrooms, swimming pools).
- Designed for indoor domestic use only.
- Compatible with wall mounting (up to 90° ceiling slope).
