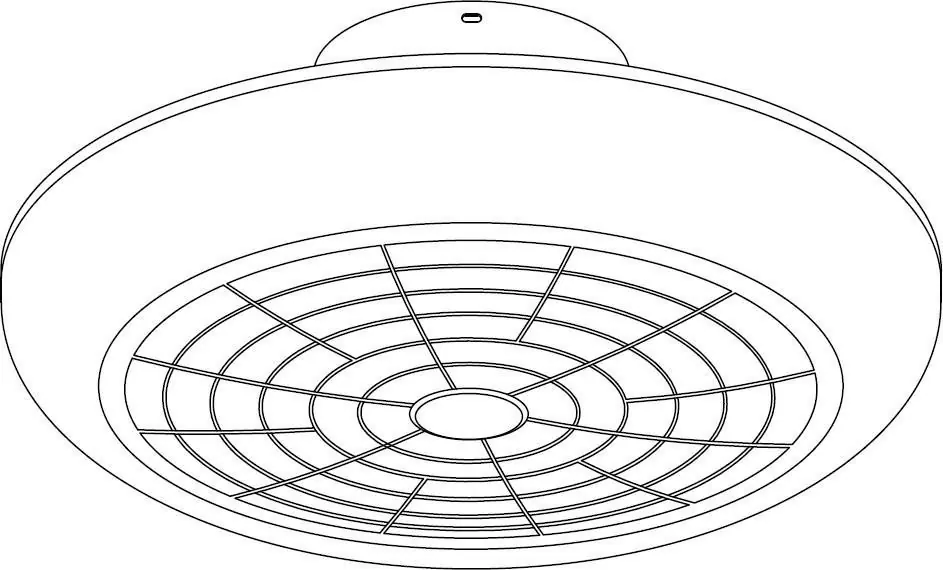

The Noaton CALLISTO is a modern ceiling fan designed for indoor domestic use. It features integrated LED lighting with adjustable color temperature and intensity, controlled via the included infrared remote control. The fan is equipped with 5 ABS blades and is suitable for ceiling or wall mounting.
Installation
Installation must be performed by a qualified electrician in accordance with local electrical regulations. The fan must be mounted at least 230 cm above the floor, with blade tips at least 30 cm from any wall or obstacle. The mounting surface must support a load of at least 30 kg. Ensure the fan does not sway after installation and that all electrical connections are secure.
Remote Control Operation
The infrared remote control allows for immediate operation without pairing. For optimal performance, keep the remote within 4 meters of the fan and ensure there are no obstacles between the remote's IR diode and the fan. The remote controls fan speed, lighting intensity, color temperature (warm white, daylight white, cool white), and includes a timer function (1 or 2 hours).
Maintenance
Regular maintenance is essential for safety and performance. Check and tighten all screws at least twice a year, as the fan's rotation can cause them to loosen over time. Clean the surface with a soft, damp cloth. Do not use water, chemicals, detergents, or abrasive materials, as these can damage the motor or electronic components.
Troubleshooting
If the fan fails to operate, check household fuses and electrical connections. If the remote is unresponsive, replace the batteries and ensure correct polarity. For mechanical noise, allow the fan to run for at least 8 hours during the first use to allow components to settle. If issues persist, contact professional service.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check fuses, verify electrical connections (by a qualified electrician), replace remote batteries, or re-pair the remote using the central button.
Noisy operation
Tighten all screws and ensure the mounting bracket is secure. Use only the original remote control.
Insufficient airflow
Remove objects near the fan that may restrict airflow or ensure the fan diameter is appropriate for the room size.
Before use
- Ensure the installation height is at least 230 cm from the floor.
- Verify that the mounting surface can support at least 30 kg.
- Check that all screws are tightened after installation.
- Ensure no obstacles are within 30 cm of the blade tips.
- Confirm the power supply is disconnected before starting installation.
Specs in practice
- Voltage/Frequency
- 220-240 V ~ AC 50/60 Hz
- Max Motor Power
- 35 W
- Lighting Power
- 2 x 24 W
- Color Temperature
- Adjustable: 3000K (warm white), 4000K (daylight), 6000K (cool white)
Images and diagrams

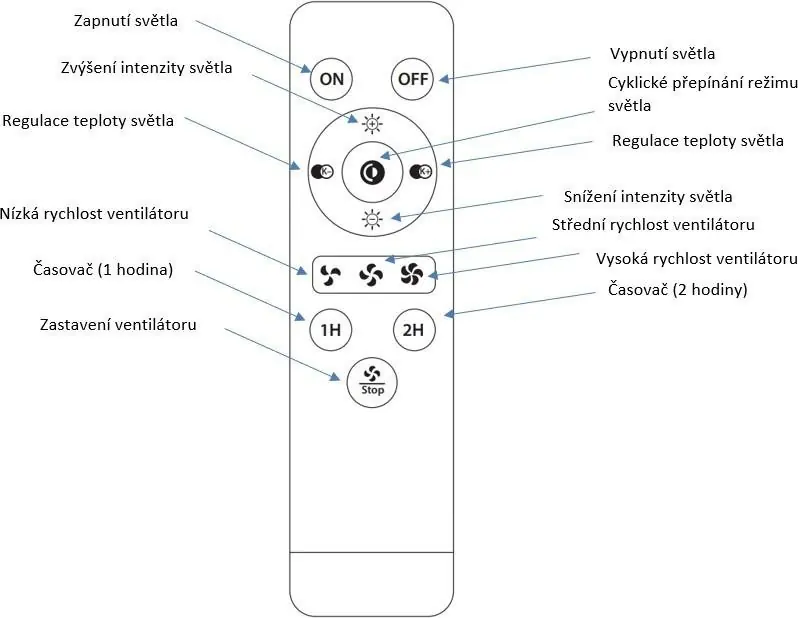

- The remote control diagram shows buttons for lighting (ON/OFF, intensity, color temperature) and fan control (speeds, timer, stop).
Model compatibility
- Not suitable for rooms with high humidity (e.g., bathrooms, swimming pools).
- Do not connect to external dimmers or wall switches; use only the provided remote.
