Noaton CALLISTO Ceiling Fan User Manual
User manual for the Noaton CALLISTO ceiling fan, including installation, remote control operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview

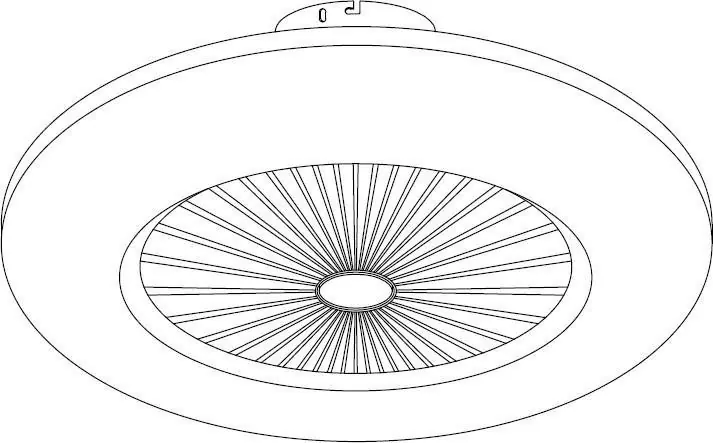

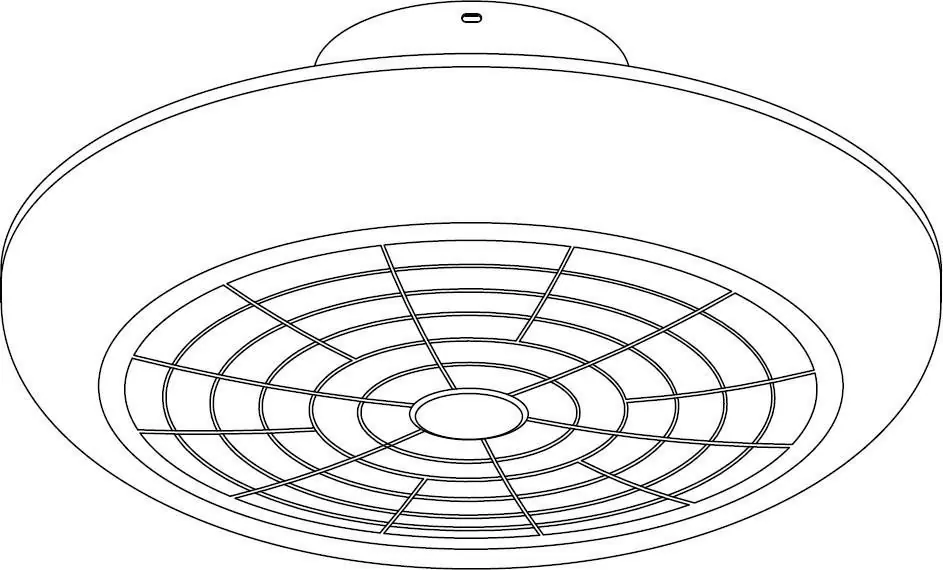

The Noaton CALLISTO is a ceiling fan designed for indoor domestic use. It features integrated LED lighting with adjustable color temperature and intensity, controlled via the included infrared remote control. The fan is equipped with 5 ABS blades and is suitable for ceiling or wall mounting.
Safety Instructions
Installation must be performed by a qualified electrician in accordance with local electrical regulations. Ensure the mounting surface can support at least 30 kg. The fan blades must be at least 230 cm above the ground and 30 cm from any obstacle. Do not connect the fan to dimmers or wall switches, as this may damage the motor. Use only the provided remote control for operation.
Installation
1. Secure the mounting bracket to the ceiling or wall using the provided dowels and screws. 2. Disconnect the household power supply. 3. Connect the household circuit wires to the fan wires. 4. Attach the fan body to the bracket and ensure wires are not pinched. 5. Verify all screws are tightened. 6. Restore power.
Remote Control
The infrared remote control allows for immediate operation without pairing. It controls fan speed (3 levels), lighting intensity, and color temperature (warm white, daylight white, cool white). The remote should be pointed directly at the fan within a 4-meter range for optimal performance.
Maintenance
Regularly check and tighten all screws at least twice a year. Clean the fan surface with a soft, damp cloth. Do not use water, chemicals, detergents, or abrasive cleaners, as these can damage the motor or electronic components.
Troubleshooting
If the fan does not rotate, check fuses, wiring connections, and remote control batteries. For noisy operation, ensure all screws and the mounting bracket are secure. If the fan is new, allow it to run for at least 8 hours to let parts settle. For further assistance, contact the manufacturer or a professional service center.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check fuses, verify electrical supply, ensure wiring is correctly tightened by a qualified electrician, and check remote control batteries/pairing.
Noisy operation
Tighten all screws and the mounting bracket. Ensure only the manufacturer-supplied remote control is used.
Mechanical noise on first use
Allow the fan to run for at least 8 hours to let all parts settle into their positions.
Insufficient airflow
Remove objects in close proximity to the fan that may restrict airflow, or ensure the fan diameter is appropriate for the room size.
Before use
- Ensure the mounting surface can support at least 30 kg.
- Verify the fan is installed at least 230 cm above the ground.
- Ensure there is at least 30 cm of clearance from walls or obstacles.
- Confirm the electrical circuit is protected and compatible.
- Check that all screws are properly tightened after installation.
Specs in practice
- Nominal voltage
- 220-240 V ~ AC 50/60 Hz
- Lighting power
- 2 x 24 W
- Color temperature
- Adjustable: 3000K (warm), 4000K (daylight), 6000K (cool)
Images and diagrams

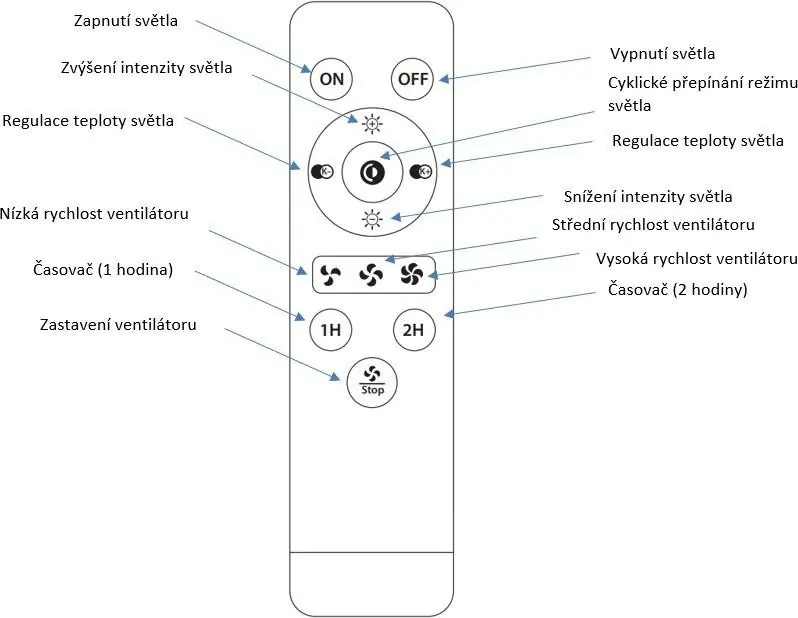

- The remote control features buttons for lighting (ON/OFF, intensity, color temperature), fan speed (low, medium, high), timer (1H, 2H), and fan stop.
Model compatibility
- Not suitable for rooms with high humidity (e.g., bathrooms, swimming pools).
- Do not connect to external dimmers or wall-mounted potentiometers.
- Designed for indoor domestic use only.
