Noaton 11056GR Vega Ceiling Fan User Manual
Comprehensive user guide for the Noaton 11056GR Vega ceiling fan, including installation, remote control operation, Bluetooth speaker setup, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview

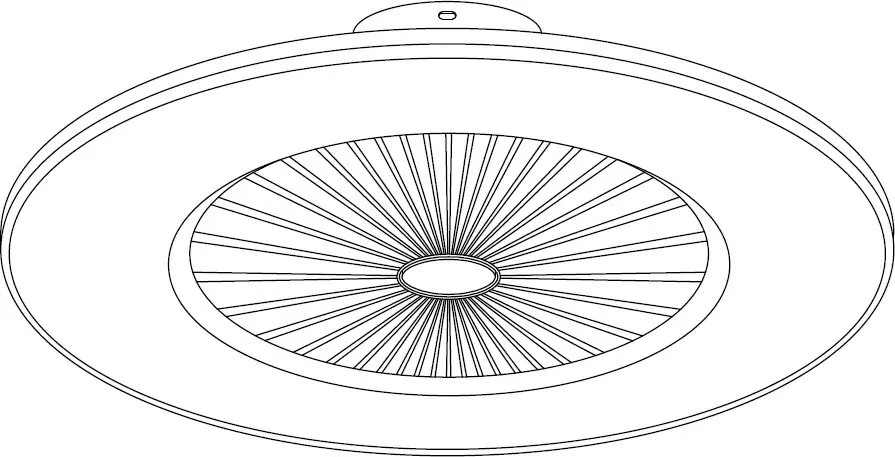

The Noaton 11056GR Vega is a modern ceiling fan designed for indoor domestic use. It features integrated LED lighting with adjustable color temperature and intensity, as well as a built-in wireless Bluetooth speaker for audio playback. The fan is controlled via an included infrared remote control.

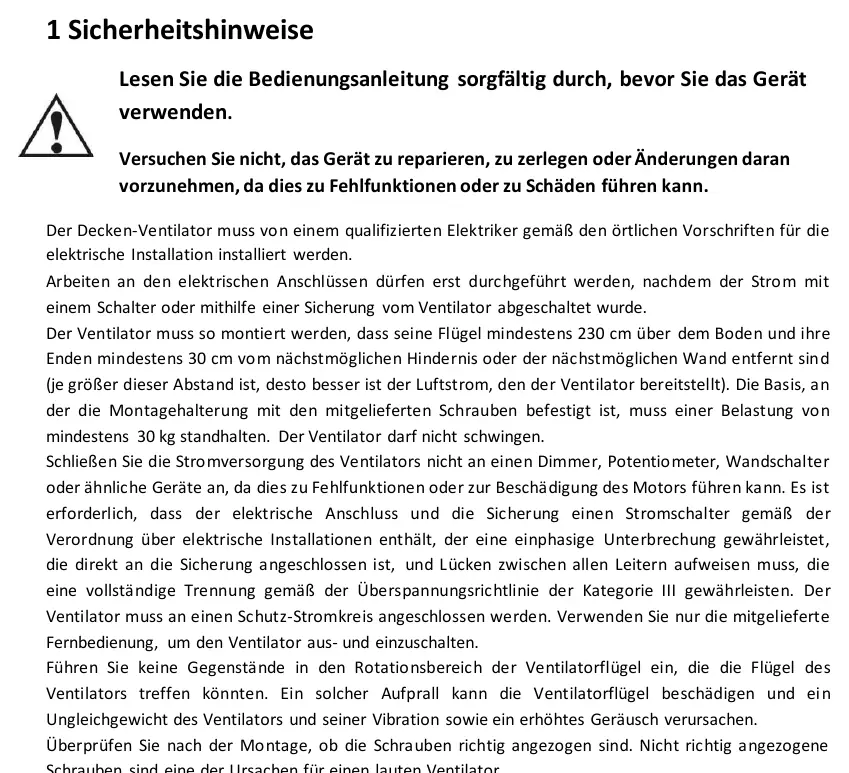

Safety Instructions
Installation must be performed by a qualified electrician in compliance with local electrical regulations. Ensure the mounting surface can support at least 30 kg. The fan blades must be at least 230 cm above the ground and 30 cm from any wall or obstacle. Do not connect the fan to dimmers or wall switches, as this may damage the motor. Use only the provided remote control for operation.
Installation
1. Secure the mounting bracket to the ceiling or wall using the provided hardware. 2. Disconnect the main power supply. 3. Connect the electrical wiring. 4. Attach the fan unit to the bracket and lock it into place. 5. Verify all screws are tightened. 6. Restore power.
Remote Control and Speaker
The remote control allows for fan speed adjustment, lighting control (color temperature and dimming), and timer settings. It is factory-paired but can be re-synced using the SETUP button if signal issues occur. The Bluetooth speaker connects automatically to devices; if a pairing code is requested, use 000000.
Maintenance
Regularly check and tighten all screws at least twice a year. Clean the surface with a soft, damp cloth. Do not use water, chemicals, or abrasive cleaners, as these can damage the motor or electronic components.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check fuses, verify electrical connections (by a professional), ensure the remote control has fresh batteries, or re-pair the remote using the SETUP button.
Noisy operation
Tighten loose screws or the mounting bracket. Ensure only the supplied remote control is being used.
Insufficient airflow
Remove objects near the fan that may restrict airflow or ensure the fan diameter is appropriate for the room size.
Before use
- Ensure the mounting surface supports at least 30 kg.
- Verify the fan is installed at least 230 cm above the floor.
- Check that there is at least 30 cm of clearance from walls or obstacles.
- Ensure the power supply is disconnected before starting installation.
- Confirm the fan is not connected to a wall dimmer or potentiometer.
Specs in practice
- Light Colors
- Warm white, daylight white, cool white (3000K/4000K/6000K)
- Bluetooth Speaker
- 3-5 W output power
- Protection Class
- Class II
Images and diagrams
- The remote control features buttons for lighting (on/off, intensity, color temperature), fan speed (low, medium, high), timer, and pairing.
Model compatibility
- Not suitable for rooms with high humidity such as bathrooms or swimming pools.
- Must be installed by a qualified electrician.
- Only use the supplied remote control.
