User Manual for Noaton CALLISTO 11055 Ceiling Fan
Comprehensive user manual for the Noaton CALLISTO 11055 ceiling fan, including installation, remote control operation, maintenance, and troubleshooting guide.
Table of contents
Manual images
Jump to the sectionProduct Overview

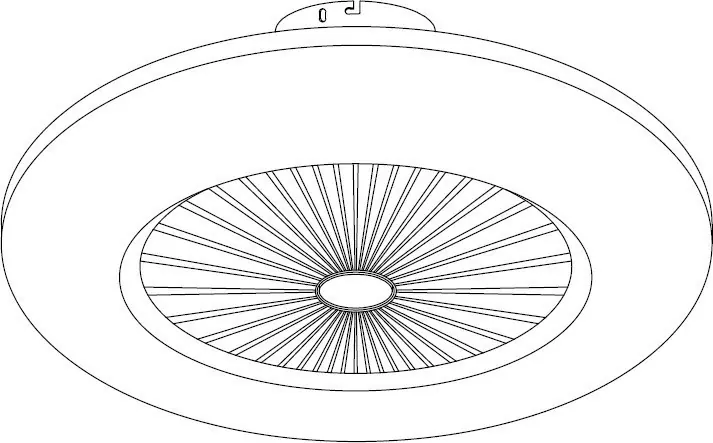

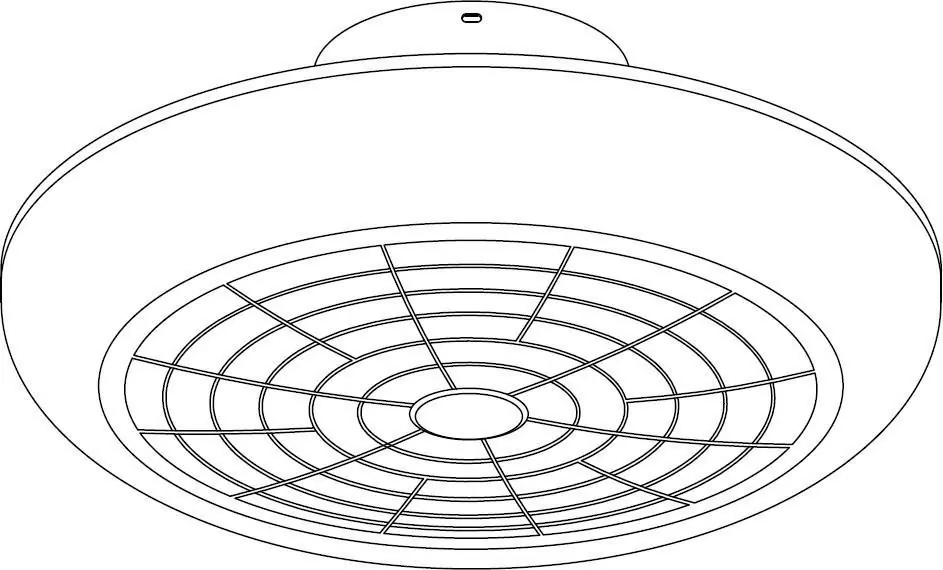

The Noaton CALLISTO 11055 is a modern ceiling fan designed for indoor domestic use. It features integrated LED lighting with adjustable color temperature and intensity, controlled via the included infrared remote control. The fan is equipped with 5 ABS blades and is suitable for ceiling or wall mounting.
Safety Instructions
Installation must be performed by a qualified electrician in compliance with local regulations. Ensure the mounting surface can support at least 30 kg. The fan must be installed at least 230 cm above the floor and 30 cm from any obstacles. Do not connect the fan to dimmers or potentiometers, as this may damage the motor. Use only the provided remote control for operation.
Installation
1. Secure the mounting bracket to the ceiling or wall using the provided hardware. 2. Disconnect the household power supply. 3. Connect the electrical wiring from the home circuit to the fan. 4. Attach the fan body to the bracket, ensuring no wires are pinched. 5. Verify all screws are tightened securely before restoring power.
Remote Control Operation
The infrared remote control allows for adjustment of fan speed (3 levels), lighting intensity, and color temperature (warm white, daylight, cool white). It also features a timer function (1H, 2H). For optimal performance, ensure the remote is within 4 meters of the fan and pointed directly at it without obstacles.
Maintenance
Regularly check and tighten all screws at least twice a year due to the fan's rotational movement. Clean the surface with a soft, damp cloth. Do not use water, chemicals, or abrasive cleaners, as these can damage the motor or electronic components.
Troubleshooting
If the fan fails to operate, check household fuses, electrical connections, and remote control batteries. If the fan is noisy, ensure all screws and the mounting bracket are tight. Allow the fan to run for at least 8 hours during the first use to allow components to settle.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check household fuses, verify electrical connections (by a qualified electrician), replace remote batteries, or ensure power is supplied.
Noisy operation
Tighten all screws and the mounting bracket. Ensure only the manufacturer-supplied remote is used.
Insufficient airflow
Remove objects in close proximity to the fan that may restrict airflow. Ensure the fan diameter is appropriate for the room size.
Mechanical noise during first use
Allow the fan to run for at least 8 hours to let all parts settle into position.
Before use
- Ensure the mounting surface can support at least 30 kg.
- Verify the fan is installed at least 230 cm above the floor.
- Check that there is at least 30 cm of clearance from walls or obstacles.
- Ensure the power supply is disconnected before starting installation.
- Verify all screws are tightened securely after installation.
Specs in practice
- Input Voltage
- 220-240 V ~ AC 50/60 Hz
- Max Motor Power
- 35 W
- Lighting Power
- 2x24 W
- Color Temperature
- Adjustable: 3000K (warm white) / 4000K (daylight) / 6000K (cool white)
Images and diagrams

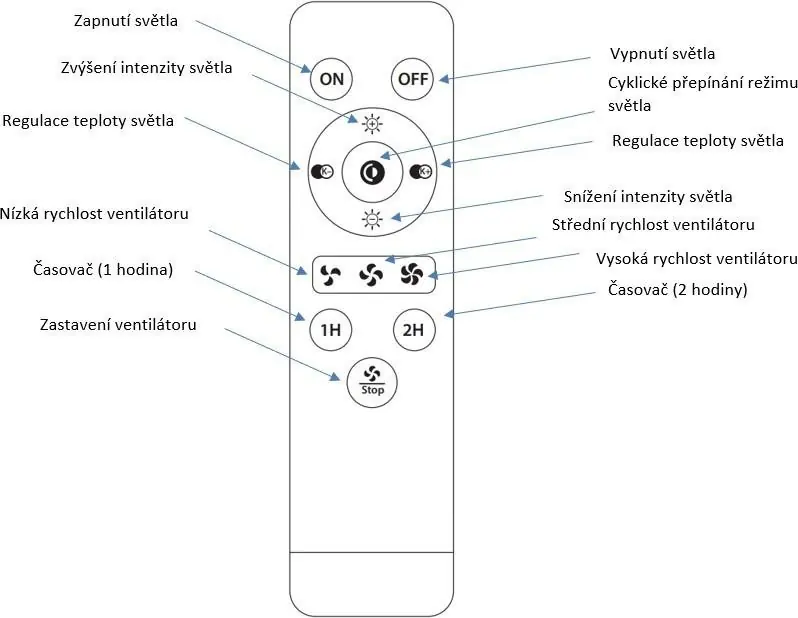

- The remote control features dedicated buttons for lighting (ON/OFF, intensity, color temperature) and fan control (speed levels, timer, stop).
- The IR diode is located at the top of the remote and must be pointed directly at the fan for reliable operation.
Model compatibility
- Not suitable for rooms with high humidity (e.g., bathrooms, swimming pools).
- Do not connect to external dimmers or wall-mounted potentiometers.
- Designed for indoor domestic use only.
