Noaton CALLISTO 11055A Ceiling Fan User Manual
User manual for the Noaton CALLISTO 11055A ceiling fan, including installation, remote control operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview

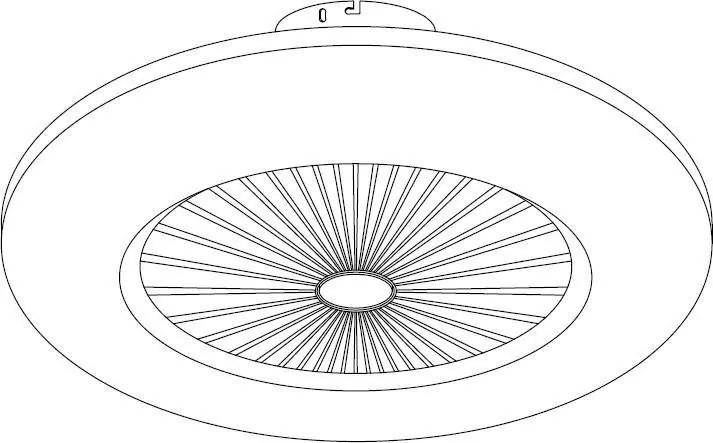

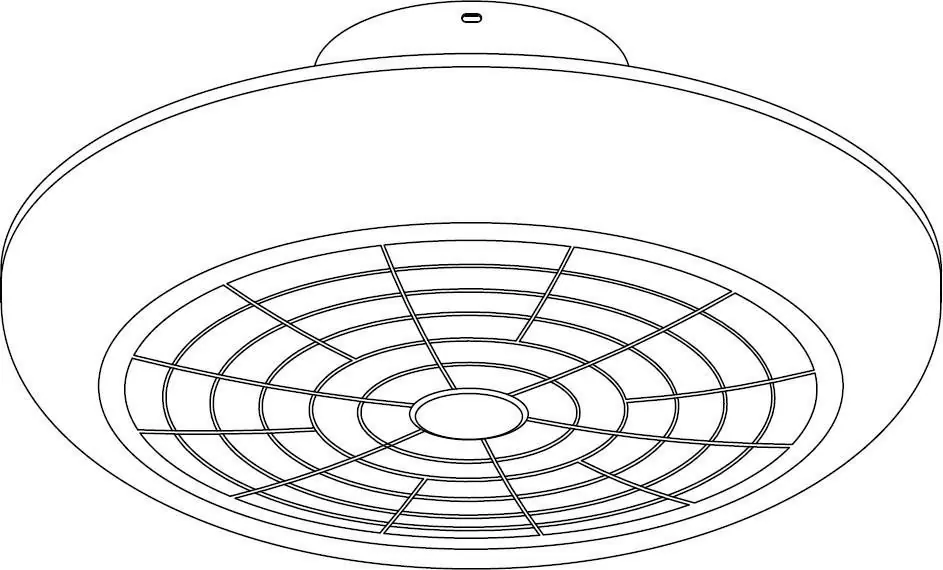

The Noaton CALLISTO 11055A is a ceiling fan designed for indoor domestic use. It features integrated LED lighting with adjustable color temperature and intensity, controlled via the included infrared remote control. The fan is equipped with 5 ABS blades and is suitable for ceiling or wall mounting.
Safety Instructions
Installation must be performed by a qualified electrician in accordance with local regulations. Ensure the mounting surface can support at least 30 kg. The fan blades must be at least 230 cm above the ground and 30 cm from any obstacle. Do not connect the fan to dimmers or wall switches, as this may damage the motor. Use only the provided remote control.
Installation
1. Secure the mounting bracket to the ceiling or wall using the provided dowels and screws. 2. Disconnect the power supply. 3. Connect the household wiring to the fan's conductors. 4. Attach the fan body to the bracket, ensuring no wires are pinched. 5. Tighten all screws and restore power.
Operation
The infrared remote control allows for immediate operation without pairing. It controls fan speed (3 levels), light intensity, and color temperature (warm white, daylight, cool white). The fan includes a timer function for automatic shutdown after 1 or 2 hours. For optimal performance, ensure the remote is pointed directly at the fan within a 4-meter range.
Maintenance
Regularly check and tighten all screws at least twice a year. Clean the surface with a soft, damp cloth. Do not use water, chemicals, or abrasive cleaners, as these can damage the motor or electronic components.
Troubleshooting
If the fan does not rotate, check fuses, wiring connections, and remote control batteries. If the fan is noisy, ensure all screws are tightened and the mounting bracket is secure. For mechanical noise during the first use, allow the fan to run for at least 8 hours to settle the components.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check household fuses, verify wiring connections (by a qualified electrician), replace remote batteries, or ensure power is supplied.
Noisy operation
Tighten all screws and the mounting bracket. Ensure only the manufacturer-supplied remote is used.
Mechanical noise during first use
Let the fan run for at least 8 hours to allow components to settle.
Insufficient airflow
Remove nearby objects restricting airflow or ensure the fan diameter is appropriate for the room size.
Before use
- Ensure the mounting surface supports at least 30 kg.
- Verify blades are at least 230 cm above the ground.
- Ensure at least 30 cm clearance from walls or obstacles.
- Check that the power supply is disconnected before installation.
- Ensure the remote control has fresh batteries.
Specs in practice
- Max. engine input power
- 35 W, the maximum power consumption of the fan motor.
- Lighting input power
- 2x24 W, total power consumption of the integrated LED lighting.
- Protection class
- Class I, requires a protective earth connection.
Images and diagrams

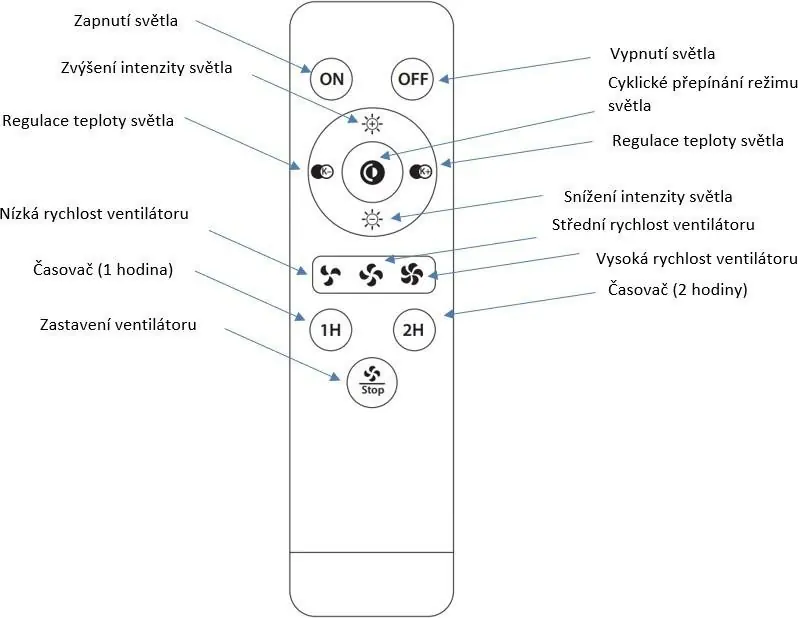

- The remote control diagram shows buttons for light ON/OFF, intensity adjustment, color temperature control, fan speed selection (low, medium, high), timer (1H, 2H), and fan stop.
Model compatibility
- Not suitable for rooms with high humidity (e.g., bathrooms, swimming pools).
- Do not connect to external dimmers or wall-mounted potentiometers.
- Designed for indoor domestic use only.
