Noaton Polaris 11045 Ceiling Fan Instruction Manual
Comprehensive user manual for the Noaton Polaris 11045 ceiling fan, including installation, remote control operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview

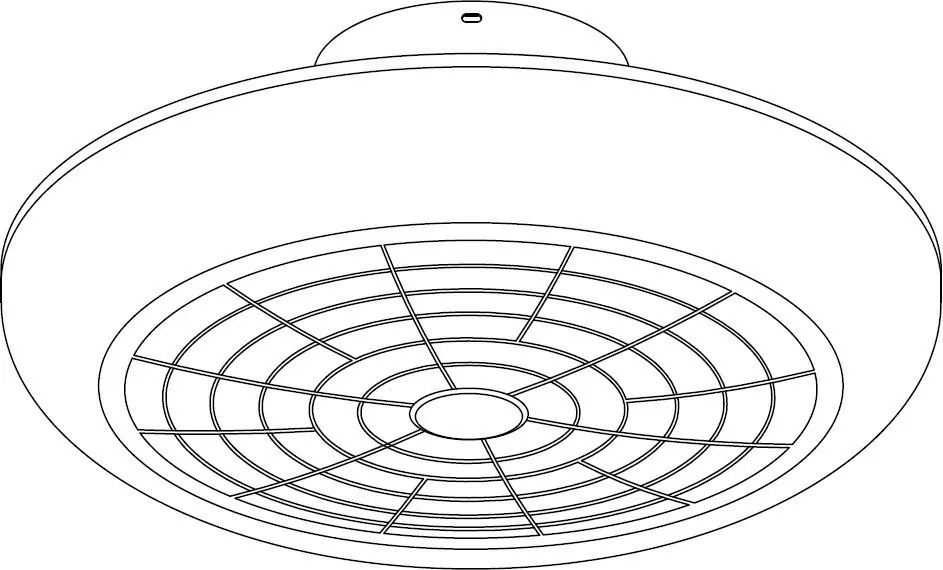

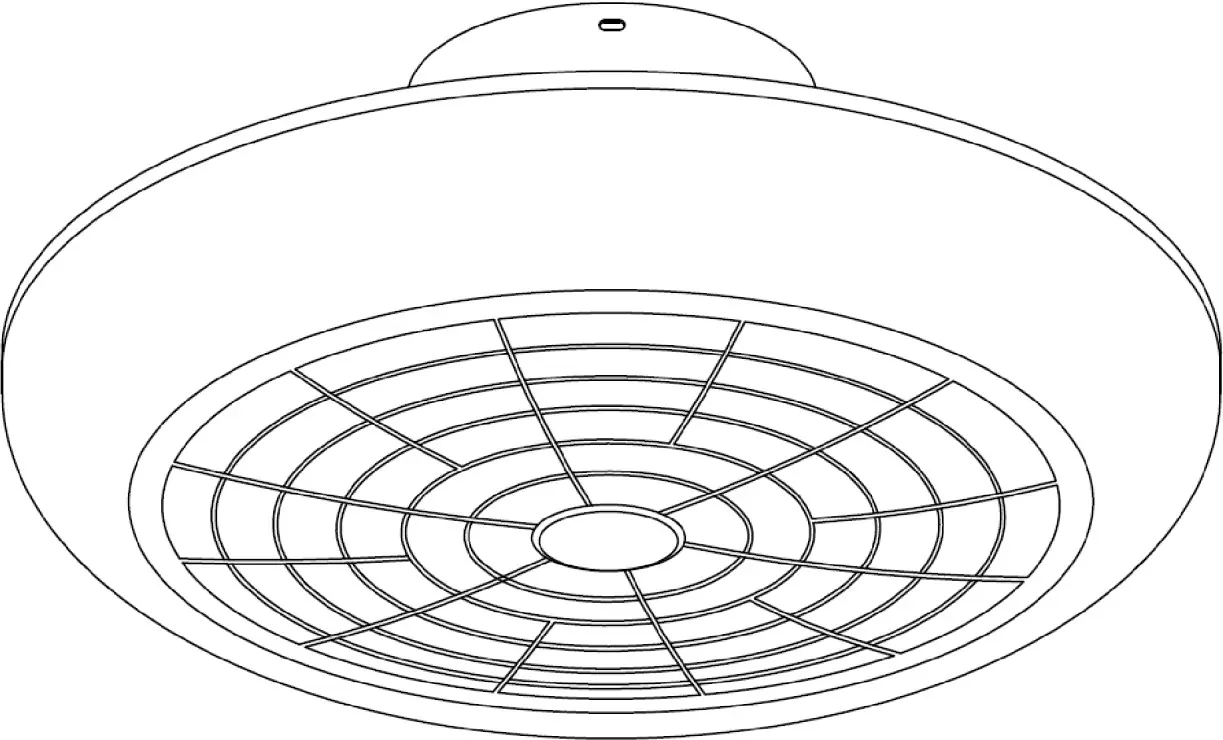

The Noaton Polaris 11045 is a ceiling fan designed for indoor domestic use. It features an integrated LED light with adjustable color temperature and intensity, controlled via the included infrared remote control. The fan is equipped with 5 ABS blades and is suitable for ceiling or wall mounting.
Safety Instructions
Installation must be performed by a qualified electrician in compliance with local electrical regulations. Ensure the fan is mounted at least 230 cm above the ground and 30 cm from any obstacles. The mounting surface must support at least 30 kg. Do not connect the fan to dimmers or wall switches, as this may damage the motor. Use only the provided remote control for operation.
Installation
1. Secure the mounting bracket to the ceiling or wall using the provided dowels and screws. 2. Disconnect the household power supply. 3. Connect the household circuit wires to the fan wires. 4. Attach the fan body to the bracket, ensuring no wires are pinched. 5. Tighten all screws and restore power.
Remote Control
The infrared remote control allows for immediate operation without pairing. It controls fan speed, light intensity, and color temperature (warm white, daylight white, cool white). For optimal performance, ensure there are no obstacles between the remote and the fan, and keep the distance within 4 meters.
Maintenance
Regularly check and tighten all screws at least twice a year. Clean the surface with a soft, damp cloth. Do not use water, chemicals, detergents, or abrasive cleaners, as these can damage the motor or electronic components.
Troubleshooting
If the fan does not rotate, check the fuses, wiring connections, and remote control batteries. If the fan is noisy, ensure all screws and the mounting bracket are tight. For mechanical noise during the first use, allow the fan to run for at least 8 hours to settle.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check fuses, verify wiring connections (by a qualified electrician), replace remote batteries, or re-pair the remote using the central button.
Noisy operation
Tighten all screws and the mounting bracket. Ensure only the manufacturer-supplied remote is used.
Mechanical noise
Allow the fan to run for at least 8 hours during the first use to let all parts settle.
Insufficient airflow
Remove objects in close proximity to the fan or ensure the fan diameter is appropriate for the room size.
Before use
- Ensure the mounting surface can support at least 30 kg.
- Verify the fan is installed at least 230 cm above the ground.
- Check that the fan is at least 30 cm away from walls or obstacles.
- Ensure the power supply is disconnected before installation.
- Verify that no dimmers or wall switches are connected to the fan.
Specs in practice
- Input Voltage
- 220-240 V ~ AC 50/60 Hz
- Light Colors
- Warm white / daylight white / cool white (3000K/4000K/6000K)
- Max Motor Power
- 35 W
Images and diagrams

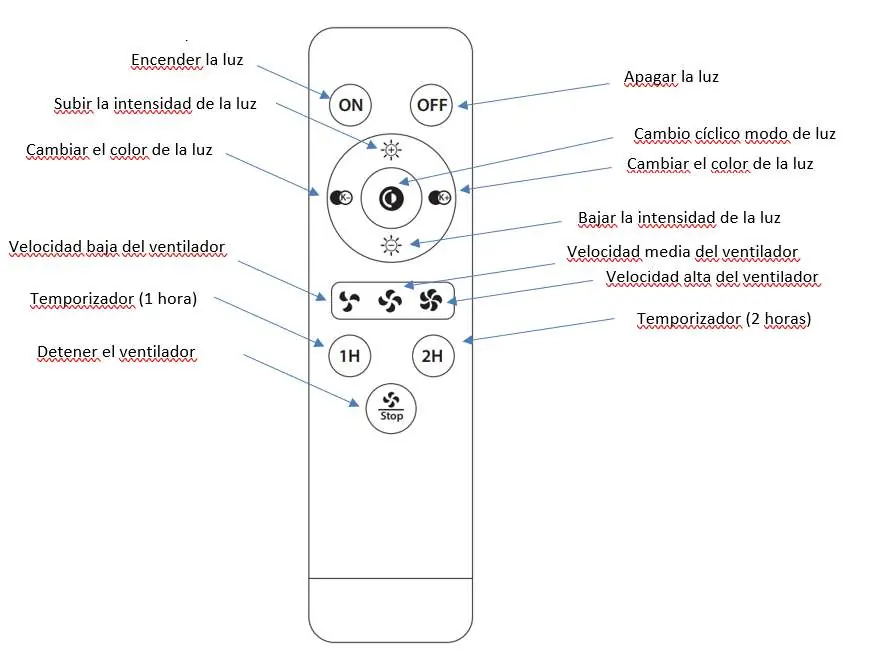

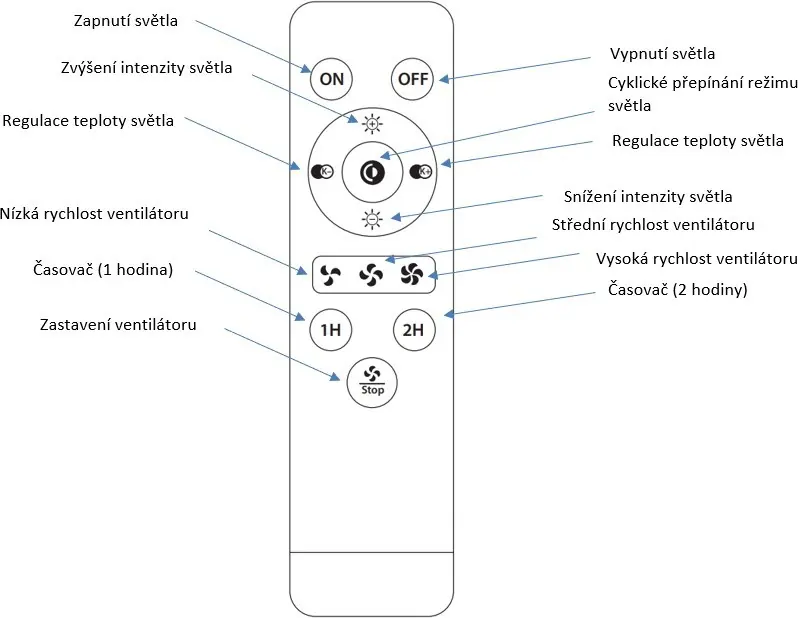

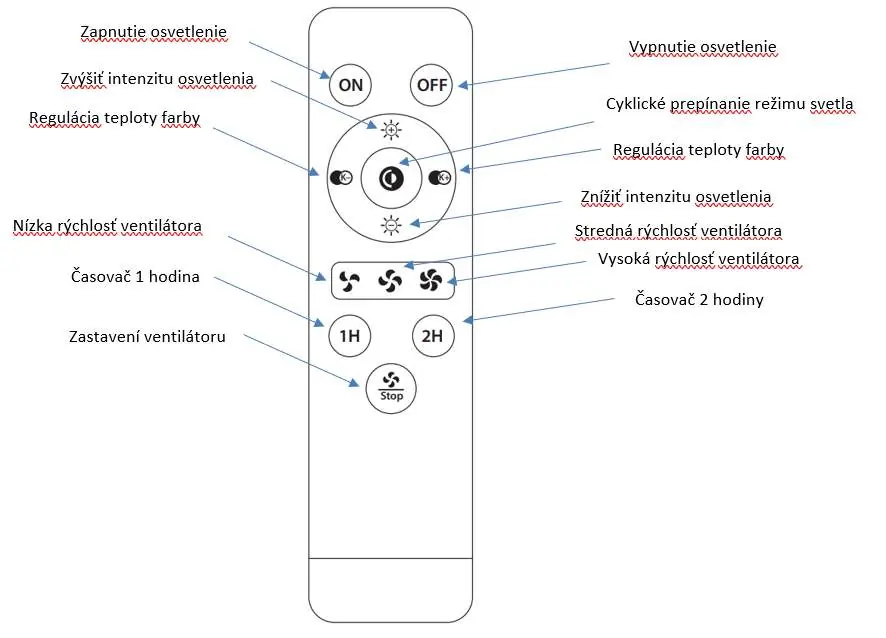

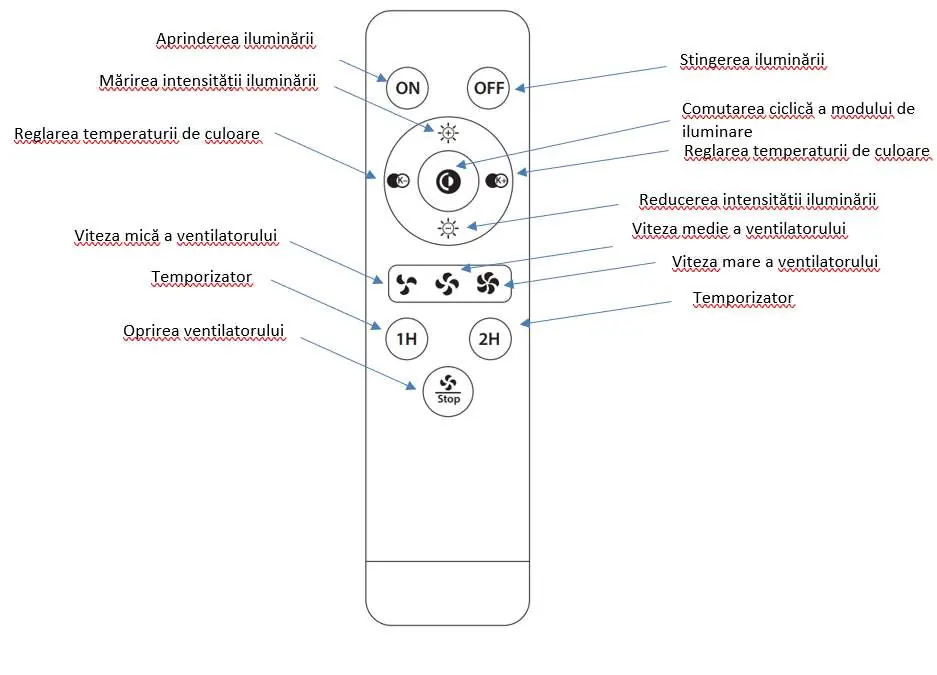

- The remote control diagram shows buttons for light ON/OFF, intensity adjustment, color temperature control, fan speed settings (low, medium, high), timer (1H, 2H), and fan stop.
Model compatibility
- Not suitable for rooms with high humidity (e.g., bathrooms, swimming pools).
- Must be connected to a protected circuit.
- Infrared remote control requires a clear line of sight within 4 meters.
