User Manual for Oypla 3838 2000W Double Hot Plate
Quick guide for the Oypla 3838 2000W Double Hot Plate. Learn how to safely operate, maintain, and use your hot plate for cooking and keeping food warm.
Quick answers from the manual
Quick answer
- The Oypla 3838 is a 2000W double hot plate. Before first use, run it on the highest setting (5) for 3-5 minutes without cookware to protect the coating. p. 1, 3
Key actions
- Run on max setting (5) for 3-5 minutes before first use. p. 3
First start
- Place on a flat, dry, heat-resistant surface, plug in, and set the dial to the desired temperature. p. 3
Show 4 more answers Show less
Problems and fixes
Smoke during first use
This is normal due to manufacturing oils.
p. 2Maintenance and reset
- Clean only with a damp cloth. Do not use strong industrial cleaning substances or abrasive materials. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 2000W | Total power consumption | p. 1 |
Where to find it in the PDF
- Front Cover p. 1
- Safety Instructions p. 2
- Operating Instructions p. 3
- Back Cover p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
Before using your infrared hot plate for the first time, it is essential to run the unit on the highest setting (position 5) for 3 to 5 minutes without any cooking utensils on the plates. This process protects the coating. You may notice some smoke during this initial run, which is normal and caused by manufacturing oils.
Safety Instructions
To ensure safe operation, please adhere to the following guidelines:
- Indoor Use Only: This product is intended for indoor use only.
- Surface Requirements: Always use the appliance on a stable, level, and dry surface.
- Hot Surfaces: The crystallite surfaces and heating elements become extremely hot. Do not touch these parts while in use or while they are cooling down.
- Electrical Safety: Do not immerse the cord, plug, or any part of the appliance in water or other liquids. Ensure the power supply matches the rating label and the socket is earthed.
- Unattended Use: Never leave the appliance unattended while in use.
- Cookware: Use flat-bottomed pans to ensure full contact with the hotplate for maximum efficiency. Do not use unstable pans or glass containers.
- Cooling: When not in use, unplug the appliance and allow it to cool down completely.
Operating Instructions
Follow these steps to operate your hot plate:
- Place the hot plate on a flat, dry, and heat-resistant surface.
- Ensure the temperature control dial is set to the off position.
- Insert the plug into the power socket.
- Turn the control dial to the desired setting. The unit will cycle on and off to maintain the selected temperature.
- The indicator light at the front will turn off when the hot plate reaches the desired temperature.
- The heating element will begin to heat immediately.
Keeping Food Warm
To keep food warm, turn the temperature knob to position 2. When you turn the knob off, the food will stay warm for up to 30 minutes as the hot plate gradually cools down.
Cleaning and Maintenance
Clean the appliance only with a damp cloth. Do not use strong industrial cleaning substances or abrasive materials, as these may damage the product. Ensure the product is off, unplugged, and has been left for five minutes to cool before cleaning.
Practical help
Common problems
Smoke during first use
This is normal due to manufacturing oils used during production; ensure the area is ventilated.
Food not staying warm
Set the temperature knob to position 2 to maintain a constant warm temperature.
Before use
- Place on a flat, dry, and heat-resistant surface
- Ensure the power socket is earthed
- Check that the power supply matches the rating label
- Remove all packaging
- Run on max setting (5) for 3-5 minutes without cookware
Show more Show less

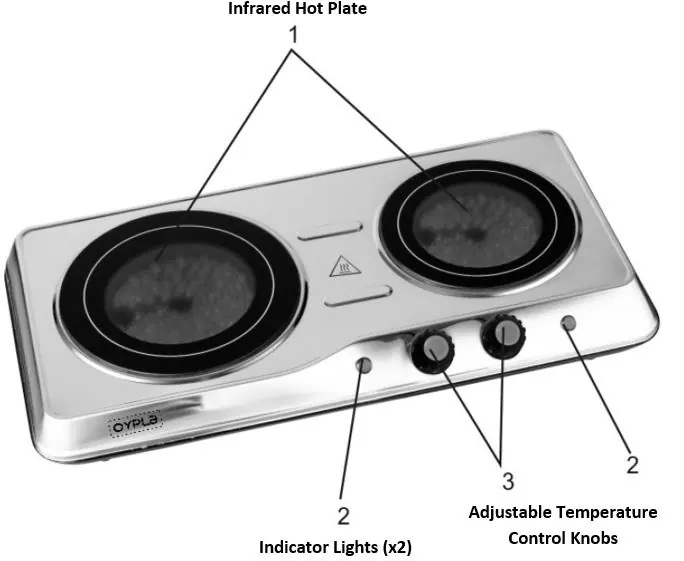

Images and diagrams

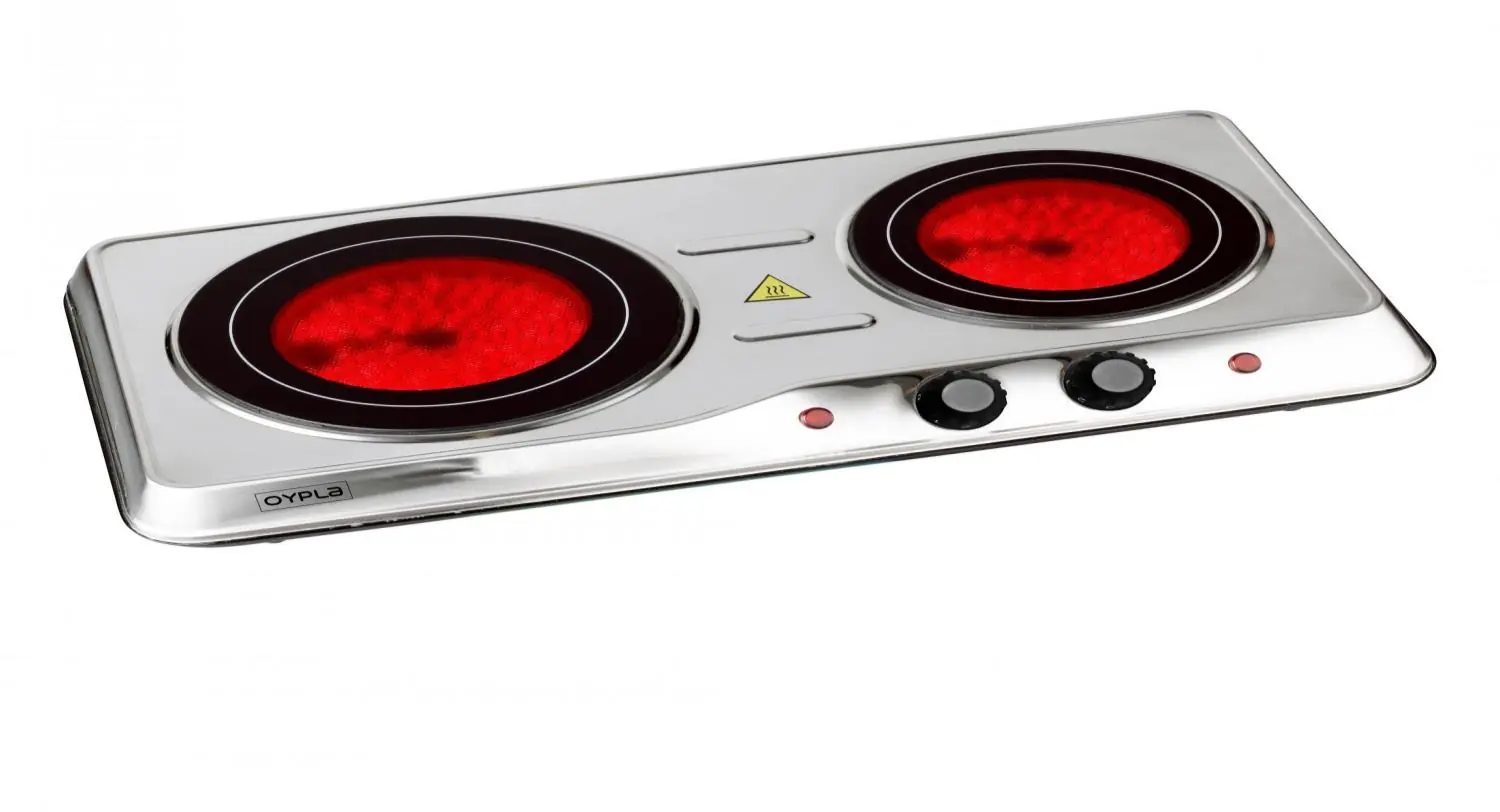

- 1: Infrared Hot Plate
- 2: Indicator Lights
- 3: Adjustable Temperature Control Knobs
Model compatibility
- Use flat-bottomed pans only for maximum heat efficiency
- Do not use glass containers
