Disassembly Instructions for Philips 1-LIGHT Decorative Pendant Industrial

Quick guide from the manual

This document provides essential instructions for the safe disassembly of the Philips Decorative Pendant Industrial lighting fixture. It covers two main configurations: standard pendant surface disassembly and track-mounted disassembly. Always ensure the power is disconnected before starting any work.

Lamp disassemble

To disassemble the lamp unit:

• Ensure the power supply is disconnected.
• Carefully rotate the lamp to remove it from the fixture housing.

Pendant Surface disassemble

Follow these steps to disassemble the surface-mounted pendant:

1. Loosen the screw on the ceiling canopy.
2. Disconnect the electrical connections inside the canopy.
3. Release the cable from the hook mechanism.
4. Carefully remove the fixture from the ceiling mount.

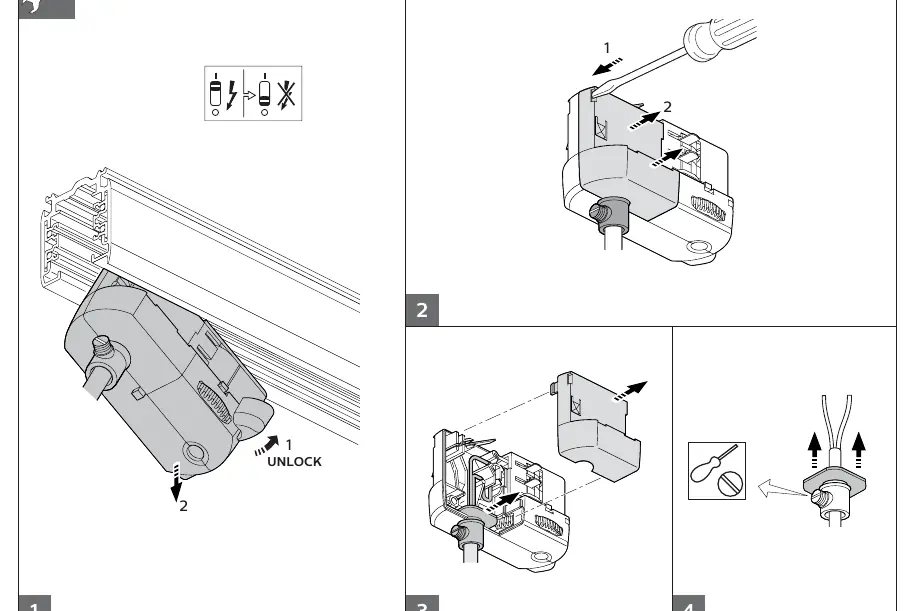

Track-mounted disassemble

To remove the fixture from a track system:

1. Locate the unlock mechanism on the track adapter.
2. Move the switch to the UNLOCK position.
3. Use a screwdriver to release the adapter from the track.
4. Disconnect the wiring as required.

Luminaire disassemble

To disassemble the main luminaire housing:

1. Gently pull the shade away from the main body.
2. Unscrew the locking ring to release the shade completely.
3. Separate the individual components for recycling.

Safety and Disposal

This product contains high-quality materials that can be recycled. The crossed-out wheeled bin symbol indicates that the product is covered by the European Directive 2012/19/EU. Do not dispose of this product with normal household waste. Please inform yourself about local waste collection systems for electrical and electronic products. If the product contains non-user replaceable batteries, they must be removed by a professional before disposal.
