User Manual for Philips Unite LED 7000 Series 110HDL7012IA Video Wall Display
Quick guide for the Philips Unite LED 7000 Series 110HDL7012IA video wall display. Includes installation highlights, technical specifications, operating conditions, and included accessories.
Table of contents
Quick guide from the manual

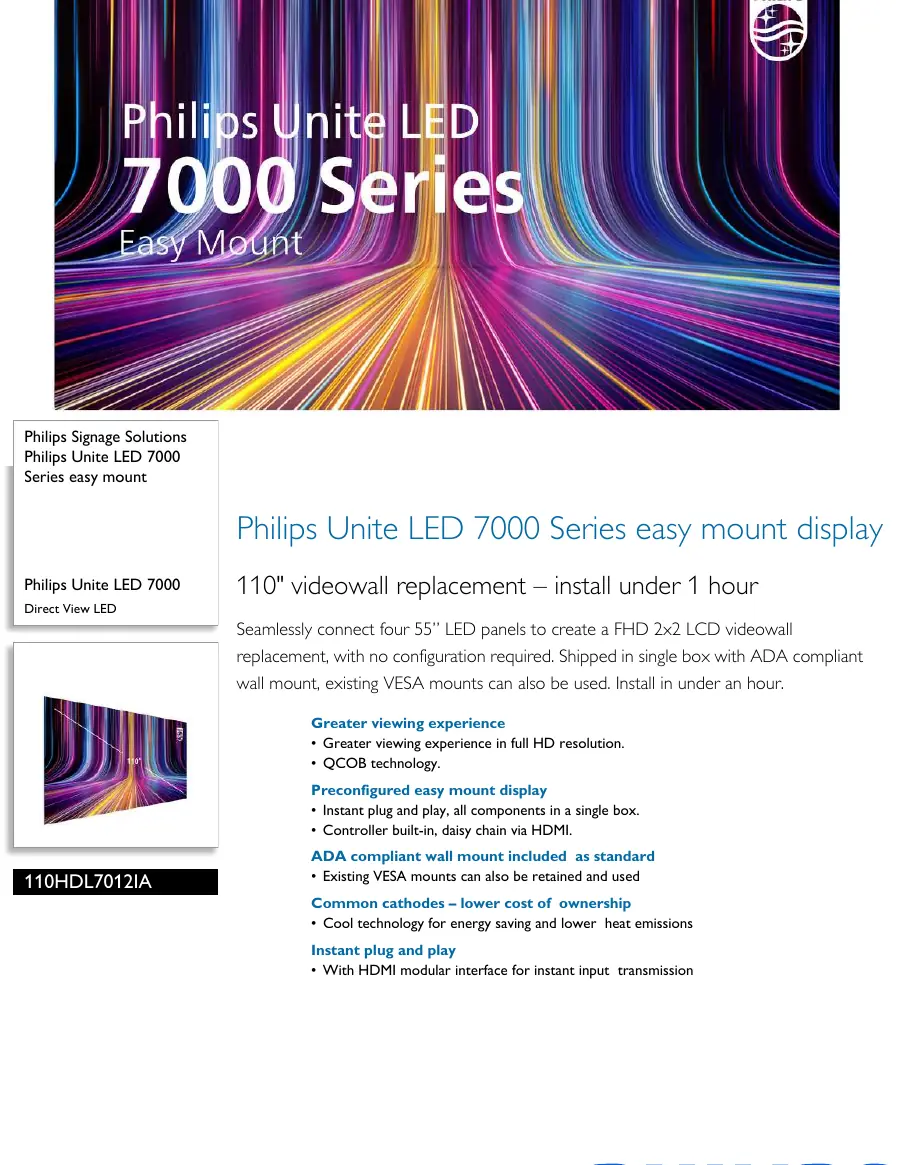

The Philips Unite LED 7000 Series (110HDL7012IA) is a preconfigured 110-inch video wall display designed for rapid installation. It features a modular design with common cathode technology for energy efficiency and heat reduction, suitable for indoor environments.
Product Overview
This display is a 2x2 LCD videowall replacement consisting of four 55-inch LED panels. It utilizes QCOB technology and offers full HD resolution with an HDMI modular interface for instant input transmission.
Installation and Setup
- The system is designed for installation in under one hour.
- It includes an ADA-compliant wall mount, but existing VESA mounts (400x400) can also be used.
- The display is "plug and play" with a built-in controller and daisy-chain capability via HDMI.
Operating Conditions
- Environment: Indoor use only.
- Temperature: Operating range is -10°C to 45°C; storage range is -20°C to 60°C.
- Humidity: 10% to 90% (non-condensing).
Technical Specifications
- Input Voltage: AC 100-240V (50/60 Hz).
- Brightness: 600 (after calibration) to 700 (before calibration).
- Refresh Rate: 3840 Hz.
- Contrast Ratio: 7000:1.
- Weight: 74 kg (total display).
Included Accessories
The package includes: 2 spare LED display modules, 2 AAA batteries, a Quick Start Guide, 4 power cables (300cm), 3 HDMI cables (200cm), 1 HDMI cable (300cm), 1 USB cable (300cm), VESA wall mount, 2 pairs of anti-static gloves, a manual suction tool, and an IR remote control.
Manufacturer information
Philips
Practical help
Before use
- Verify the installation site is indoors.
- Ensure power supply is AC 100-240V.
- Check that the wall mount supports 400x400 VESA configuration.
- Confirm operating temperature is between -10°C and 45°C.
- Ensure humidity levels are within 10-90% RH.
Specs in practice
- Refresh Rate (3840 Hz)
- Indicates the frequency at which the display updates, ensuring smooth motion and reduced flicker.
- Common Cathode
- A technology that improves energy efficiency and reduces heat emissions compared to standard LED designs.
- Brightness (600-700)
- The light output level; 700 before calibration and 600 after, ensuring color and brightness accuracy.
Model compatibility
- Indoor use only.
- Compatible with existing 400x400 VESA mounts.
