Instruction Manual for RC Factory 1104-4300KV Motor Mount

Product Overview

The RC Factory 1104-4300KV motor mount is a specialized component designed for lightweight RC aircraft, specifically the Pylon Rookie series. This assembly provides a secure, lightweight platform for the 1104/4300kv motor, ensuring proper thrust alignment and structural integrity during flight.

Assembly and Installation

The installation process requires precision to ensure the motor is correctly oriented. Key steps include:

• Preparation: Ensure all components are clean and free of debris.
• Mount Assembly: Join the wooden mount pieces carefully. Use Medium CA glue to bond the structural parts. Ensure the orientation is correct as shown in the diagrams; incorrect assembly will prevent proper motor seating.

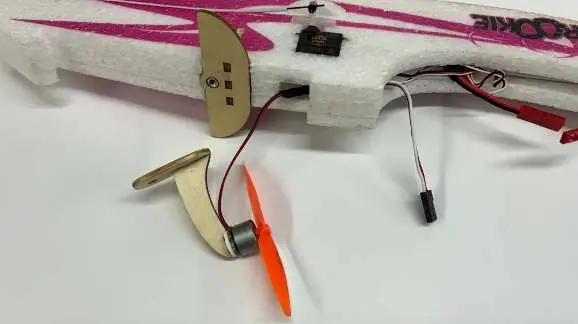

• Motor Attachment: Secure the motor to the mount using the provided screws. Ensure the motor is centered and the screws are tightened evenly to avoid vibration.
• Propeller Installation: Attach the propeller to the motor shaft. Ensure it is seated correctly and balanced.

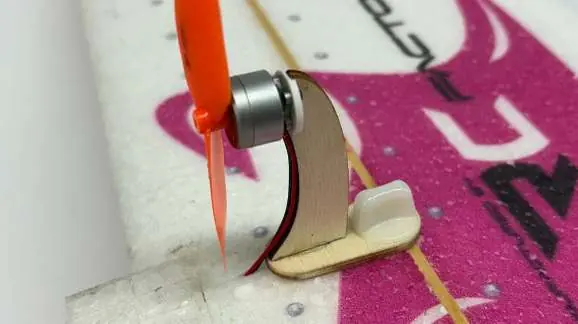

• Mounting to Airframe: The assembly is designed to be glued or fitted into the designated slot on the aircraft fuselage. Some trimming of the foam may be required for a perfect fit.

Safety and Maintenance

Always inspect the motor mount before each flight. Check for any signs of stress, cracks in the wood, or loose screws. Ensure the propeller is not damaged, as even minor nicks can cause significant vibration and potential failure. The mount is designed for specific flight conditions; do not modify the structure, as this may affect the center of gravity and flight characteristics of the aircraft.
