User Manual for Rich Solar Alpha 1 Lite LiFePO4 Battery

Quick guide from the manual

The Rich Solar Alpha 1 Lite is a LiFePO4 battery designed for electrical power storage in motorhomes, RVs, and camping applications. This manual provides essential safety, installation, and operational guidelines. Key points include:

• Safety: Always use insulated tools, wear protective gear, and avoid contact with battery fluid. Never use defective batteries.
• Installation: Mount the battery with poles facing up. Do not mount on a wall without a bracket.
• Parallel Connection: A maximum of 4 batteries can be connected in parallel. Ensure all cables are of the same length and specification.
• Charging: Do not exceed 14.4V charging voltage. Ensure ambient temperature is within the recommended range.

Safety Instructions

Handling lithium batteries requires caution to prevent injury or damage:

• Risk of Injury: Batteries contain caustic acids. If contact occurs, wash thoroughly with water and consult a doctor. Do not wear metal objects like rings or watches when working on batteries.
• Electrocution & Explosion Hazard: Keep away from water, heat sources, and flammable liquids or gases. Do not smoke or create sparks near the battery.
• Handling: Only use rechargeable batteries with an integrated Battery Management System (BMS). Do not carry the battery by its terminals.

Installation

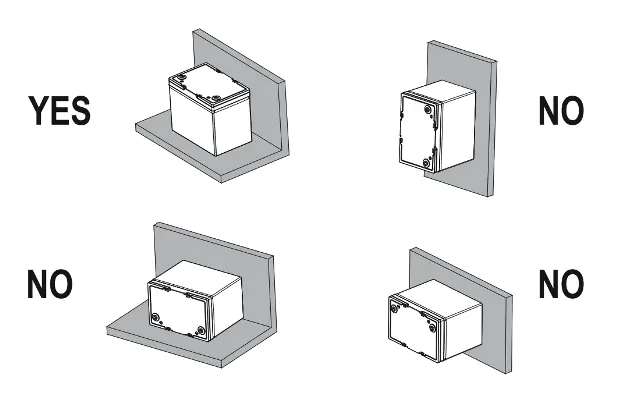

The battery must be installed by a qualified electrician familiar with local regulations. Place the battery smoothly with the positive and negative poles facing up. Do not mount the battery on the wall without the appropriate mounting bracket.

Configuration and Wiring

When connecting multiple batteries in parallel:

• Ensure the voltage difference between battery packs is within 1V before connecting.
• Fully charge each battery pack separately before parallel connection.
• Use cables of the same length and specifications.
• The busbar must have sufficient current-carrying capacity.
• Do not connect battery packs of different brands, models, or specifications.

Charging and Discharging

The built-in BMS protects against over-charge, deep discharge, and over-temperature.

• Charging: Do not charge with higher current than recommended. Charging voltage must not exceed 14.4V.
• Discharging: Do not discharge below the cutoff voltage (11.2V). Keep the battery charged periodically (40-50%) to prevent over-discharge.

Troubleshooting

If the battery fails to discharge or charge, check the following:

• Battery cannot discharge: Check for over-temperature (cell > 149°F), under-voltage, over-current, short circuits, or system failure. Regulate discharge ambient temperature below 122°F.
• Battery cannot charge: Check for over-voltage, over-current, or temperature issues (cell < 32°F or > 131°F). Disconnect the charger and load for a few minutes, then try again.

Technical Data

Key specifications for the Alpha 1 Lite:

• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Nominal Energy: 1280Wh
• Max Charging Voltage: 14.4V
• Nominal Discharging Cutoff Voltage: 11.2V
• Weight: Approx. 24.3lb / 11.0kg
