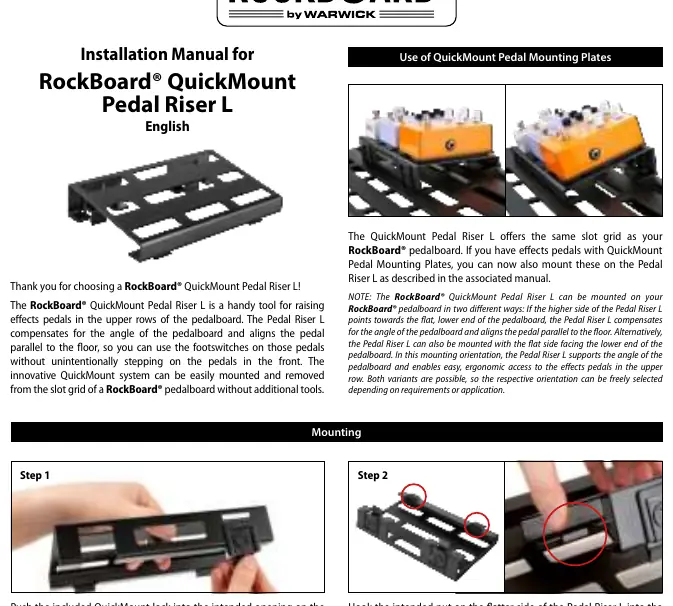

Installation Manual for RockBoard QuickMount Pedal Riser L
Installation and usage guide for the RockBoard QuickMount Pedal Riser L. Includes mounting steps, orientation options for ergonomic pedal access, and removal instructions.
Table of contents
Quick guide from the manual
The RockBoard QuickMount Pedal Riser L is designed to raise effects pedals in the upper rows of a pedalboard. It allows for two different mounting orientations to either align pedals parallel to the floor or to support the angle of the pedalboard for better ergonomic access. The system uses the standard slot grid found on RockBoard pedalboards and requires no additional tools for installation or removal.
Mounting instructions
Follow these steps to install the Pedal Riser L onto your pedalboard:
- Prepare the lock: Push the included QuickMount lock into the intended opening on the higher side of the Pedal Riser L.
- Position the riser: Hook the intended nut on the flatter side of the Pedal Riser L into the slot grid of your RockBoard pedalboard.
- Secure the riser: Carefully push the Pedal Riser L down until the QuickMount lock latches securely into the slot grid of the pedalboard.
Mounting orientations
The Pedal Riser L can be mounted in two ways depending on your requirements:
- Parallel to the floor: Mount the riser with the higher side pointing towards the flat, lower end of the pedalboard. This compensates for the angle of the pedalboard.
- Ergonomic access: Mount the riser with the flat side facing the lower end of the pedalboard. This supports the angle of the pedalboard, making it easier to reach pedals in the upper row.
Removal
To remove the Pedal Riser L, press the QuickMount lock lightly from the underside of the pedalboard to unlock the mechanism, then lift the riser out of the slot grid.
Compatibility
The Pedal Riser L is compatible with RockBoard pedalboards featuring a slot grid. If you use effects pedals with QuickMount Pedal Mounting Plates, these can be mounted directly onto the Pedal Riser L.
Practical help
Common problems
Pedal Riser L is difficult to remove
Ensure you are pressing the QuickMount lock from the underside of the pedalboard to release the latch before attempting to lift the riser.
Before use
- Verify your pedalboard has a slot grid system.
- Identify the higher and flatter sides of the Pedal Riser L.
- Decide on the desired orientation (parallel to floor vs. angled for ergonomics).
- Ensure the QuickMount lock is inserted into the riser before mounting.
Images and diagrams
- Step 1: Inserting the QuickMount lock into the riser.
- Step 2: Hooking the nut into the pedalboard slot grid.
- Step 3: Latching the riser into place.
- Step 4: Unlocking the riser from the underside.
Model compatibility
- Compatible with RockBoard pedalboards with slot grids.
- Supports effects pedals equipped with QuickMount Pedal Mounting Plates.
