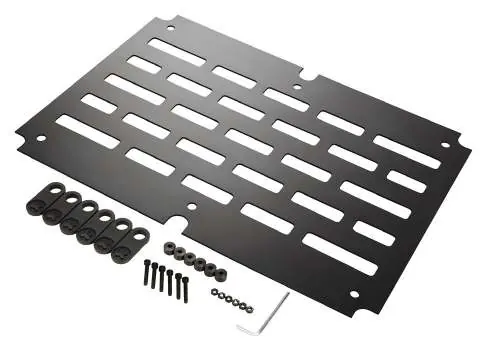

The RockBoard Base Plate is an optional mounting solution designed for RockBoard pedalboards. It allows for a clean, drill-free installation. The system utilizes six twist locks, enabling you to open and close the base plate at any time without the need for tools once installed.
Installation
- Turn your RockBoard pedalboard upside down.
- Using the included Allen key, remove all feet and individual nuts from the pedalboard. Do not throw these parts away.
- Mount one twist lock on each of the rubber feet in the order shown in the diagram.
- Reattach all rubber feet to your RockBoard pedalboard using the wrench and Allen key. Ensure the fasteners are turned outward.
- Place the RockBoard Base Plate into the corresponding openings of the rubber feet.
- Rotate the latches inward to securely lock the Base Plate into place.
Usage
Once installed, your RockBoard is ready for use. The Base Plate can be opened and closed at any time by simply turning the latches, providing easy access to the underside of your pedalboard.
Contact and Support
For distribution inquiries or support, you can contact the following offices:
- USA Distribution: [email protected], 629.202.6790
- Chinese Distribution: [email protected], +862134060110
- North European Distribution: [email protected], www.rockboard.de
- Headquarters: Warwick GmbH & Co. Music Equipment KG, 08258 Markneukirchen, Germany, +49 (0) 37422 / 555 - 0
Official resources from the manual
Practical help
Common problems
Lost hardware during installation
Ensure you keep all original feet and nuts removed from the pedalboard during step 1, as they are required for reassembly.
Before use
- Ensure you have the included Allen key and wrench.
- Verify you have all six twist locks.
- Ensure the pedalboard is turned upside down on a stable surface.
- Do not discard the original feet and nuts removed from the pedalboard.
Images and diagrams
- The installation process involves removing the original feet, attaching the twist locks to them, and reinstalling the feet to secure the base plate.
- The twist locks act as the primary mechanism for securing and releasing the base plate.
Model compatibility
- Designed specifically for RockBoard pedalboards.
- No additional drill holes are required for installation.
