Rowenta Perfect Steam Steam Station User Guide
Quick guide for the Rowenta Perfect Steam station. Learn how to set up, use, maintain, and troubleshoot your steam generator iron for professional results.
Quick answers from the manual
Quick answer
- The Rowenta Perfect Steam station is a steam generator iron. To maintain it, rinse the scale collector or boiler every 6 months or 25 uses after allowing the unit to cool for at least 2 hours. p. 11, 12
Key actions
- Filling the water tank p. 9
- Descaling the boiler p. 11, 12
First start
- Prepare the station by placing it on a stable surface, filling the tank, and plugging it into a 120V outlet. p. 8, 9
Problems and fixes
Water streaks on linen
Ensure your ironing board is suitable (mesh type) to avoid condensation.
p. 13Maintenance and reset
- Press the 'Restart' button on the control panel after rinsing the collector/boiler to turn off the orange light. p. 11, 12
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 1800 Watts | Appliance wattage | p. 6 |
| Water Tank Capacity | 1.4L | Removable water tank capacity | p. 8 |
Where to find it in the PDF
- Parts Diagram p. 2
- Preparation and Use p. 3
- Maintenance p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Rowenta Perfect Steam station is designed for high-performance ironing. Important: Always allow the appliance to cool for at least 2 hours before performing any maintenance, such as rinsing the boiler or scale collector. Never use descaling products (vinegar, industrial descalers) as they can damage the appliance.

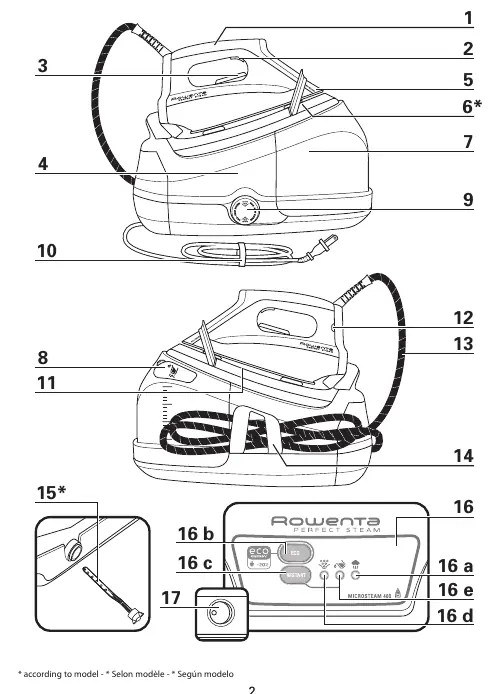

Description of the appliance
- Iron handle with steam trigger
- Iron temperature control dial
- Removable 1.4L water tank
- Control panel with indicator lights
- Scale collector or boiler rinse cap (depending on model)
- Steam cord and electric cord storage

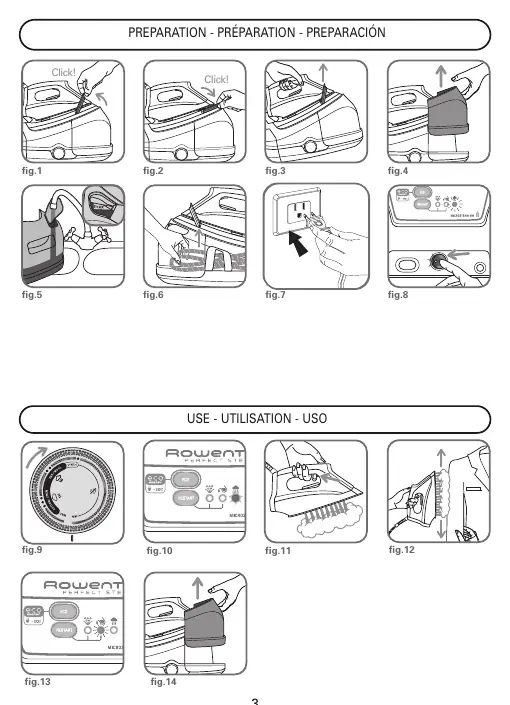

Preparation
Place the steam station on a flat, stable, and heat-resistant surface. To fill the tank, press the lock on the tank handle to remove it, fill with untreated tap water up to the Max level, and slide it back until it clicks. If your water is very hard, mix 50% tap water with 50% distilled water.
Operation
Press the On/Off switch to start. The green light will flash while the boiler heats up. When the light is continuous, the steam is ready. Use the iron temperature control dial to select the fabric type (Synthetics, Silk/Wool, Cotton/Linen). Press the steam trigger under the handle to release steam. For vertical steaming, set the temperature to max, hold the garment on a hanger, and press the steam trigger while moving the iron from top to bottom.
Maintenance and Cleaning
Cleaning: Clean the soleplate with a damp, non-abrasive sponge when cool. Clean plastic parts with a soft cloth.
Descaling: The appliance requires regular rinsing of the boiler or scale collector to maintain performance. If the "Calc-Away System" or "Boiler rinse" light flashes, the system needs rinsing. Ensure the unit is unplugged and has cooled for at least 2 hours. Remove the collector/cap, rinse it under running water, or fill the boiler with 1/4 liter of water, shake, and empty it into a sink. Press the "Restart" button after the next use to turn off the indicator light.
Troubleshooting
If the steam station does not switch on, check the power connection. If water leaks from the soleplate, ensure the iron is hot enough before using steam. If there is no steam, check if the water tank is empty or not properly fitted.
Practical help
Common problems
Steam station does not switch on
Check that the appliance is correctly plugged in and the illuminated on/off switch is pressed.
Water runs through soleplate holes
Wait for the thermostat light to go out before activating steam; adjust steam frequency to match temperature setting.
White streaks from soleplate
Boiler has scale buildup; rinse the collector or boiler as instructed.
No steam or little steam
Check if the water tank is empty (red light flashing) or not correctly fitted.
Before use
- Place on a flat, stable, heat-resistant surface.
- Check water type (untreated tap water is recommended).
- Ensure the water tank is filled to the Max level.
- Unlock the iron from the base unit.
- Unwind the power and steam cords completely.
Images and diagrams
- The control panel features a 'Restart' button, 'ECO' button, and indicators for 'Steam ready', 'Water tank empty', and 'Calc-Away System'.
- The scale collector is located on the base unit and must be rinsed periodically.
Model compatibility
- Do not use water from clothes dryers, scented/softened water, or water from refrigerators/batteries.
- Use untreated tap water or a 50/50 mix with distilled water if tap water is very hard.
